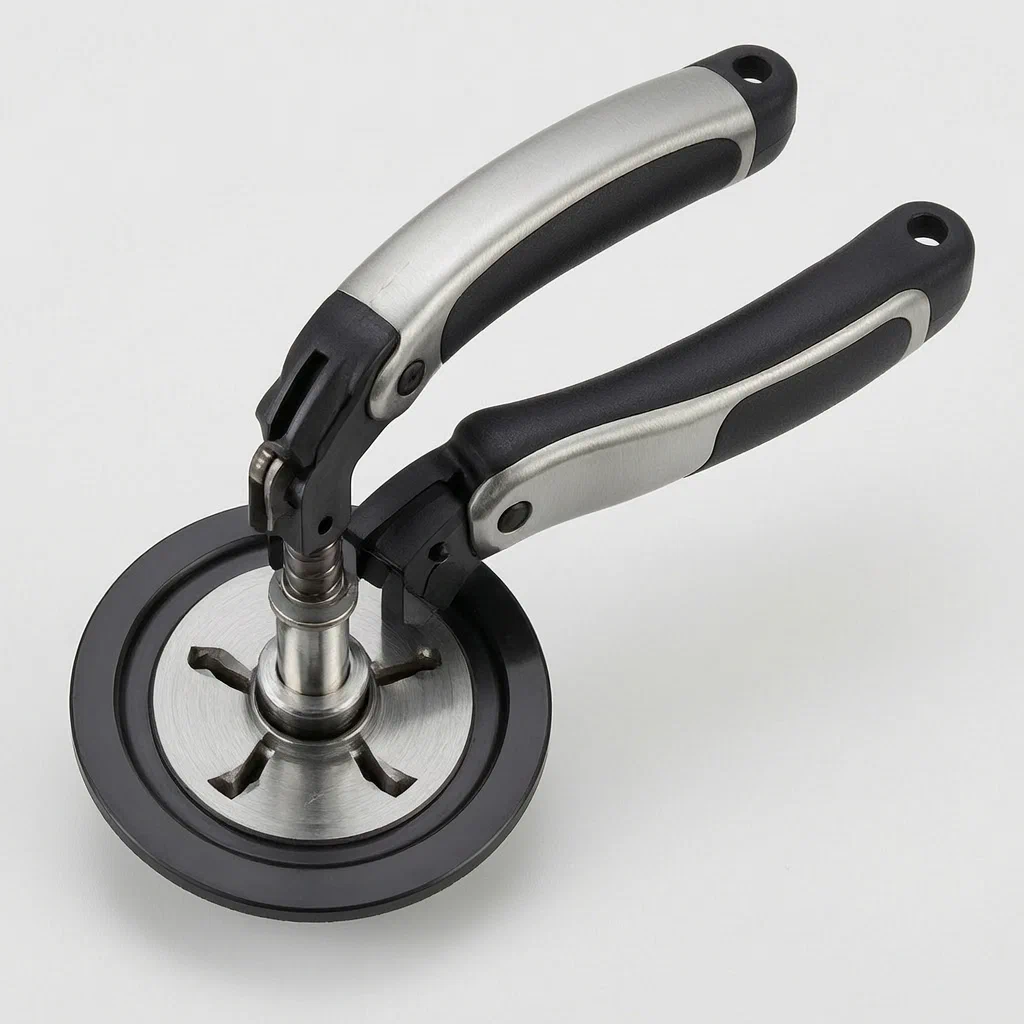

Push-Style Round Cutter with Spring-Buffered Magnetic Blade Mount

The problem

Rolling cutters used for dough, pastry, and flat food materials typically rely on a fixed axle pressed into a plastic or metal frame. When the wheel dulls or needs cleaning, removing it requires prying the frame apart or unscrewing small fasteners, which is slow and risks breaking the housing. Another common issue is impact damage. When a user pushes a rigid cutter across a board, the wheel strikes the hard surface repeatedly. Without any shock absorption, the blade edge chips or bends, shortening the tool’s life. Basic handles also lack ergonomic covers, making them slippery when hands are wet or dusty from flour.

The solution

This push-style round cutter uses a combination of magnetic retention and a spring buffer to hold the cutting wheel securely while allowing instant removal.

1. A toolframe features a handle portion (21) with an overcoat (211) fixed to both outer walls for grip. Two side support arms (22) extend from the front bottom surface.
2. A round cutter (10) is fixed in the middle of a central rotating shaft (24). The two ends of the shaft hinge into bearing connecting blocks (25), placing the cutter between the two side support arms.
3. Each side support arm has an extension groove (221) extending upward from its bottom surface. Above this, a long through groove (222) runs through the middle of the arm, with its bottom communicating with the top of the extension groove.
4. Raised items (223) run along both inner walls of the long through groove. A movable block (224) sleeves inside this groove, guided by vertical grooves (225) on its sides that fit over the raised items.
5. A buffer spring (226) sits inside the long through groove. Its upper end presses against the top surface of the groove, and its lower end presses against the top surface of the movable block.
6. The movable block is a permanent magnetic iron block. Its bottom surface has an arc groove (227). The bearing connecting block sleeves into this arc groove and is held by magnetic adsorption.
7. A spacing bulb plunger (252) bolts to the side wall of the extension groove. Its steel ball nests into a spacing elongated slot (251) on the side wall of the bearing connecting block.

Who it is for

• Kitchenware brands expanding their baking and pastry tool lines with a cutter that offers quick blade swaps for retail customers.
• Amazon private-label sellers sourcing hand-held food prep tools that stand out through visible mechanical features like the magnetic mount and spring buffer.
• Commercial bakery suppliers needing durable rolling cutters where staff frequently change wheels between dough types and sanitation cycles.
• Wholesalers of home goods looking for kitchen gadgets with multiple wheel profiles, such as zigzag or straight shear edges, packed under one SKU family.

How it works

The main parts

Operating steps

1. Assembly: Insert the bearing connecting block (25) of the round cutter (10) upward into the extension groove (221). The block reaches the movable block (224), which magnetically adsorbs it into the arc groove (227). Simultaneously, the steel ball of the spacing bulb plunger (252) nests into the spacing elongated slot (251).
2. Cutting: Grip the overcoat (211) on the handle portion (21) and push the tool forward. The round cutter (10) rolls across the food material.
3. Shock absorption: As downward pressure is applied, the buffer spring (226) compresses between the top of the long through groove (222) and the movable block (224), preventing rigid impact on the blade.
4. Disassembly: Pull the round cutter (10) downward with force. The movable block (224) separates from the bearing connecting block (25), breaking the magnetic hold. The steel ball exits the spacing elongated slot (251), allowing the entire cutter assembly to drop free.

Applications

Pizza and flatbread dough

Pizzeria staff and home bakers use round cutters to divide rolled dough before baking. The buffer spring prevents the wheel from striking the cutting board too hard, keeping the edge sharp longer during repetitive batch work.

Pastry lattice strips

When cutting butter-rich pastry dough for pie lattices, bakers swap between straight and zigzag wheels. The magnetic mount allows changing the wheel profile without washing small screws or using tools.

Homemade pasta sheets

Users rolling out pasta sheets cut noodles or ravioli borders by pushing the cutter along a guide. The overcoat on the handle provides a firm grip even when hands are covered in flour, preventing slips.

Craft and fondant shaping

Cake decorators cut fondant or gum paste into ribbons and shapes. The ability to detach the wheel easily means the cutter can be washed thoroughly between colors without water pooling inside a fixed axle housing.

Where it is less suitable

• Heavy root vegetables or thick meats - the tool is designed for rolling across flat food materials; chopping hard produce requires a different blade geometry and heavier frame.
• Dishwasher-only environments - the permanent magnetic iron block and exposed buffer spring may require specific material selections for commercial dishwashers, to be confirmed in design.
