Hard-Shell Luggage Case with a Built-In Lift Table

The problem

Travelers who need to work on the road often lack a stable surface. Balancing a laptop on a suitcase lid or a bed is awkward, and airport seating rarely offers enough desk space. Hard-shell luggage provides protection but wastes its rigid structure when closed, offering no built-in workspace. Adding a folding table to a bag usually requires external brackets that snag on conveyor belts or add bulk to the profile.

The solution

This design turns the luggage shell itself into the support for a hidden desk.

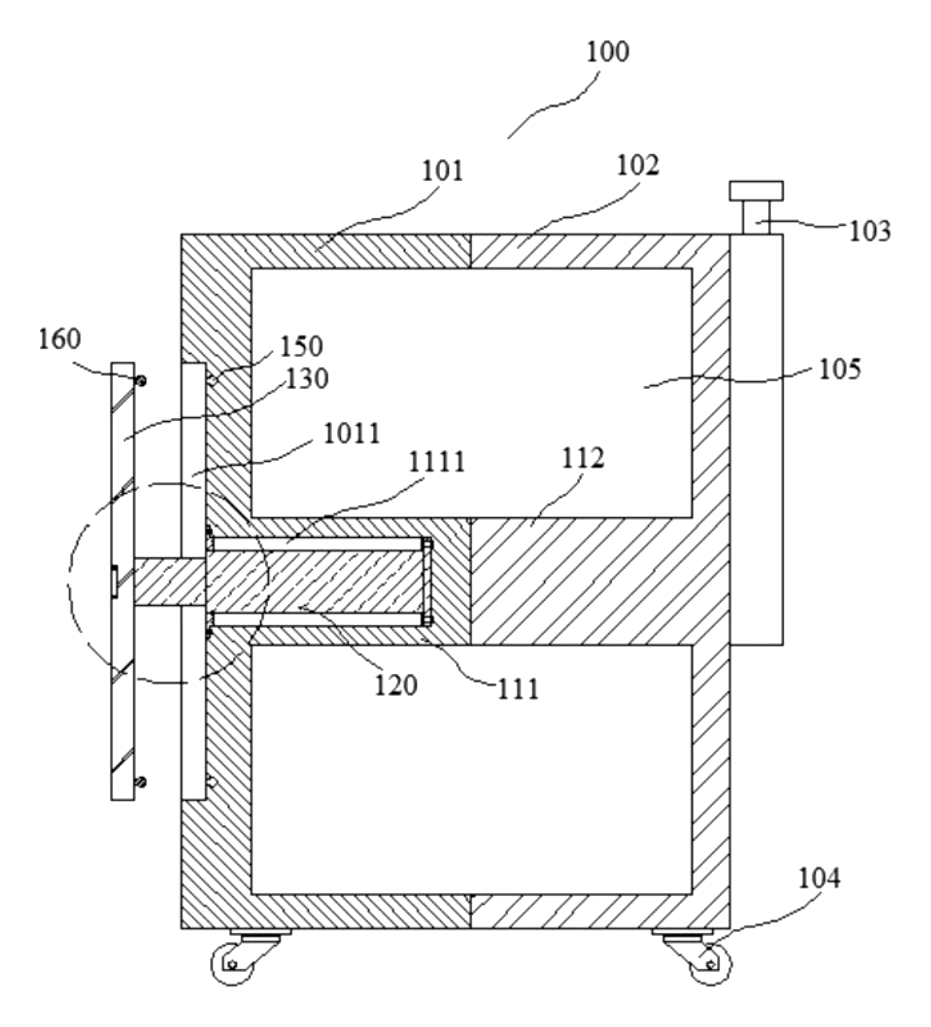

1. The cabinet (100) is a hard-shell case made of a case lid (101) and a block (base, 102) that enclose an accommodating chamber (105).
2. Inside, a first support column (111) and a second support column (112) press against each other, with their outer ends connected to the inner sidewalls of the lid and the base, bracing the shell.
3. The first support column contains an installation cavity (1111). At the opening of this cavity, facing the outside of the lid, a card slot (1011) is formed.
4. A telescopic rod (120) sits inside the cavity and extends outward along its axis.

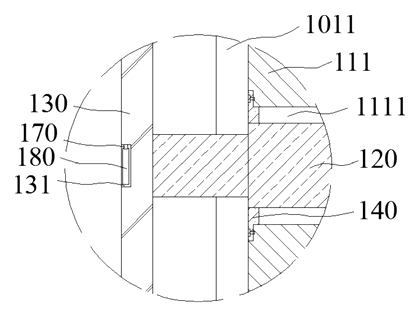

5. A desktop (130) is mounted on the outer end of the rod and engages the card slot by clamping when fully extended.
6. A fixed ring (140) at the cavity opening surrounds the rod shaft to improve stability during extension.

Who it is for

• Luggage brands expanding their hard-shell lines with a functional workspace feature for business travelers.
• Wholesalers and distributors supplying corporate travel gear to companies that equip mobile employees.
• Amazon sellers targeting digital nomads and remote workers who buy specialty suitcases online.
• OEM luggage factories looking for a documented mechanical concept to develop into a production model.

How it works

The main parts

Operating steps

1. Open the case to access the interior. The first and second support columns brace the lid and base.
2. Extend the telescopic rod from the installation cavity inside the first support column. The fixed ring guides the shaft.
3. Position the desktop so that the fixture blocks on its inner circumference align with the slots in the card slot on the lid exterior.

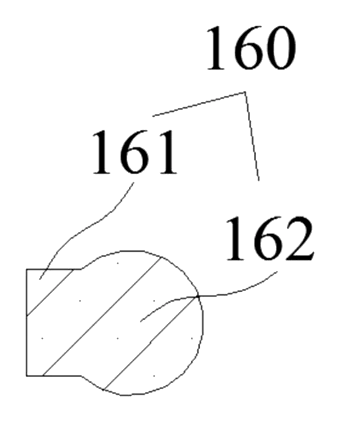

4. Clamp the desktop into the card slot. The spherical heads of the fixture blocks seat into the matching slots, preventing the desktop from falling off.
5. Use the pull ring seated in the mounting hole to adjust or release the desktop when packing up.
6. Retract the rod back into the cavity and close the lid for transport on the universal wheels.

Applications

Business trips and hotel stays

Business travelers often need a temporary desk in hotel rooms where furniture is limited. The lift table extends directly from the suitcase lid, providing a flat surface for a laptop or documents without taking up extra floor space.

Airport lounges and transit waiting

During long layovers, finding a quiet spot with a table is difficult. A traveler can open the luggage case, extend the telescopic rod, and clamp the desktop into place to work or eat while waiting at the gate.

Mobile sales representatives

Field sales staff carry samples and tablets between client sites. The built-in table allows them to set up a presentation surface quickly from their rolling case, using the hard shell as a stable base.

Remote workers and digital nomads

People working from cafes, co-working spaces, or parks benefit from a personal desk that travels inside their luggage. The fixture blocks keep the surface locked even if the case is placed on uneven ground.

Trade shows and exhibitions

Exhibitors setting up small booths can use the luggage table as a quick registration or product display surface before their main booth furniture arrives. The universal wheels make it easy to position the case exactly where needed.

Where it is less suitable

• Soft-side duffel bags - the design relies on a hard-shell cabinet and internal support columns to bear the table load.
• Checked baggage only - airlines may restrict protruding mechanisms or added weight; dimensions are to be confirmed in design.
• Heavy industrial equipment transport - the lift table is intended for light office items like laptops, not heavy machinery.
