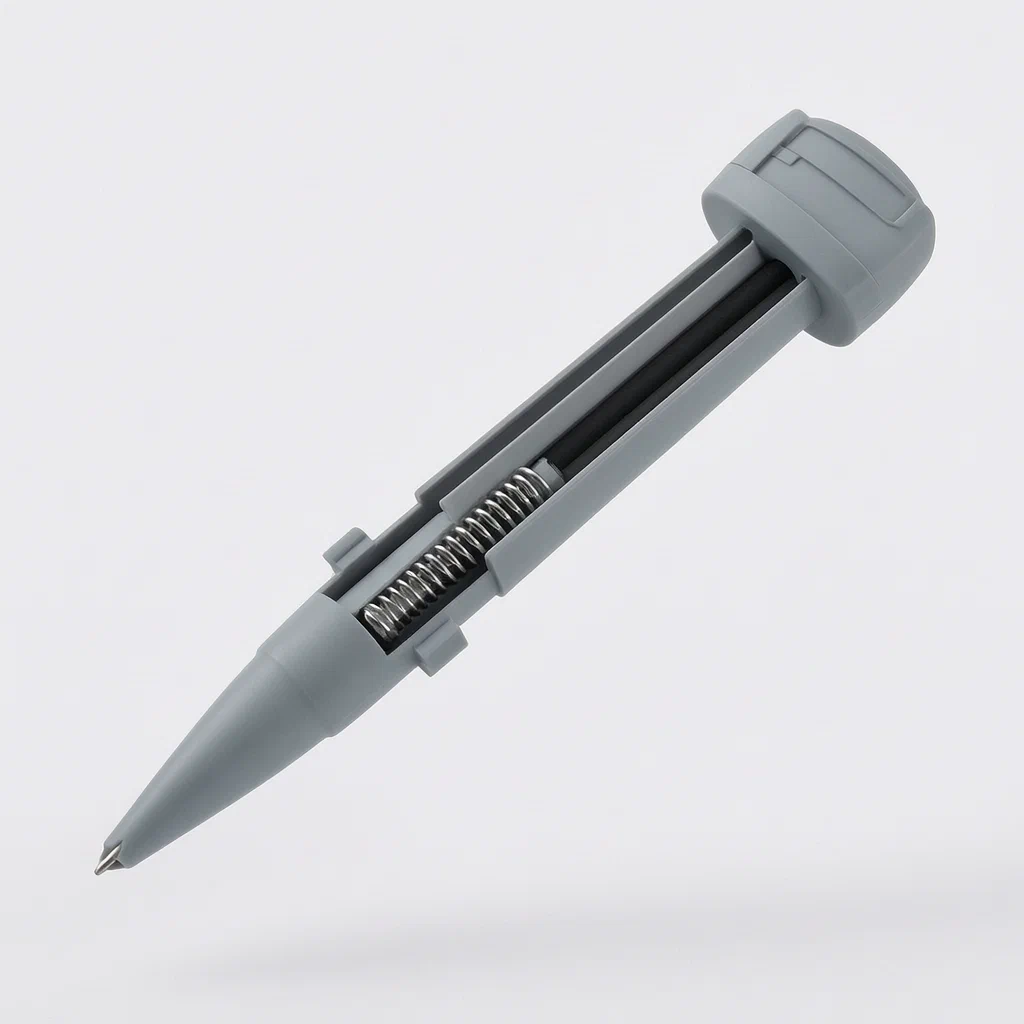

Pencil Extension Sleeve with Spring-Loaded Grip and Built-in Sharpener

The problem

As pencils wear down, they become too short to hold comfortably. Users often discard them prematurely, wasting graphite and wood. Standard extensions exist but often fail to grip irregular pencil shapes like triangles or hexagons securely, leading to wobbling or slipping during writing. Additionally, many extensions lack a way to sharpen the pencil once it is inserted, requiring separate tools and interrupting the workflow.

The solution

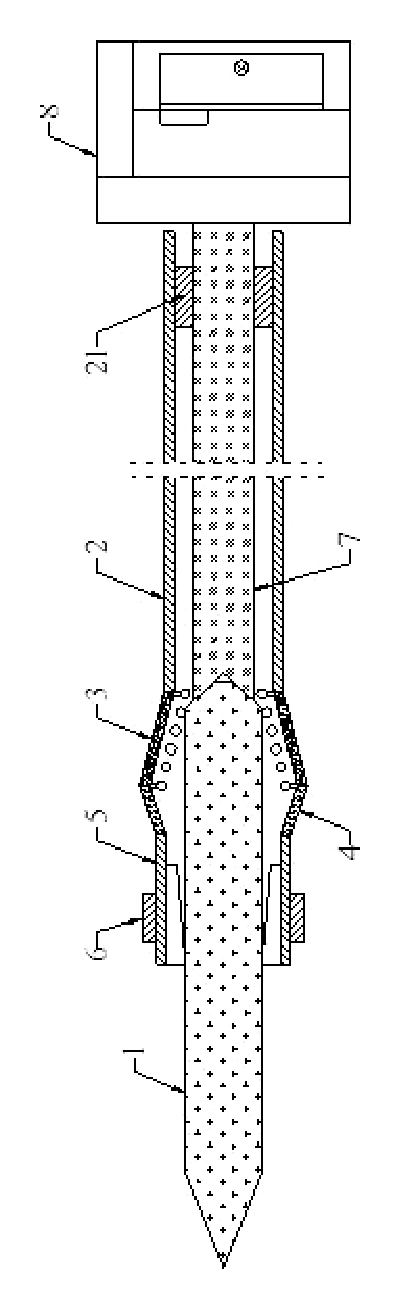

1. A circular tube-shaped body serves as the main housing. Inside, two tapered pipes are arranged end-to-end, creating a channel for the pencil.
2. A split sleeve fits over the pencil shaft. It has multiple diagonal slits on one side and vertical slits on the other, allowing it to compress around different pencil diameters.
3. Inside the sleeve, a rubber tube with a conical inner wall provides friction. The rubber is thicker at the head end than the tail, ensuring a tight fit when compressed.
4. Volute springs are housed within the first tapered pipe, connected by rods to the pipe walls. These springs push the sleeve forward, maintaining constant pressure on the pencil.
5. A support holder sits at the rear. It has a conical pit that matches the pencil’s shaped tail (if modified) or simply supports the end.
6. Integrated into the support holder is a pencil sharpener, positioned at the very tail end of the device.

Who it is for

• School supply brands looking for an accessory that reduces waste and teaches sustainability.
• Office stationery manufacturers wanting to add value to their pencil sets with a reusable tool.
• Art supply retailers serving students who need precise control over short charcoal or graphite pencils.
• Promotional product companies seeking functional, low-cost giveaways for educational campaigns.

How it works

The main parts

Operating steps

1. Insert the pencil: Slide the short pencil through the opening of the body until the tip protrudes slightly from the front.
2. Secure the grip: The split sleeve compresses around the pencil shaft. The rubber lining bites into the surface, preventing rotation or slipping.
3. Engage the spring: The volute springs in the tapered pipes push the sleeve assembly forward, ensuring the pencil stays aligned with the central axis.
4. Write normally: Hold the outer body of the extension tool instead of the short pencil. The added length restores proper leverage.
5. Sharpen as needed: When the lead becomes dull, rotate the entire tool against the built-in sharpener located at the tail end.

Applications

Elementary School Classrooms

Teachers can distribute these tools to students to save money on frequent pencil replacements. The robust grip handles the rough handling common in young hands, and the built-in sharpener keeps desks cleaner by containing shavings if designed with a catch (though the patent focuses on the mechanism).

Drafting and Technical Drawing

Draftsmen often use specialized pencils with fixed lengths. This extender allows for longer reach in large-scale drawings without needing custom-made long pencils. The stability provided by the spring system prevents line wavering.

Artist Studios

Artists using charcoal sticks or soft graphite pencils can extend them for better control over shading areas. The universal grip accommodates the varying diameters of art supplies, making it versatile across media types.

Eco-Friendly Promotions

Companies promoting sustainability can brand these extenders as “Zero-Waste Writing Tools.” They appeal to environmentally conscious consumers who want to reduce landfill waste from discarded short pencils.

Where it is less suitable

• Very thick pencils: If the pencil diameter exceeds the maximum expansion of the split sleeve, it will not fit.
• Mechanical pencils: This is designed for wooden-cased pencils; mechanical pencils have different structural requirements.
• Left-handed writers with aggressive pressure: While stable, extreme lateral force might cause the sleeve to shift if the rubber degrades over time.
