Intelligent Notebook Computer Support Bag with Integrated Stand

The problem

Business travelers and remote workers often lack a proper desk. Placing a laptop on bare thighs restricts airflow, causing the device to overheat and reducing its lifespan. It also forces the user into poor ergonomic postures, leading to neck and back strain. Traditional laptop stands are separate bulky items that must be packed alongside the computer, taking up valuable luggage space. Existing bags with pockets do not provide structural support, leaving the user without a stable platform for typing or viewing content during transit or in tight spaces like airplane seats or trains.

The solution

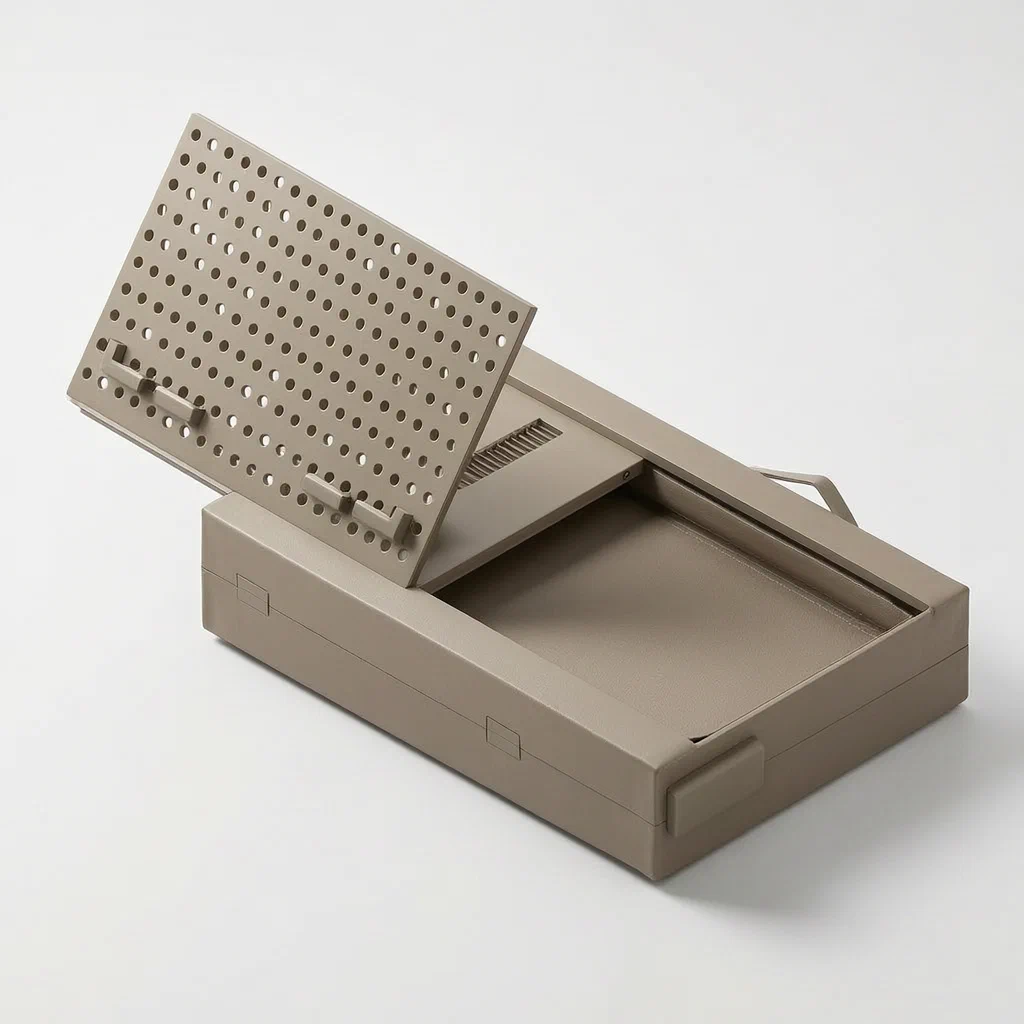

This design integrates a mechanical stand directly into the bag structure.

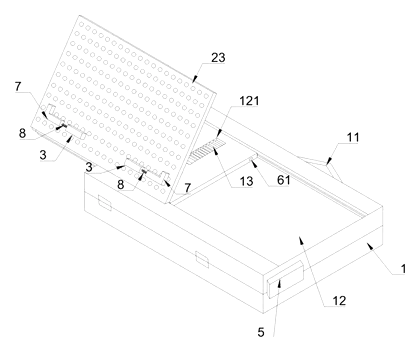

1. Bag Body (1): The main carrier features a hand ring (11) fixed at the top for easy lifting.

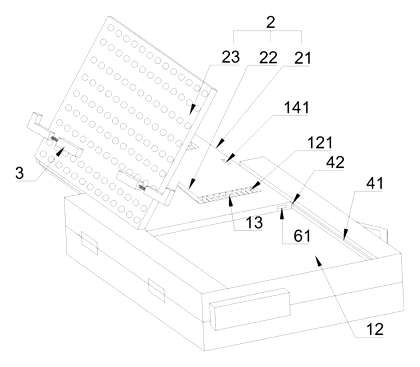

2. Support Assembly (2): Housed in a recessed groove (12), this assembly consists of three linked parts: a support plate (21), a bracket (22), and a flip plate (23).
3. Deployment: The support plate remains horizontal. The bracket slides out from a slot in the support plate. The flip plate hinges upward. Together, they form a triangular structure.
4. Adjustment: The bracket engages with locking slots (13) along the length of the support plate. Moving the bracket to different slots changes the angle between the support plate and the flip plate.
5. Securing: A snap block (14) on the flip plate fits into a snap hole (141) on the support plate to lock the stand flat when folded.
6. Storage: Sliders (42) on the sides of the support plate run along rails (41) inside the bag’s groove, allowing the whole unit to retract neatly.

Who it is for

• Corporate Travel Brands: Companies looking to differentiate their business bags by adding functional hardware that eliminates the need for separate accessories.
• E-commerce Sellers (Amazon/DTC): Sellers targeting the “work from anywhere” niche who want a product with a clear visual demonstration of value (the unfolding stand).
• University Bookstore Suppliers: Institutions seeking durable, multi-functional bags for students who study in libraries or cafes where desks may be scarce or uncomfortable.
• Bulk Promotional Buyers: Firms ordering branded gifts for employees, where the added utility of a built-in stand justifies a higher price point than a standard tote.

How it works

The main parts

Operating Steps

1. Slide Out: Pull the support assembly out of the bag’s accommodation groove using the sliders.
2. Unfold: Lift the flip plate. Extend the bracket until it reaches the desired slot.
3. Lock Angle: Click the end of the bracket into one of the locking slots (13) on the support plate. This sets the specific viewing angle.
4. Place Device: Rest the laptop on the flip plate against the pillars (3). The bottom of the laptop sits flush against the upper surface of the flip plate.
5. Fold Up: To pack, remove the bracket from the slot, fold the flip plate down onto the support plate (securing with snap block 14), and slide the flat unit back into the groove.

Applications

Airplane and Train Travel

Passengers can deploy the stand on tray tables or directly on their laps. The triangular structure provides stability on vibrating surfaces, preventing the laptop from tipping over during turbulence or train movement.

Café and Co-working Spaces

Users can set up an ergonomic workstation instantly upon arrival. The adjustable angles allow for better screen visibility relative to ambient light sources, reducing glare compared to laying the laptop flat.

Outdoor Field Work

Technicians or inspectors working outdoors can place the bag on uneven ground. The wide base of the support plate ensures the stand remains upright even if the bag itself is slightly tilted, keeping the device accessible.

Student Study Sessions

In crowded libraries where individual desks are limited, students can use the bag as a personal lap-desk. The built-in nature means nothing is forgotten or left behind when packing up quickly.

Where it is less suitable

• Heavy Desktop Replacements: The mechanical strength of plastic or thin metal brackets is optimized for standard laptops (up to about 15-16 inches). Larger gaming rigs may exceed the load capacity.
• Rigid Hard-Shell Requirements: This design typically uses flexible fabric for the bag body. Users needing waterproof hard-shell cases for extreme weather may find the soft-body integration less protective.
• Fixed Height Needs: If a user requires a very high standing desk configuration, this low-profile lap/seat stand will not provide sufficient elevation.
