Handheld Automatic Bubble Tube with Mechanical Liquid Feed

The problem

Standard bubble toys require either battery-powered fans or repeated manual dipping of a wand into a small reservoir. Battery-operated models add weight, cost, and electronic waste, while manual dipping interrupts play and often spills liquid. Furthermore, most simple tubes only work when held upright; tilting them cuts off the liquid supply or floods the nozzle, limiting how children can move while playing.

The solution

This design solves those issues by linking the liquid feed, airflow, and nozzle clearing to a single mechanical action: rotating the assembly around the handle’s axis.

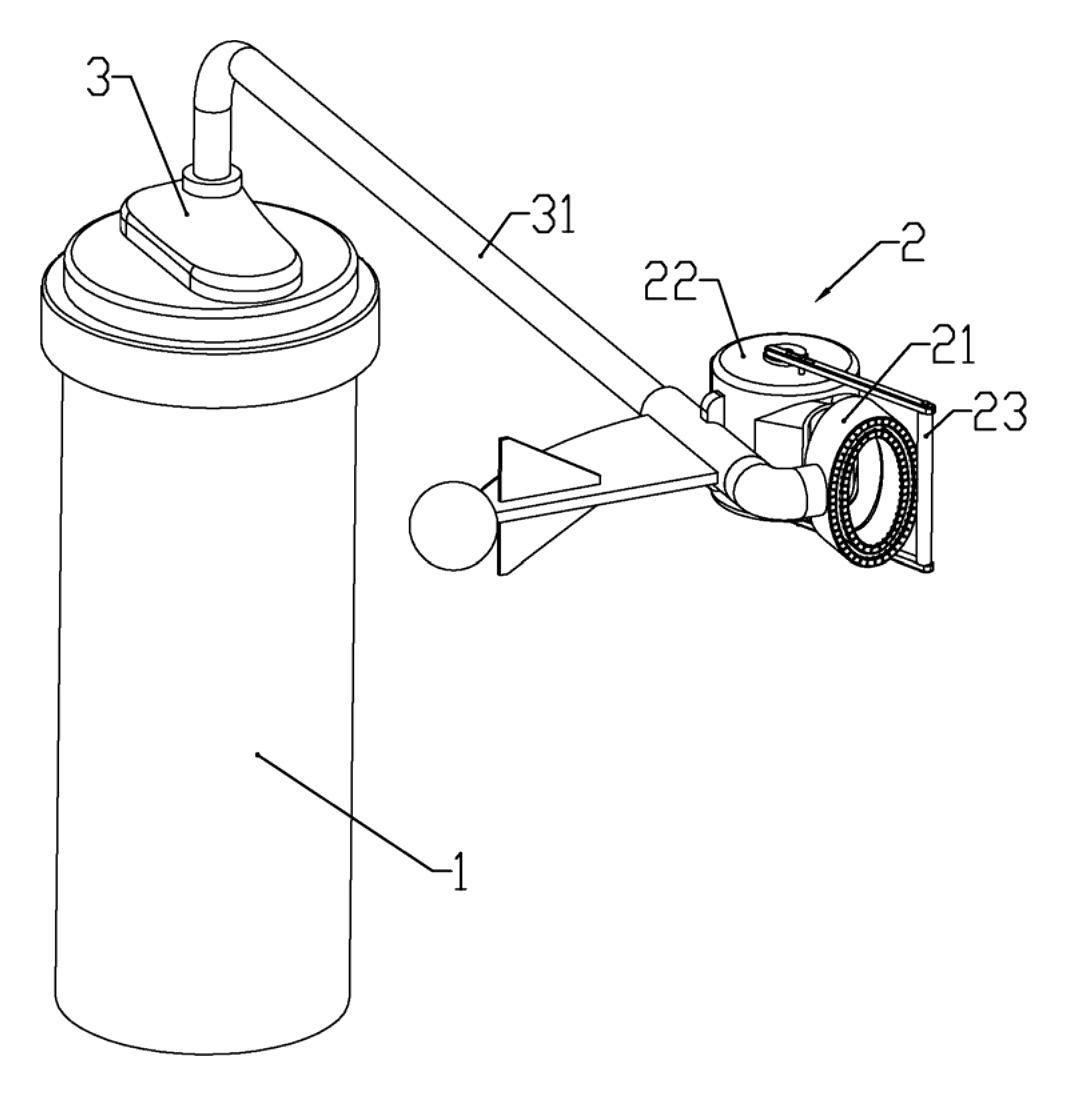

1. A liquid storage handle (1) contains a flexible liquid storage bag that collapses as liquid is used, letting the toy operate at any angle.

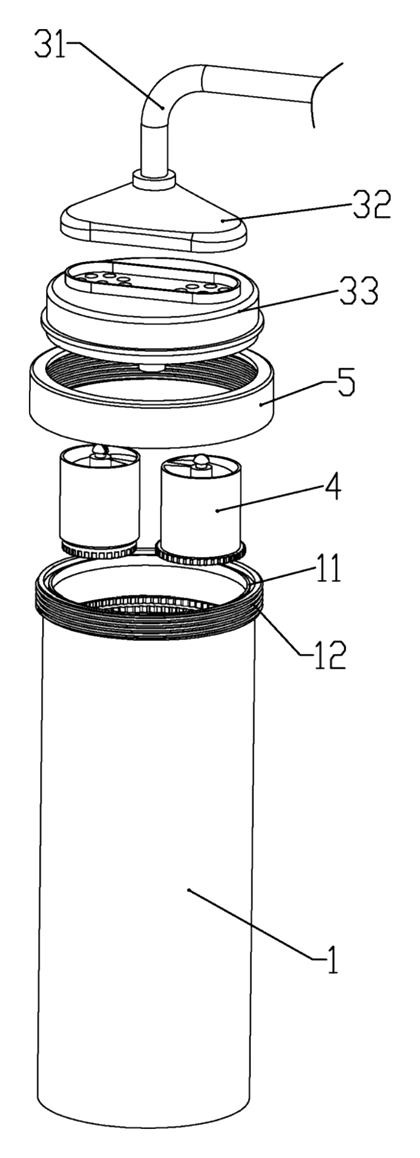

2. A connecting cover (3) sits rotatably on top of the handle. It includes a rotating cover (33) sealed to the handle with a sealing ring (11), and a liquid collecting cover (32) joined by ultrasonic welding.
3. A connecting pipe (31) extends from the cover, carrying liquid upward.
4. Inside the handle, a spiral liquid guide rod with a spiral blade engages an inner ratchet wheel (on the handle wall) via a ratchet wheel at its base. This one-way mechanism pushes liquid into the connecting pipe only when turned in the correct direction, preventing backflow.
5. At the end of the pipe, a bubble assembly (2) features a bubble outlet nozzle (21), an air guide assembly (22), and a film scraping rod (23).
6. The air guide assembly uses a windward fan (222) inside an air guide shell (2212). Air enters an air inlet (22122) positioned eccentrically to the fan, forcing it to spin in one direction and push air out through an air outlet pipe (22121) toward the nozzle.
7. A balance end (2213) with a balance plate (22131), balance wing plate (22132), and balance block (22133) sits opposite the nozzle, keeping the rotation smooth.

Who it is for

• Toy brands and wholesalers looking for a battery-free bubble product that reduces electronic components and packaging costs.
• Amazon sellers and e-commerce retailers targeting parents who prefer screen-free, mechanically driven outdoor toys for home and club use.
• Promotional product suppliers needing a customizable, low-maintenance item for events, parks, or retail giveaways.
• Educational toy distributors sourcing items that demonstrate basic mechanical principles like ratchets and spirals during teaching use.

How it works

The main parts

Operating steps

1. Fill the handle with bubble solution, sealing the flexible bag inside.
2. Rotate the connecting pipe around the handle’s axis.
3. The ratchet engages, turning the spiral liquid guide rod to push liquid up through the through hole into the connecting pipe. The one-way ratchet prevents liquid from falling back.
4. The spinning motion forces air into the air inlet of the air guide shell, pushing the windward fan to rotate unidirectionally.
5. Air exits the air outlet pipe across the bubble outlet nozzle, inflating the delivered liquid into bubbles.
6. The windward fan turns the rotary discs (223), which move the film scraping rod along its guide groove (2311) to wipe the nozzle bottom, clearing old film for the next bubble.
7. The balance end keeps the heavy nozzle side from dragging, ensuring steady rotation at any angle.

Applications

Backyard and park play

Children can run and swing the tube freely because the flexible bag allows operation at any angle. The mechanical drive means there are no batteries to die mid-game.

Birthday parties and events

Hosts can hand these out without worrying about charging stations or replacing cells. Continuous rotation produces a steady stream of bubbles for group entertainment.

Board-game clubs and teaching use

Educators can use the toy to demonstrate how ratchets, spiral blades, and aerodynamic balance work in a physical, hands-on format during science lessons.

Retail impulse aisles

Wholesalers can stock a lightweight, self-contained unit that requires no electronic compliance testing beyond standard toy rules, simplifying shelf placement.

Where it is less suitable

• Stationary tabletop bubble machines - this design requires manual rotation by the user; it is not meant to sit flat and run automatically.
• High-volume commercial foam generation - the output is designed for individual play, not industrial or stage-effect foam volumes.
• Infant teething products - the moving mechanical parts and bubble liquid make it strictly a toy for older children under supervision.
