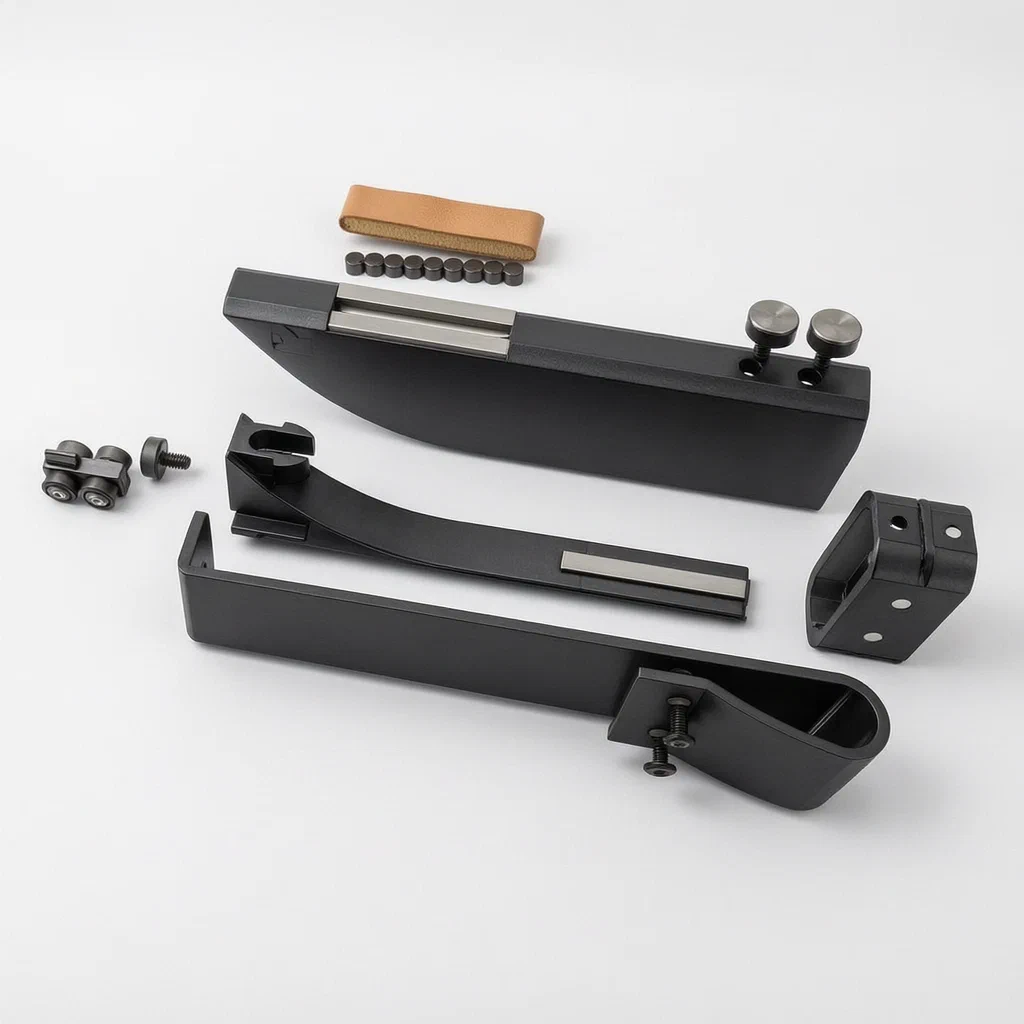

Portable Knife Sharpening Sleeve with Integrated Magnetic Holder and Strop

The problem

Maintaining a sharp edge on knives often requires multiple separate items: the knife itself, a whetstone or pull-through sharpener, and a leather strop for final polishing. Carrying these individually is cumbersome, prone to loss, and makes it difficult to maintain a consistent sharpening angle without specialized jigs. Users frequently struggle to keep the blade steady during sharpening, leading to uneven edges or safety hazards from slipping tools.

The solution

This patent describes a unified portable sleeve that stores the knife and its maintenance tools together.

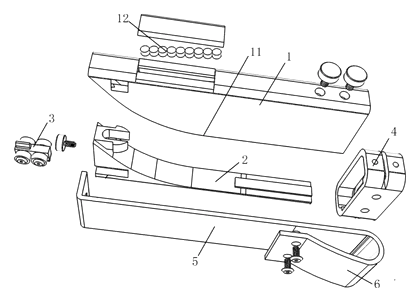

1. The knife sleeve (1) acts as the main carrier. Near the blade edge position, it features a sharpening slideway (11) that runs parallel to the blade direction.
2. Inside the sleeve, a magnetic fixing mechanism (12) is positioned near the spine of the knife. When inserted, this mechanism snaps onto the steel blade spine, holding the knife rigidly in place.

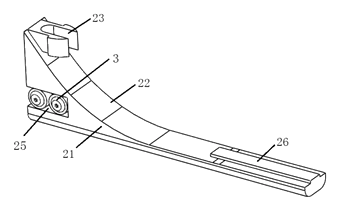

3. A mounting base (2) attaches to the slideway. This base houses the knife sharpener (3). Because the knife is magnetically fixed and aligned by the slideway, the user can simply run the sharpener along the track to polish the edge at a fixed angle.
4. An integrated strop plate (5), made of cowhide, connects to the side of the mounting base via a fixing plate (51) and extends to the sleeve handle (6). This allows the user to smooth the blade directly on the flat surface of the attached leather after sharpening.
5. A fastening piece (4) wraps around the sleeve, base, and strop to lock everything into a compact bundle for carrying.

Who it is for

• Outdoor enthusiasts and campers who need lightweight, multi-functional gear that reduces pack weight and clutter.
• Professional chefs and kitchen staff who require quick touch-ups between tasks without leaving the workstation for separate tools.
• Toolbox organizers and DIY hobbyists looking for compact solutions to maintain utility knives and chisels.
• E-commerce brands seeking differentiated, space-saving knife accessories for Amazon or retail listings.

How it works

The main parts

Operating steps

1. Insert the knife: Place the blade into the sleeve’s cavity. The magnets (12) attract the spine, centering the edge within the slideway (11).
2. Attach the sharpener: Slide the mounting base (2) onto the slideway. The base locks into place using a buckle (23) and bayonet (24) interface.
3. Sharpen: Move the sharpener (3) along the slideway. The magnetic hold ensures the angle remains constant relative to the stone.
4. Strop: Flip or utilize the attached cowhide plate (5). Run the blade lightly across the flat leather surface to remove burrs and polish the edge.
5. Store: Wrap the fastening piece (4) over the handle and base to keep the tools secured during travel.

Applications

Camping and hiking kits

Backpackers benefit from the reduced bulk. Instead of packing a separate whetstone and leather strap, they carry one sleeve that doubles as a sheath. The magnetic lock prevents the knife from rattling against the sharpener during movement.

Professional culinary prep

Chefs working in tight commercial kitchens can store their primary chef’s knife in this sleeve. Quick touch-ups can be performed right at the station using the integrated slideway, maintaining workflow efficiency without retrieving large bench stones.

Woodworking and carving

Craftsmen often need to maintain small chisels or carving knives. The guided slideway provides a stable platform for sharpening narrow blades that might otherwise slip on freehand stones, while the strop offers immediate finishing capability.

Retail display and gifting

The compact, self-contained nature makes it ideal for gift sets. Brands can package a knife with this functional sleeve, offering added value through the included maintenance system rather than just a simple cover.

Where it is less suitable

• Large fixed-blade hunting knives: The sleeve dimensions are optimized for standard kitchen or utility profiles; very wide blades may not fit the magnetic spacing.
• High-volume industrial sharpening: This is a manual, low-speed maintenance tool, not a powered grinding machine for factory lines.
• Ceramic knives: The magnetic fixing mechanism relies on ferrous metal attraction and will not hold ceramic blades securely.
