Silicone Garden Digging Glove with Modular Blade and Tool Connectors

The problem

Standard garden gloves require users to carry separate trowels, knives, and planting tools, then constantly switch between wearing and removing them. Accessories on existing gloves are often fixed, cannot be changed for different tasks, and do not allow quick soil planing or targeted planting. When digging or transplanting small seedlings, loose soil falls away from conventional scoops, making precise placement difficult.

The solution

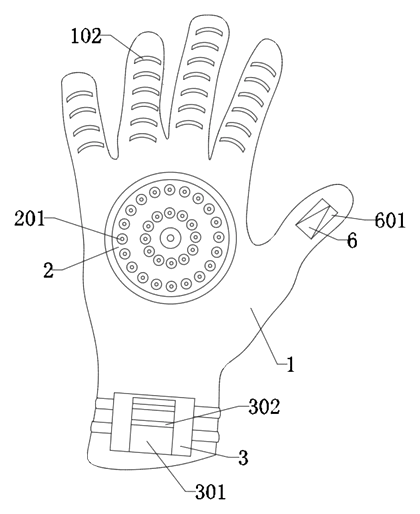

1. The main body (1) is a silica gel glove with uniformly spaced bases (101) and arc-shaped wedge-section scrapers (102) at the fingertips.

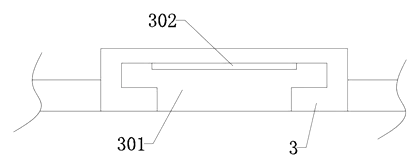

2. A rectangular mounting piece (3) sits behind the fingers, connected by bands, with a T-shaped mounting groove (301) and two internal limiting pieces (302).
3. A circular top piece (2) of hard rubber with hemispherical top blocks (201) sits at the middle front end.

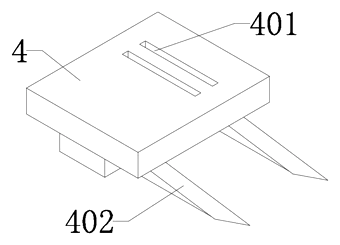

4. A splicing block (4) embeds into the T-groove; its clamping grooves (401) lock onto the limiting pieces, and two inclined bed knives (402) protrude below for soil planing.
5. Alternatively, a connector (5) inserts into the same groove; its round tubular insert (501) contains annular wedge-shaped rubber stop blocks (502) that grip soil inside the tube.
6. A silica gel mounting plate (6) with two cutting pieces (601) attaches at the thumb position.
7. A silica gel sealing ring (7) bonds inside the glove bottom.

Who it is for

• Garden tool brands seeking an integrated wearable dig-and-plant accessory line beyond standard gloves.
• Commercial landscapers who need rapid soil planing and seedling handling without frequent tool changes.
• Home gardening retailers offering multi-function silicone gloves as a premium SKU over basic nitrile pairs.
• Protective equipment manufacturers expanding from sports gear into modular silicone gardening products.

How it works

The main parts

Swapping tools and digging

1. To plane soil: align the splicing block (4) with the T-groove (301); push until limiting pieces (302) snap into clamping grooves (401); the bed knives (402) now extend below the glove for fast digging.
2. To plant seedlings: remove the block and insert the connector (5); push the tubular insert (501) into soil; earth enters the tube and contacts the rubber stop blocks (502), which fix the soil plug for lifting and transplanting.
3. Cutting: use the thumb-mounted cutting pieces (601) for trimming roots or stems.
4. Clearing: flex the fingertips so the arc scrapers (102) brush away debris.

Applications

Home vegetable beds

Gardeners can plane rows and drop seedlings using one glove instead of switching to a trowel every few seconds during weekend planting sessions.

Commercial nursery transplanting

Staff handling hundreds of small potted plants per day use the connector mode to scoop soil plugs without dropping them, reducing time lost to re-digging scattered substrate.

Landscaping root work

When clearing invasive weeds or trimming root balls, the thumb cutting pieces (601) let workers slice through fibrous material without reaching for a separate knife.

School and community gardens

Volunteers with varying skill levels benefit from the single-tool design, since fewer accessories mean less confusion about which implement goes where during group planting events.

Where it is less suitable

• Heavy clay or rocky soil – silica gel and rubber components may deform under extreme compaction forces better suited to steel-handled tools.
• Cold-climate winter gardening – the patent describes no thermal insulation; bare silicone offers limited warmth protection.
• Precision bonsai or orchid work – the tubular connector’s fixed diameter may be too large for delicate micro-transplanting tasks.
