Sunshade Fishing Hat with Replaceable Mosquito Repellent and Cooling Packs

The problem

Anglers working under direct sunlight often suffer from overheating around the head and neck, while simultaneously dealing with mosquitoes that disrupt focus and cause bites. Traditional caps offer shade but lack active cooling or integrated insect protection. Separate bug nets can obstruct vision or trap heat, and standard cooling inserts require pre-freezing, which is impractical during long trips away from power sources. There is a need for a unified headwear solution that manages temperature and pests without bulky external gear.

The solution

1. The cap body consists of an outer layer of breathable fabric and a sweat-absorbing inner layer. The visor contains a heat-insulating outer fabric wrapping an elastic support plate to maintain shape and block radiant heat.

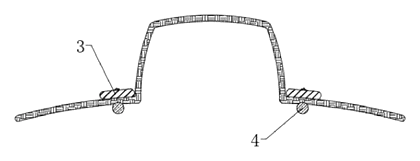

2. An annular magnetic strip is embedded inside the cap body near the base of the crown. This serves as the mounting interface for two distinct pouches.
3. The mosquito repellent pack attaches to the front/mid section of the magnetic strip. It is filled with traditional Chinese medicine herbs and features a zipper on top for refilling when the scent fades.
4. The cooling pack attaches below the visor using a magnetic conductive segment. Its core contains a protective film separating ammonium nitrate particles from surrounding water.
5. On both sides of the cooling pack are pressing protrusions made of hard material. These connect to puncture needles.
6. Each needle has an internal cavity filled with magnetic fluid. When the pack snaps onto the magnetic strip, the upward attraction aligns the needles vertically against the protective film. Pinching the protrusions drives the needles through the brittle film, releasing the chemicals to mix and cool the area.

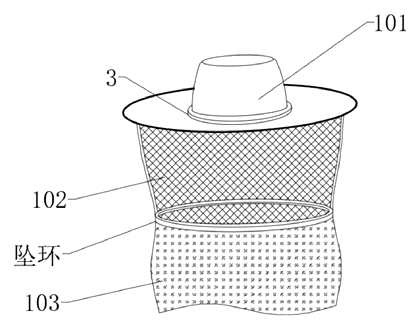

7. A mesh anti-mosquito veil is fixed below the cap body, extending down to a neck-covering gauze made of ice-silk fabric. The lower edge has an elastic band, and a weighted ring coated in fluorescent material sits between the veil and neck guard.

Who it is for

• Outdoor apparel brands seeking differentiated fishing or hunting headwear with functional accessories.
• Amazon sellers targeting niche hobbyist markets who value integrated solutions over separate gear.
• Wholesalers of fishing tackle looking to bundle consumables (repellent herbs) with durable goods (the cap).
• Event organizers for fishing tournaments or outdoor festivals needing uniform, high-comfort headgear.

How it works

The main parts

Operating Steps

1. Attachment: Snap the repellent pack and cooling pack onto the internal magnetic strip. The magnetic field aligns the needles in the cooling pack vertically.
2. Activation: When cooling is needed, pinch the side protrusions of the cooling pack. The mechanical force drives the needles through the brittle protective film.
3. Reaction: Ammonium nitrate particles fall into the water chamber. Dissolving the salt absorbs significant heat, lowering the temperature of the pack and the immediate head/neck area.
4. Protection: The mesh veil blocks insects physically. The herbal scent from the repellent pack deters them further. The neck gauze traps cooled air sinking from the head.
5. Maintenance: Open the zipper on the repellent pack to add fresh herbs. Replace the entire cooling pack once the reaction completes, as it is single-use per activation cycle.

Applications

Daytime Shore Fishing

Anglers sitting still for hours benefit from the constant herbal scent deterring mosquitoes and the ability to trigger cooling bursts during peak midday heat without leaving the spot.

Boat and Kayak Angling

On open water, wind exacerbates sun exposure and insect annoyance. The insulated visor reduces glare and heat transfer, while the secure magnetic attachments prevent packs from falling off during movement.

Insect-Prone Wetland Hunting

In marshy areas where bugs are dense, the full-face mesh veil combined with the neck guard creates a physical barrier, while the repellent pack adds a chemical layer of defense.

Night Fishing Operations

The fluorescent-coated weight ring ensures the veil stays taut and visible in low light, helping teammates locate each other while the repellent continues to function in darkness.

Where it is less suitable

• Extreme Cold Environments: The cooling mechanism is counterproductive if ambient temperatures are already low.
• High-Impact Sports: The rigid protrusions and glass-like brittle film may not withstand heavy impacts compared to standard padded helmets.
• Short-Trip Urban Use: The complexity of swapping chemical packs is unnecessary for casual city wear.
