Universal Folding Yoga Cushion with Waist Support

The problem

Practitioners performing seated yoga poses often struggle with maintaining proper posture, particularly for the lower back and waist. Without adequate support, users may slouch or strain, reducing the effectiveness of the pose. Traditionally, finding a wall or carrying a dedicated bolster or chair is necessary, which limits where one can practice. Existing folding yoga mats typically focus only on portability and storage, offering no structural support when set up for exercise. They remain flat surfaces, failing to address the need for ergonomic assistance in specific postures.

The solution

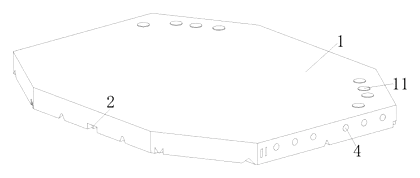

The patent describes a yoga mat body integrated with a specialized folding system. It transforms from a flat mat into a three-dimensional support structure through a series of guided bends and locks.

1. Fold in Half: The user folds the mat along the first transverse groove, causing half of the mat body to stand upright.
2. Bend the Standing Section: Using the second guide groove and the vertical guide groove within the matching area, the standing half is bent backward to form a curved surface.
3. Lock the Shape: The inclined guide grooves facilitate the final positioning. Side buttons located near the matching groove are buckled together, securing the mat in a chair-like configuration.
4. Provide Support: The resulting curved structure acts as a backrest or waist support for the user sitting on the base portion.

Who it is for

• Home Yoga Practitioners who lack space for multiple props like bolsters or chairs but want support for seated meditation or restorative poses.
• Fitness Studios looking to provide versatile equipment that serves as both a standard mat and a support aid without cluttering the room.
• Travel Yoga Enthusiasts who need a compact, all-in-one solution that adapts to different practice needs in hotel rooms or parks.
• Physical Therapy Centers requiring adjustable support tools for patients practicing core stabilization or flexibility exercises.

How it works

The main parts

Operating Steps

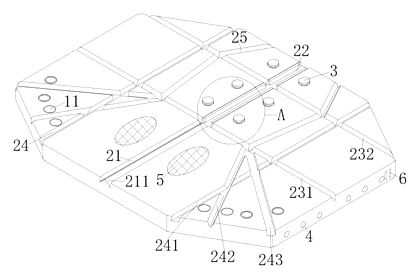

1. Lay Flat: Unfold the mat completely on the ground. The textured back ensures grip.
2. Initial Fold: Bend the mat along the first transverse groove (231). One half stands vertically.
3. Curve Formation: Apply pressure to the standing half, guiding it along the second guide groove (22) and vertical guide groove (241) to create a convex curve.

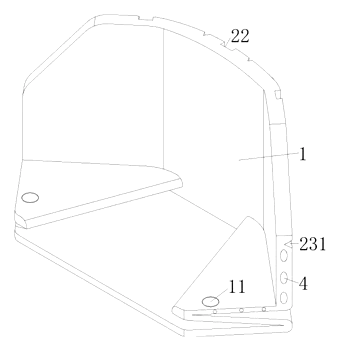

4. Final Lock: Adjust the angle using the inclined chutes (242, 243) and snap the side buttons (11) together to prevent rebound.
5. Use: Sit against the curved backrest for waist support. To revert, unbuckle buttons and unfold.

Applications

Home Meditation and Seated Poses

Users practicing Sukhasana (Easy Pose) or Padmasana (Lotus Pose) at home can use the folded mat to support their lumbar spine. This helps maintain an upright posture without relying on a wall, allowing for longer, more comfortable meditation sessions in any corner of the house.

Restorative Yoga Classes

In studio settings, instructors can utilize these cushions for restorative sequences where students need passive support. The ability to quickly transition from a flat mat to a backrest saves time between poses and reduces the need for storing numerous separate bolsters or blocks.

Travel and Outdoor Practice

For yogis traveling or practicing outdoors, this dual-functionality eliminates the need to pack extra props. A single lightweight mat can provide a stable surface for standing poses and then transform into a supportive seat for cooling-down stretches, ideal for park benches or uneven terrain.

Physical Rehabilitation

Therapists may use the adjustable support angle to assist patients in strengthening core muscles or improving flexibility. The firm yet cushioned backrest allows for controlled leaning, helping individuals regain posture alignment safely during recovery exercises.

Where it is less suitable

• High-Impact Activities: While sturdy for yoga, the folding mechanism may not withstand vigorous jumping or intense cardio exercises compared to solid rubber mats.
• Fixed Angle Needs: If a practitioner requires a perfectly rigid, non-adjustable chair, traditional furniture might be more appropriate than a flexible mat-based structure.
• Very Large Users: The dimensions of the mat limit the size of the support structure; taller or broader individuals might find the waist support insufficient or uncomfortable.
