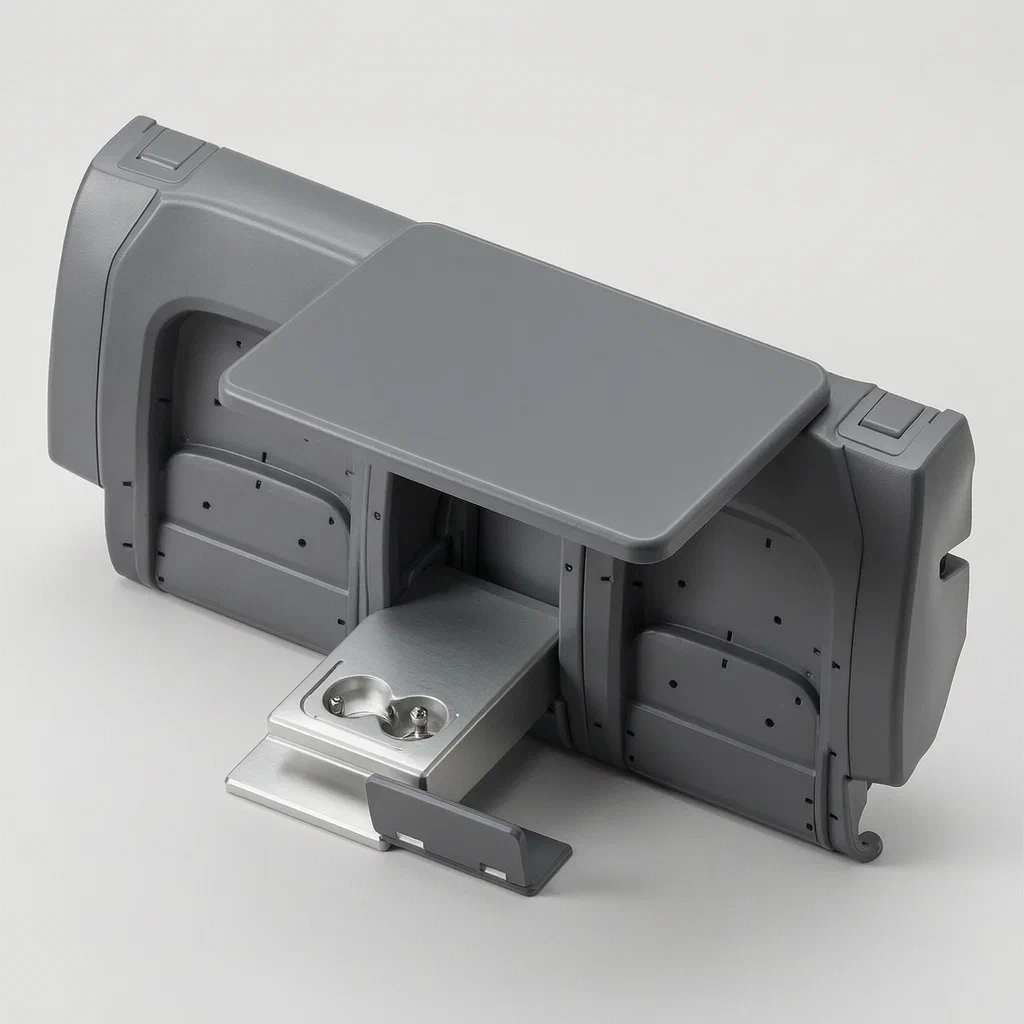

Foldable Car Seat Table with Adjustable Rotating Mechanism

The problem

Many aftermarket or integrated car seat tables struggle with reach. If the table is attached directly to the armrest and rotates around a fixed hinge, the edge of the table may not extend far enough toward the occupant’s lap or chest, especially for taller drivers. To solve this, manufacturers often make the table board significantly longer, which increases weight, cost, and the risk of hitting interior panels when folded. Alternatively, they use sliding rails or telescoping arms, which add mechanical complexity and potential rattling points. There is a need for a simple rotational system that maximizes usable surface area within a compact footprint.

The solution

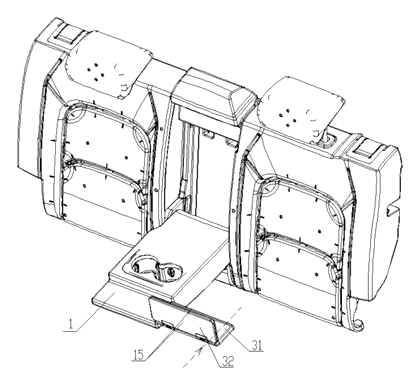

1. A table assembly (15) is mounted to a seat armrest (1) via an adjustable rotating mechanism.

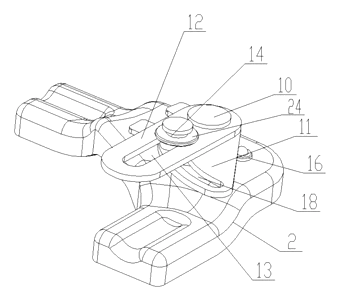

2. The mechanism consists of a rotating shaft (10) carrying a first rotating plate (11) and a second rotating plate (12).
3. A movable pin assembly (14) connects the table to these plates. It travels through an arc-shaped hole (18) in the first plate and a linear hole (13) in the second plate.
4. As the table rotates counterclockwise from its flat storage position, the pin moves along these paths, shifting the attachment point from the left side of the central axis to the right side.
5. This geometric shift causes the table to extend outward, positioning its right end beyond the vertical section of the seat center line (H-point).
6. An elastic limiting pin (16) with a spherical contact provides resistance and reset capability, locking the table in position once the desired angle is reached.

Who it is for

• Automotive Interior Suppliers: Companies developing modular seat accessories or premium trim packages that require space-saving solutions.
• RV and Van Conversion Specialists: Builders who need multi-functional surfaces in tight cabin spaces where standard drop-down trays lack reach.
• Commercial Fleet Managers: Operators of buses or shuttles looking for durable, low-maintenance table mechanisms that don’t jam easily.
• Aftermarket Accessory Brands: Sellers targeting drivers who want a stable work surface without permanent installation modifications.

How it works

The main parts

Opening and closing

1. Start State: The table assembly lies flat on the armrest. The pin is at the start of the arc and linear holes.
2. Rotate Counterclockwise: Lift and swing the table outward. The pin moves simultaneously along the arc (18) and linear (13) paths.
3. Extension Phase: As the pin reaches the tail ends of the holes, the connection point shifts to the right of the rotation axis, pushing the table further out.
4. Locking: The elastic pin (16) snaps into place against the straight edges of the rotating plate, preventing unintended horizontal rotation.
5. Storage: Rotate clockwise back to the flat position; the elastic pin releases and resets.

Applications

Driver Work Surface

Allows the driver to rest a laptop or tablet closer to their body while parked, improving ergonomics without extending the table length excessively.

Passenger Convenience

Provides a stable surface for passengers in the front seat to eat or read, positioned comfortably relative to their knees and torso.

Compact RV Interiors

Ideal for small campers where space is limited; the table folds flat when not in use, clearing the aisle or seating area quickly.

Bus and Shuttle Seating

Offers a robust, simple mechanism for public transport seats, reducing maintenance compared to complex sliding rail systems.

Where it is less suitable

• Heavy Industrial Loads: The mechanism relies on plastic bushings and thin metal plates; it is designed for light office supplies, not heavy machinery.
• Fixed Non-Rotating Seats: Requires a compatible armrest structure that can support the mounting bracket; not all seats have this feature.
• Extreme Temperatures: While materials are standard, prolonged exposure to extreme heat may affect the elasticity of the spring pin over time.
