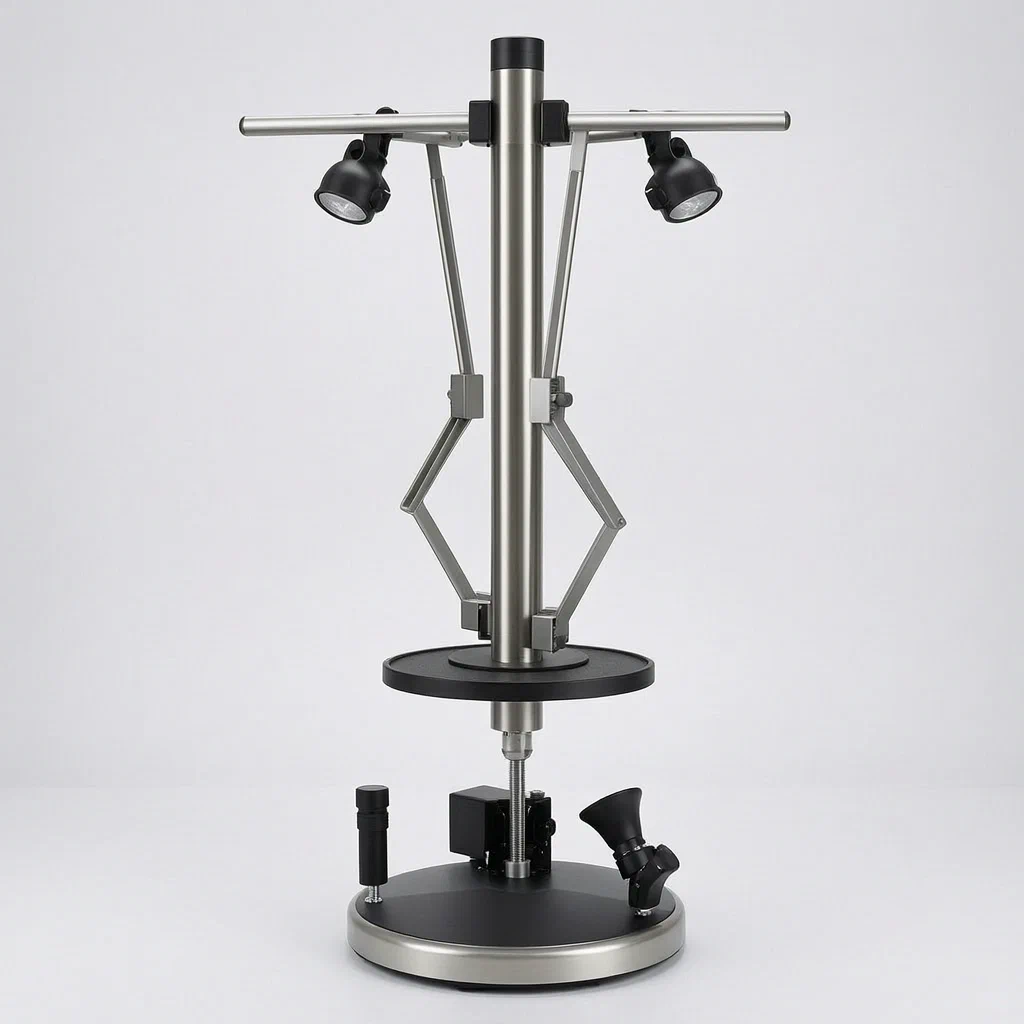

Motorized Rotating Shoe and Clothing Display Stand with Quick-Release Assembly

The problem

Traditional retail displays often struggle with three main issues. First, static racks do not allow customers to see all sides of a product, such as the heel or sole of a shoe, without physically handling it, which can lead to messy displays. Second, changing the layout or removing items for restocking usually requires unscrewing multiple bolts, making store updates slow and labor-intensive. Third, high-value or delicate items placed on open shelves are vulnerable to accidental damage or tampering by passing shoppers who may not realize they are getting too close. Furthermore, standard racks lack integrated ways to provide detailed product information, forcing stores to use separate signage or tablets that clutter the space.

The solution

The patent describes a comprehensive display stand that integrates mechanical movement, safety sensing, and information broadcasting.

1. Base and Frame: The unit starts with a sturdy base (1) supporting a vertical frame (2) and a top plate (3). A clothing hanger rod (4) connects to the base.
2. Quick-Release Mechanism: At the top of the base, a quick-release device (5) uses a first electric push rod (56). When activated, this rod drives a linkage system involving ferrules (55), supporting rods (52), and connecting rods (53). This mechanism lifts or lowers the hanger rod assembly smoothly, allowing staff to access or rearrange hanging clothes without unscrewing joints.
3. Rotation System: Inside the bottom of the base, a rotation detection device (57) contains a main gear (571) and auxiliary gear (572) connected to a gear motor. This setup rotates the shoe display platform automatically.
4. Safety Sensors: The same internal module includes an ultrasonic emitter (576) and sensor (575). If a person approaches the display closer than a set distance, the system triggers a buzzer (577) to alert them, preventing contact with the merchandise.
5. Lighting and Info: On the outer side of the base, an irradiation device (6) allows adjustment of spotlight angle and height. Under the top plate, a broadcasting device supports video playback and barcode scanning, providing digital information about the shoes and clothes directly at the shelf.

Who it is for

• Fashion Retailers: Brands selling both footwear and apparel need versatile fixtures that can showcase pairs of shoes and hanging outfits together.
• Trade Show Exhibitors: Companies attending expos benefit from the quick-release assembly, allowing them to set up or take down booths rapidly between events.
• Department Store Managers: Staff responsible for visual merchandising appreciate the motorized rotation and adjustable lighting, which help highlight new arrivals without manual intervention.
• Security-Conscious Stores: High-end boutiques or locations with heavy foot traffic can use the proximity alarm to reduce accidental damage to expensive inventory.

How it works

The main parts

Operating steps

1. Power Up: Connect the unit to an external power supply to activate the motors and electronics.
2. Rotate Display: The gear motor turns the main gear, causing the shoe platform to spin slowly, showing all sides of the footwear.
3. Monitor Proximity: The ultrasonic emitter sends signals continuously. If a shopper enters the restricted zone, the receiver detects the reflection and activates the buzzer.
4. Adjust Layout: To change the position of hanging clothes or remove them for cleaning, staff activate the first electric push rod. The rod extends, driving the ferrule and linkages upward, raising the hanger rod assembly clear of obstacles.
5. Tune Lighting: Users manually slide the adjusting ring on the irradiation device to change the spotlight’s angle and height, ensuring the products are well-lit.

Applications

Footwear Boutiques

In stores specializing in sneakers or dress shoes, the rotating platform allows customers to view the entire shoe design without picking it up. The proximity alarm prevents shoppers from touching the soles, keeping the display clean and professional.

Integrated Apparel Displays

For brands selling coordinated outfits, the stand holds shirts or jackets on the upper rod while displaying matching shoes on the lower rotating tray. The quick-release feature lets staff easily swap out seasonal collections without tools.

Trade Show Booths

Exhibitors at large conventions need to set up quickly. The modular design and electric lift mechanism allow teams to assemble the display in minutes. The built-in broadcasting device can loop promotional videos, attracting passersby without extra screens.

High-Traffic Department Stores

In crowded areas where accidental bumps are common, the ultrasonic sensor acts as a protective barrier. When someone gets too close to a premium display, the buzzer alerts them immediately, reducing the risk of damaged goods and the need for frequent restocking.

Smart Retail Pilots

Stores testing IoT integration can use the barcode scanning feature in the broadcasting device. Customers can scan codes on the stand to see size availability or reviews on their phones, merging physical display with digital data.

Where it is less suitable

• Low-Budget Small Shops: The complexity of motors, sensors, and electric push rods makes this unit more expensive than simple metal racks.
• Outdoor Markets: The electronic components and sensors are not described as weatherproofed, making them risky for rain or dust exposure.
• Static Heavy Furniture: This design is optimized for lightweight fashion items; it is not intended for bulky, non-rotating industrial goods.
