Mechanical Flying Disc Launcher for Pet Dog Training

The problem

Playing fetch with a flying disc is a common way to exercise dogs, but throwing a disc consistently and far enough requires practice and physical effort. Children, older owners, or adults with limited arm strength often struggle to launch a disc high or far enough for an active dog to chase. Hand-thrown discs also vary in angle and distance, making structured training sessions difficult to maintain. Existing manual launchers may require strong pulling force, while automated ones can be bulky, fixed in shape, and hard to transport to a park or field.

The solution

This device provides a mechanical structure that handles the loading and launching work.

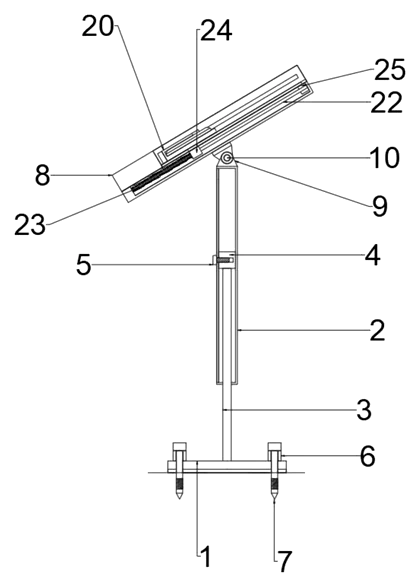

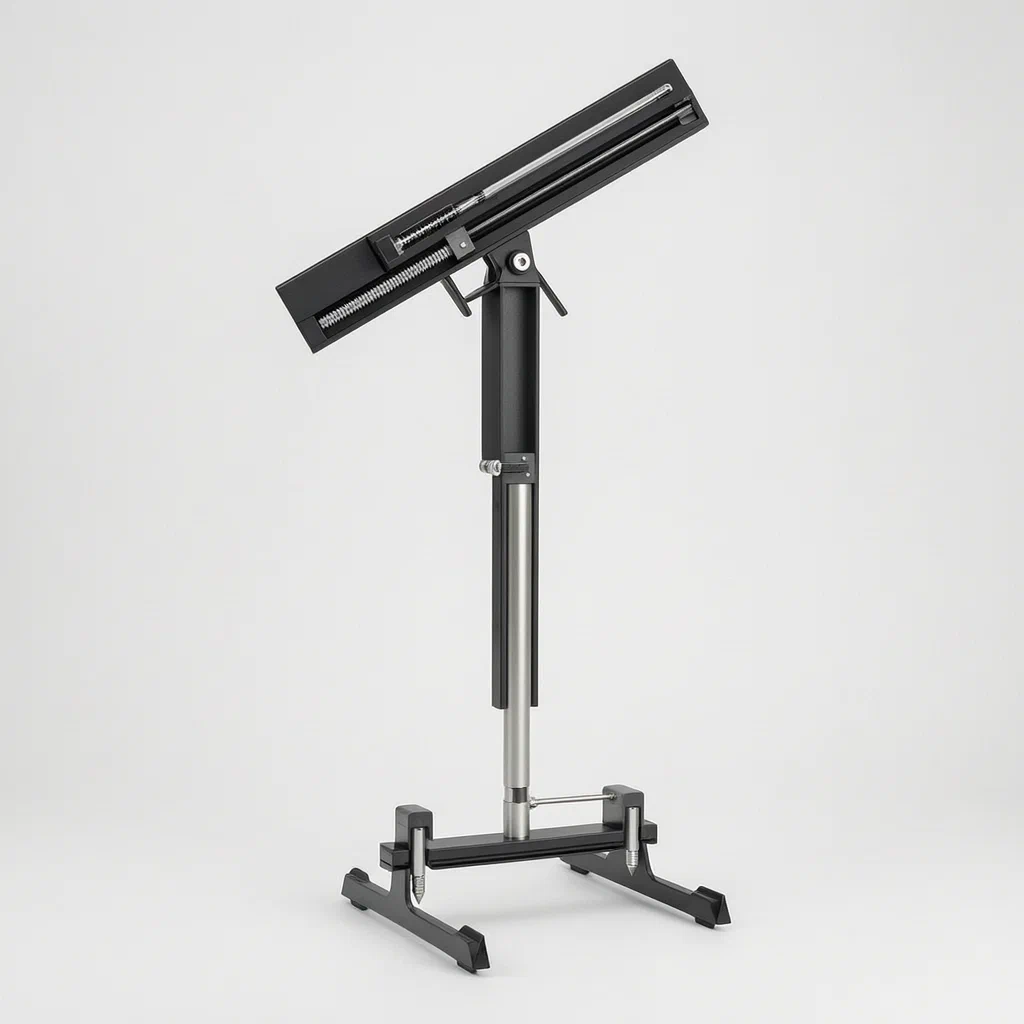

1. A placement base (1) rests on the ground, fitted with an anti-slip rubber mat underneath and a threaded cylinder (6). A positioning anchor rod (7) screws into the threaded cylinder to stabilize the unit on the ground.
2. A support rod (3) rises from the base into a support cylinder (2). A limit sliding block (4) at the top of the rod slides inside the cylinder. A positioning screw (5) passes through a strip-shaped through hole in the cylinder wall to lock the block, setting the launch height.
3. A connecting frame (9) joins the support cylinder to a flying disc launching frame (8). Positioning bolts (10) on both sides allow the frame to pivot, changing the launch angle.

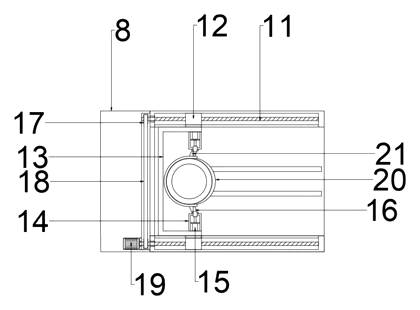

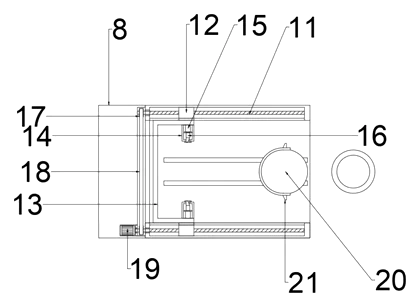

4. Inside the launching frame, a brake-type stepping motor (19) drives two ball screws (11). Synchronous wheels (17) on the screws are linked by a synchronous belt (18), so one motor turns both screws evenly.
5. Lead screw nuts (12) on the screws move positioning frames (13) and a placement frame (14) holding a telescopic cylinder (15) with a limiting block (16).
6. The flying disc throwing disc (20) carries positioning blocks (21) and a positioning slider (24). The slider rides on limit rods (22) inside a device groove in the launching frame, with springs (23) wrapped around the rods. One end of each limit rod has a protective rubber cushion (25). The slider passes through a strip-shaped hole in the frame.

Who it is for

• Pet product brands looking to add a structured, mechanical disc launcher to their outdoor dog toy lines.
• Amazon sellers and e-commerce retailers sourcing interactive pet toys that offer clear functional differences from standard hand-thrown discs.
• Dog training clubs and schools needing a consistent launch height and angle for obedience and retrieval drills without relying on a trainer’s arm strength.
• Wholesalers of outdoor and garden goods supplying pet owners who want durable, portable play equipment for parks and yards.

How it works

The main parts

Operating steps

1. Unfold and place the base on the ground. Screw in the positioning anchor rod to secure it.
2. Loosen the positioning screw, slide the support rod up or down to the desired height, and tighten the screw through the strip-shaped hole.
3. Adjust the launch angle by loosening the positioning bolts on the connecting frame, tilting the launching frame, and retightening.
4. Load the flying disc onto the placement frame area.
5. Activate the motor. The brake-type stepping motor turns the ball screws. Through the synchronous wheels and belt, both screws rotate evenly, pulling the throwing disc backward along the limit rods and compressing the springs.
6. Release. The motor brake releases, and the compressed springs drive the throwing disc forward rapidly along the limit rods, striking the flying disc and launching it. The protective rubber cushions stop the slider at the end of the stroke.

Applications

Backyard fetch sessions

Dog owners use the launcher in fenced yards where space is limited but the dog needs active exercise. By adjusting the height and angle, the owner controls the flight path so the disc stays within the property boundaries. This solves the issue of inconsistent hand throws landing on neighboring roofs or fences.

Park training for children and dogs

Children who want to play fetch with larger dogs often lack the arm strength to throw a disc far enough to keep the dog interested. The mechanical launcher allows a child to operate the device safely while the dog gets a full-distance chase. It removes the physical limitation and keeps both engaged.

Professional retrieval training

Dog trainers conducting structured retrieval drills need the disc to travel the same distance and trajectory repeatedly. The adjustable height, fixed angle, and consistent spring-powered launch provide this uniformity. Trainers do not have to fatigue their arms maintaining identical throws across dozens of repetitions.

Outdoor recreation and camping

When traveling to campsites or open fields, owners carry the folded unit and set it up on uneven ground using the positioning anchor rod. The anti-slip rubber mat helps stabilize the base. It replaces the need to carry multiple heavy electronic launchers, offering a mechanical alternative that folds flat for transport.

Where it is less suitable

• Indoor apartment use - the spring-driven launch is designed for open outdoor spaces; indoor ceilings and walls restrict the flight path.
• Very small dogs or puppies - the device launches standard training flying discs, which may be too large or fast for very small breeds to catch safely.
• Unsupervised pet play - the unit requires a person to load the disc and operate the motor; it is not an automatic self-play feeder toy.
