Stretch-to-Fit Toy Remote with Drone Storage

Toy remote controls are made for one hand size - cramped for adults, too wide for kids. Here the two joystick handles slide in and out on toothed rails, so the controller fits any hand. A spring clamp on top holds a phone for camera view and lifts off when not needed. And the center of the controller is a storage box with a clear lid, shaped to hold the mini drone itself.

  • China utility model - lapsed
  • No filings outside China
  • RC toys & drones
  • Housing design for a standard radio module
Request a Quote How it works →
Stretch-to-Fit Toy Remote with Drone Storage - patent drawing

↔️

Handles slide to fit

Each joystick handle runs on a toothed rail with a gear, for smooth, even width adjustment.

📱

Detachable phone clamp

A spring-loaded clamp plugs into the top for a phone view, and unplugs when not needed.

🚁

Drone stored inside

The center of the controller is a compartment with locating blocks shaped to hold the toy.

💎

Clear faceted lid

A transparent, multi-faceted lid shows the toy inside and clips shut with a buckle.

🔥 Popularity – views

Bring this product to market

  1. ✓ Patent vetted China-only family and legal status checked
  2. 2 Product brief · now How it works, uses and options written up
  3. 3 Prototype First samples for buyers to review
  4. 4 Pilot run Small first batch for launch customers
  5. 5 Volume production Repeat orders at scale

Buyer interest

– of 100 buyers needed to start prototyping

or request a quote Share to speed it up:

One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.

Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.

Join the build team

Want to develop this product with others? Tell us what you can bring. When the team has enough people, we introduce the members to each other by email.

I can help with (pick any)

Letters only. The team list on this page shows your country and the first 5 letters of your name (e.g. "Micha**"); leave the name blank to appear as "Anonymous".

No money is collected on this site. IP2M does not hold or manage funds, and pledges are non-binding. We email you a link to confirm; only confirmed members are introduced to each other. See our privacy policy.

The problem

Mini drones and small RC toys are sold to both children and adults, but their remote controls come in one fixed size. The toy and its controller also travel separately, and small drones are easily lost or crushed in a bag.

The solution

The patent makes the controller adjustable and turns it into the toy’s case:

  1. The body (1) has a left rail (11) and a right rail (12), each with a toothed rack (111, 121).
  2. The left handle (2) and right handle (3), each with its control stick (4), slide on the rails. A gear on each handle (21, 31) meshes with the rack for fine, even adjustment.
  3. A phone clamp (5) - a base (51), a sliding jaw (52) and a spring (53) - holds a phone. A plug (512) on the base fits a socket (13) in the body, so the clamp comes off when not used.
  4. The body has a storage compartment (14) with locating blocks (141) shaped to the toy, under a hinged lid (15) with a buckle (151) and a clear, faceted window (152).
Stretch-to-Fit Toy Remote with Drone Storage - Patent drawing - controller open

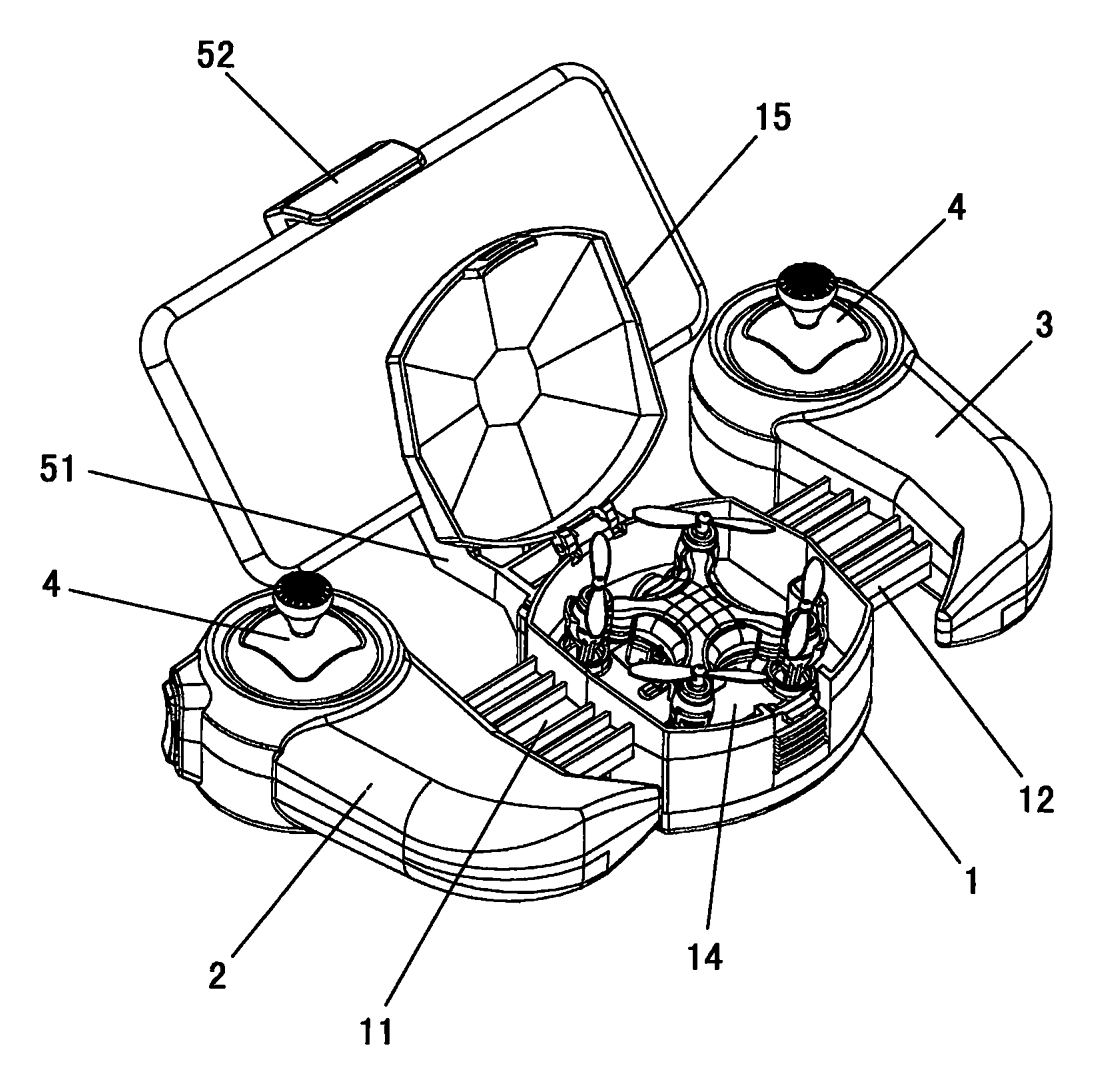

Patent figure 5 - body (1), handles (2, 3) with sticks (4) on the rails (11, 12), phone clamp (51, 52) raised, lid (15) open and the drone stored in the compartment (14).
