Ear-Shaped Mask Strap Guard with Tension Adjuster

The problem

Ear-loop face masks are held on by two elastic loops that pull on the back of the ears. The loop length is fixed, so the tension cannot be changed. After a few hours - for healthcare workers, cleaners, food workers or anyone who wears a mask all day - the loops leave marks and the ears become sore.

The solution

The patent adds two small parts to any ear-loop mask:

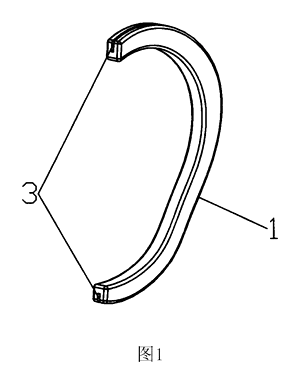

1. An ear guard (1) of silicone, elastomer or plastic. Its front follows the outline of the outer ear, so it hooks around the ear.

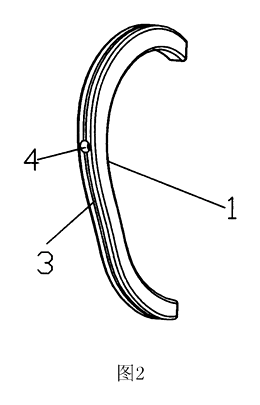

2. On the back of the guard, a strap groove (3) runs the full length. The mask loop sits in this groove, so its pull is spread along the guard and the loop cannot slip off.

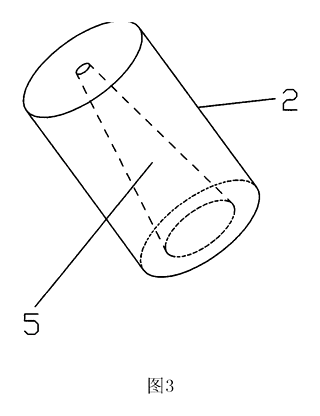

3. A tension adjuster (2) - a small elastic cylinder with a tapered hole (5) through its center - grips the loop. Sliding it along the loop shortens or lengthens it.
4. A recess (4) on the back of the guard holds the adjuster. The groove passes through the recess, so loop, adjuster and guard work as one unit.

Who it is for

• PPE and healthcare-supply brands selling mask accessories.
• Mask manufacturers wanting a comfort add-on or bundle.
• Amazon and pharmacy sellers in the face-mask accessory category.

How it works

The main parts

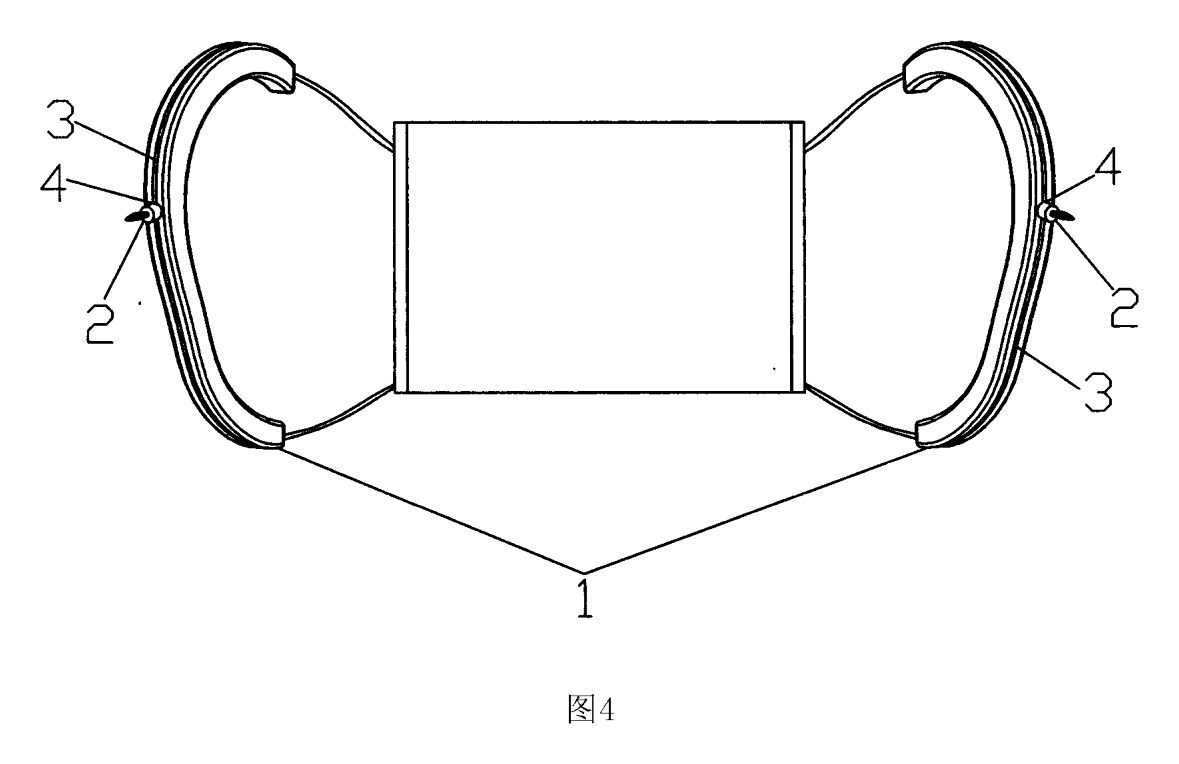

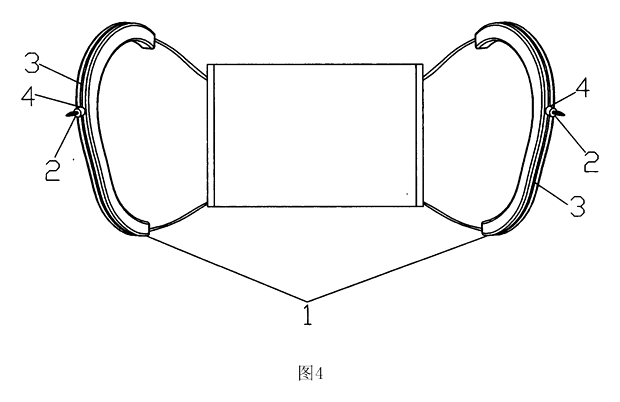

Fitting it to a mask

1. Thread the mask loop through the tapered hole (5) of the adjuster (2).
2. Slide the adjuster along the loop to set the length: a shorter loop for a tighter fit, a longer one for less pressure.
3. Press the loop into the groove (3) on the back of the ear guard and seat the adjuster in its recess (4).
4. Hook the guard over the ear. The pull of the loop is now spread along the guard instead of the back of the ear.
5. Repeat on the other side.

Why the tapered hole works

The hole is narrow at one end and wider at the other. The elastic material grips the loop firmly in the narrow part, so the setting holds, but the adjuster can still be slid along by hand when you want to change it.

Applications

Healthcare and dental offices

Staff who wear ear-loop masks for whole shifts.

Food processing and food service

Masks are worn for hours in kitchens, bakeries and packing lines.

Cleaning, janitorial and manufacturing work

Dust masks and disposable masks during long tasks.

Travel and daily wear

Air travel, public transport and air-pollution days.

People with glasses or hearing aids

A guard spreads the loop away from the area behind the ear that glasses arms and hearing aids also use.

Where it is less suitable

• Head-strap respirators (such as N95s with straps around the head) - they do not use ear loops.
• Masks with very short or very weak loops - the adjuster needs some loop length to work.
