Compact Torsion-Spring Bike Bell

The problem

Today’s bikes are as much for fitness and leisure as for transport, and handlebars fill up quickly: GPS or phone mount, bike computer, lights, mirror, bag. A traditional bell is bulky and often no longer fits.

Mini bells solve the space problem, but many use a custom-bent spring as both lever and return spring. That part has to be specially made, which raises cost and makes the design less flexible.

The solution

This bell keeps the compact layout and changes the spring:

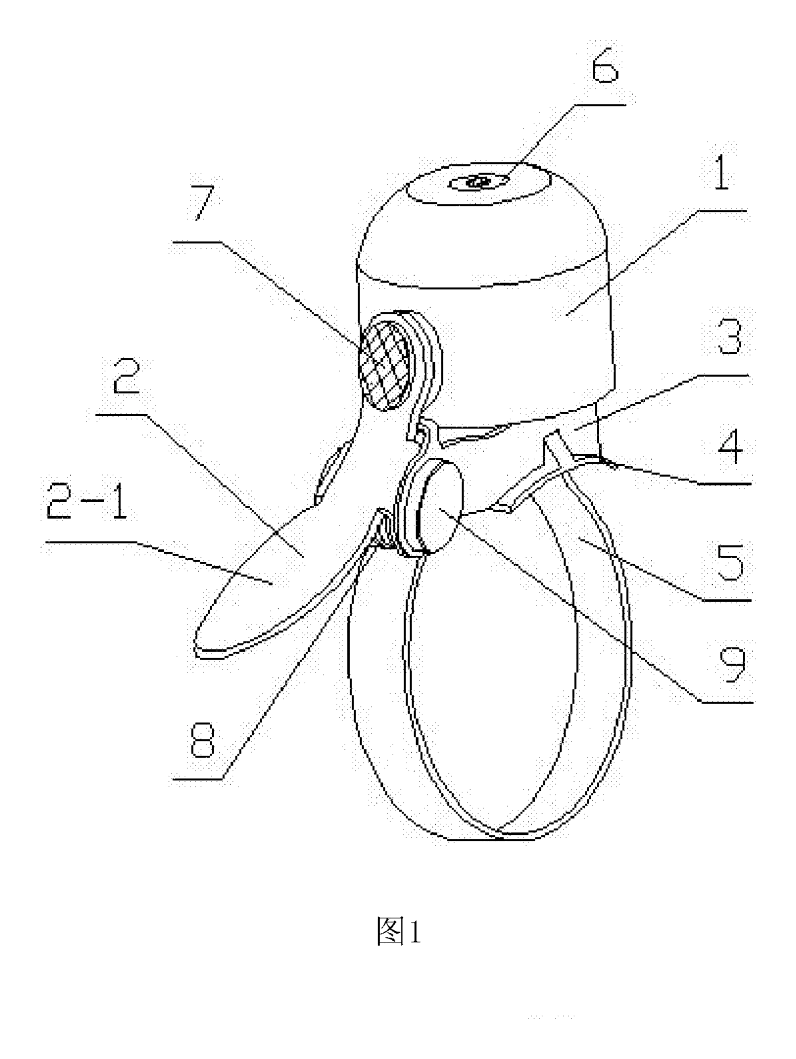

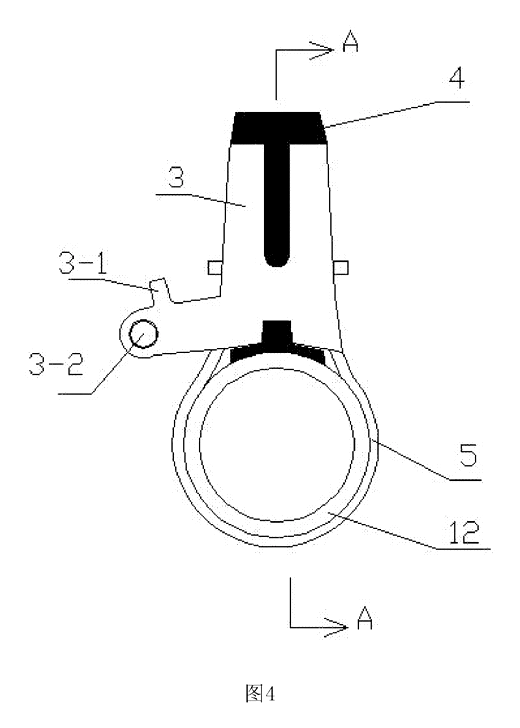

1. A small lever pivots on the side of a center bracket under the bell dome. One end carries a striker, the other a curved thumb tab.
2. A standard torsion spring sits on the lever’s pivot. One leg hooks onto a locating catch on the bracket, the other sits under the thumb tab.
3. Press the tab and release: the spring snaps the striker against the inside rim of the dome. At rest, the catch holds the lever so the striker does not touch the dome.
4. The dome is clamped only between a rubber washer and a rubber cushion block, so it “floats” and rings long and clear.
5. A strap wraps around the handlebar; its ends attach to a sliding lock block. One screw through the dome pulls everything tight.

Who it is for

• Bike accessory brands and Amazon sellers looking for a stylish mini bell that stands out from generic ring-bells.
• Bicycle makers and kids’ bike / stroller brands that want a small, quality bell as original equipment - the patent names premium bikes and strollers as target uses.
• Retailers and bike shops wanting a low-cost, high-margin impulse item in several colors and finishes.

How it works

The main parts

Ringing the bell

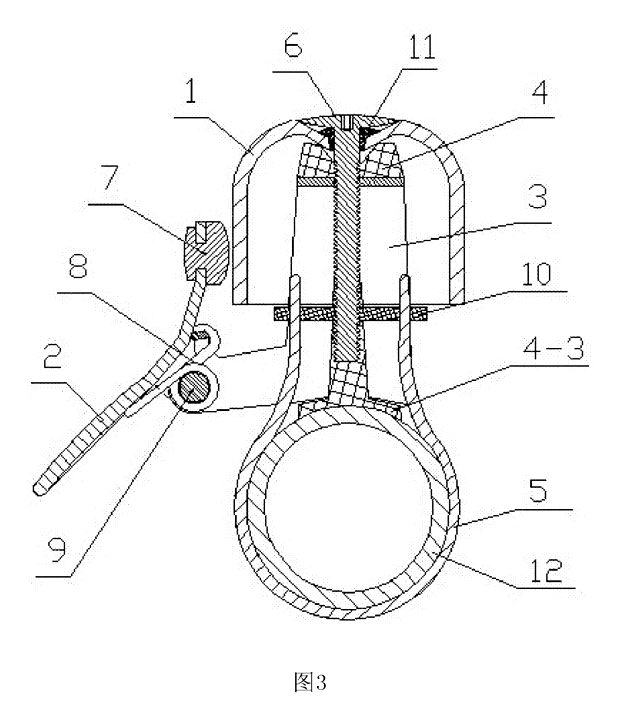

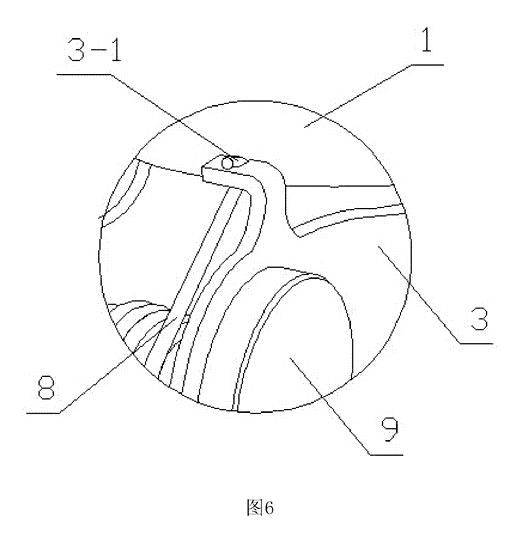

1. At rest, the locating catch (3-1) bears on the underside of the lever, so the striker (7) is held clear of the dome - no rattling while riding.
2. Push the thumb tab (2-1). The lever turns on its pivot (9) and winds the torsion spring (8); the striker swings away from the dome.
3. Release. The spring snaps the lever back and the striker hits the dome’s rim - “ding”.
4. The catch stops the lever at its rest position again, which also limits its travel.

Because the dome touches only rubber - the washer (11) above and the cushion cap (4-1) below - it vibrates freely, giving a long, clean note.

Mounting on the handlebar

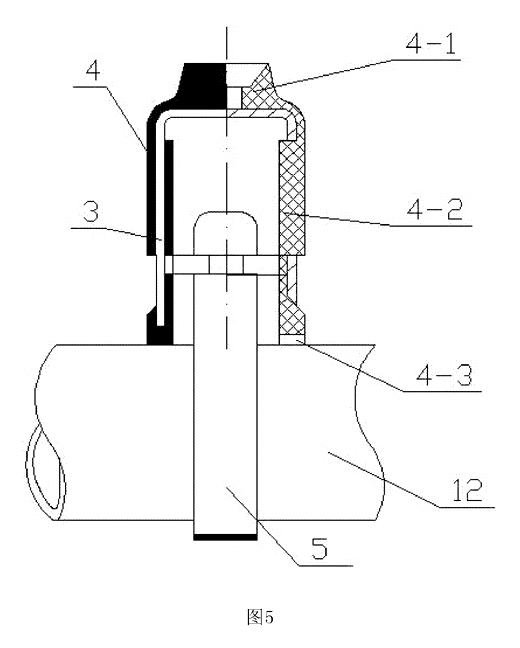

1. Wrap the strap (5) around the handlebar.
2. The curved rubber base (4-3) sits on top of the bar.
3. Tighten the screw (6): the locking slider (10) moves up the rail (4-2) inside the rubber block and pulls the strap tight.

Applications

Road, gravel and mountain bikes

Riders who care about weight and clean looks often skip the bell - until they need one on a shared path. A small, neat bell that fits next to a computer mount is an easy add-on.

City commuters and e-bikes

Commuters ring their bell often in traffic and on bike lanes. A clear, carrying tone gets attention without a harsh buzz, and the compact size leaves space for lights and a phone mount.

Kids’ bikes and balance bikes

A bell is often a child’s favorite accessory. Bright colors and a light thumb action suit small hands; the smooth, rounded shape has no sharp edges.

Strollers, scooters and wheelchairs

The patent names premium strollers as a target. The same strap mount fits stroller handles, kick scooters and wheelchair push rims, where a small, discreet bell is welcome.

Original equipment for bike brands

Many regions require or expect a bell on new bikes. A distinctive small bell in the brand’s colors is an inexpensive way to make a bike feel more premium.

Where it is less suitable

• Very loud environments - a larger bell or electronic horn carries further.
• Oversized or very thick bars - check that the strap length suits the bar diameter, or offer a longer strap.
