Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button

The basket is the part of an air fryer that gets greasy, goes in the sink and takes up space in the cupboard - and its fixed handle makes all of that harder. Riveted handles also trap grease where they meet the basket. In this design the handle is a separate part. A metal connector welded to the basket's rim is bent up into a flat vertical tab. The handle has a slot that is open at the top, so it slides straight down over the tab and sits on a U-shaped stop. Two L-shaped hooks inside the handle, pushed by a spring, catch notches on the sides of the tab and lock it. A button on the underside of the handle tips the hooks back, and the handle lifts off upward.

  • China utility model - lapsed
  • No filings outside China
  • Small kitchen appliances
  • Coated steel or aluminum basket, PP or PBT handle, springs
Request a Quote How it works →
Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - patent drawing

⬇️

Drop-on handle

The handle slides straight down over a vertical tab on the basket rim - no rivets.

🔒

Spring hook lock

Two L-shaped hooks in the handle snap into notches on the tab and hold it firmly.

🔘

Button release

A button under the handle swings the hooks back so the handle lifts off.

🧽

Easier washing and storage

With the handle off, the basket fits the sink or dishwasher and nests in a cupboard.

🔥 Popularity – views

Bring this product to market

  1. ✓ Patent vetted China-only family and legal status checked
  2. 2 Product brief · now How it works, uses and options written up
  3. 3 Prototype First samples for buyers to review
  4. 4 Pilot run Small first batch for launch customers
  5. 5 Volume production Repeat orders at scale

Buyer interest

– of 100 buyers needed to start prototyping

or request a quote Share to speed it up:

One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.

Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.

Join the build team

Want to develop this product with others? Tell us what you can bring. When the team has enough people, we introduce the members to each other by email.

I can help with (pick any)

Letters only. The team list on this page shows your country and the first 5 letters of your name (e.g. "Micha**"); leave the name blank to appear as "Anonymous".

No money is collected on this site. IP2M does not hold or manage funds, and pledges are non-binding. We email you a link to confirm; only confirmed members are introduced to each other. See our privacy policy.

The problem

Air fryer baskets are pulled out hot, emptied, and washed after almost every use. A handle that is fixed to the basket with rivets or screws makes the basket awkward in the sink and dishwasher, takes extra cupboard space and leaves joints where grease collects. A removable handle solves this only if it is quick to attach and cannot come loose while carrying a basket of hot food.

The solution

  1. The basket body (1) carries a connector (4): one end is fixed to the basket rim, the other is bent up into a vertical insert tab (3).
  2. The handle (2) has a connecting part with a vertical guide slot whose opening (5) is at the top. The tab slides down into the slot from above, and the slot’s cross-section matches the tab.
  3. In the connecting part, a fixing seat (6) with an open outer wall holds a U-shaped limiting block (7) at the bottom of the slot; the tab rests in a groove on its top. A cover (8) closes the seat.
  4. The tab’s sides are bent into lugs with notches (10). On both sides of the slot, L-shaped hooks (12) turn on pivots (15); their hook ends (13) snap into the notches.
  5. A spring (14) pushes the hooks into the locked position. A button (16), exposed under the fixing seat, pushes the hooks’ horizontal arms to release them.
  6. A silicone pad (18) and positioning plate (17) complete the assembly; the basket fits the fryer shell (20) and cavity (21).
Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent drawing - basket with handle

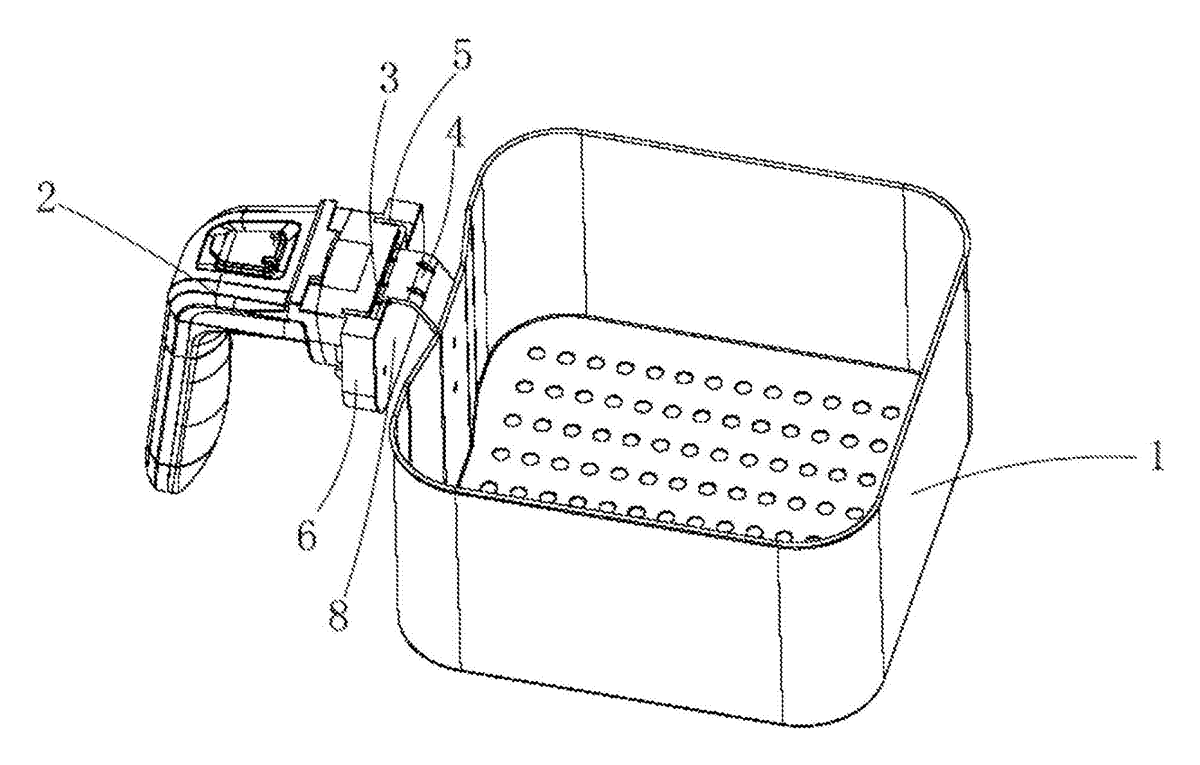

Patent figure 1 - the basket body (1) with the handle (2) attached over the tab (3).

Who it is for

  • Small-appliance brands designing a new air fryer and looking for an easy-clean basket feature.
  • Replacement-part and accessory sellers offering baskets for popular air fryer sizes.
  • Cookware brands adding air fryer baskets or multi-cooker inserts with removable handles.
  • Private-label appliance programs at retailers that want a visible difference on the shelf.

How it works

The main parts

Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent drawing - handle exploded

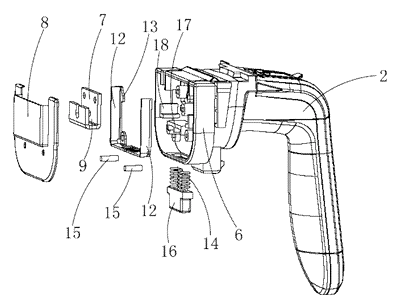

Patent figure 3 - the handle taken apart: hooks (12), spring (14), button (16), cover (8) and seat (6).
No.PartWhat it does
1Basket bodyHolds the food; rim carries the connector.
4ConnectorStrip fixed to the rim, bent into the tab.
3Insert tabVertical tab with notched side lugs (10, 11).
2HandleHas the vertical guide slot.
6, 7Fixing seat and limiting blockSupport the tab at the bottom of the slot.
12, 13L-shaped hooksSnap into the tab’s notches.
14SpringKeeps the hooks locked.
16ButtonReleases the hooks.

Using it

  1. Line up the handle above the tab on the basket rim.
  2. Push it down - the tab slides into the slot and the hooks click into its notches.
  3. Cook as normal - the handle carries the basket in and out of the fryer.
  4. To remove, press the button under the handle and lift the handle up off the tab.
Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent drawing - assembly section

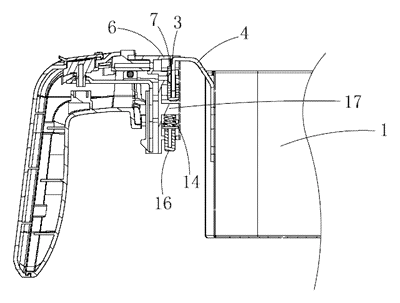

Patent figure 5 - section during assembly: the tab entering the handle slot.
