Patent Information & Production OptionsAir Fryer Basket with a Drop-On Handle That Locks and Releases by Button · Patent CN206213917U

Patent CN206213917U: bibliographic data, legal status, family, a plain-language reading of the claims, plus customization, US compliance points and how a manufacturing project runs.

At a glance

Patent numberCN206213917U (application CN201620840708)
TypeChina utility model (实用新型) - protects product shape and structure
Original titleFrying basket of an air fryer (一种空气炸锅的炸篮)
Patent ownerJoyoung Co., Ltd.
InventorsZhu Zechun, Jin Enlai, Wang Ce
Filing date2016-08-04
Grant date2017-06-06
Status (China)Lapsed - terminated for non-payment of annual fees (recorded 2026-07-31)
Patent familyChinese filings only - no US, European, Japanese, PCT or other filings listed
Cited by3 later documents
SourceGoogle Patents (search for CN206213917U)

What the claims cover, in plain language

Claim 1 - an air fryer basket with a basket body and a handle. The body has a connector with a vertical insert tab; the handle has a connecting part with a vertical guide slot opening in its upper wall, and the tab plugs vertically into the slot through that opening.

Claim 2 - the connecting part is at the side of the handle and has an open fixing seat with a limiting block supporting the tab and a clutch structure locating it. Claim 3 - a cover closes the seat and forms the slot opening with it. Claim 4 - the limiting block is U-shaped with a transverse groove holding the tab. Claims 5-6 - the connector is fixed to the body and bent into the tab; the slot section matches the tab. Claims 7-8 - the tab has notched lugs; the clutch is L-shaped hooks on pivots, driven by a button and returned by a spring. Further claims - details of the hooks, button and the air fryer containing the basket.

This is a simplified reading for orientation only. The legal scope is defined by the exact claim wording in the official Chinese document.

What this means for US production

This patent was filed only in China and has lapsed, so it no longer restricts anyone in China either. It has no US or other foreign counterpart.

Two points to settle early:

  • Other patents may exist. Air fryers are one of the most patent-active small appliances in the US, with large brands holding patents on baskets, handles and release buttons and enforcing them, so a freedom-to-operate (FTO) review of the handle lock is essential before tooling.
  • Fit to the appliance. The basket and handle must match the fryer’s drawer, cavity and safety interlocks; we design to your appliance or a new one.

Customization and manufacturing

What can be customized

AreaOptions
BasketSize and shape for 2-8 quart fryers; mesh or perforated bottom
CoatingPTFE, ceramic or uncoated stainless; PFAS-free options
HandlePP, PBT or nylon; soft-touch grip; colors and logo
LockHook design, spring force, button position and feel
ConnectorWelded or riveted steel tab, stainless grade
PackagingReplacement basket kits, multi-basket sets

Things to plan for (US market)

  • UL 1026 - household cooking appliances; the basket and handle are evaluated as part of the fryer, including handle temperature and secure attachment.
  • FDA food contact - coatings and metals in contact with food meet 21 CFR requirements (for example 21 CFR 177.1550 for PTFE coatings).
  • State PFAS laws - several states restrict intentionally added PFAS in cookware and require disclosure; coating choice follows the target states.
  • California Prop 65 - coatings, plastics and pigments are screened.

How a project runs

  1. Inquiry - fryer size, coating, handle style and quantity.
  2. Design - connector tab, handle slot, hook and button layout.
  3. Prototype - samples for fit, drop and repeated attach-detach tests.
  4. Pilot run - handle-temperature and pull tests, coating tests, dishwasher cycles.
  5. Production - basket stamping and coating, connector welding, handle molding and assembly.

Quantities & timeline

The basket needs deep-draw or stamping dies and coating, the connector needs a forming die and spot-welding fixture, and the handle, cover, hooks and button need injection molds. Durability testing of the lock takes most of the development time. Send us your fryer size, coating, handle style, quantity and target price and we will reply with options.

Patent drawings

Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent Fig. 1
Fig. 1 - The basket with the handle attached.
Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent Fig. 2

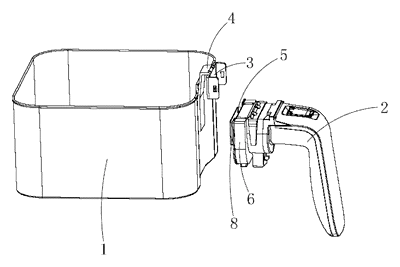

Fig. 2 - The basket body and handle separated.
Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent Fig. 3
Fig. 3 - The handle taken apart.
Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent Fig. 4

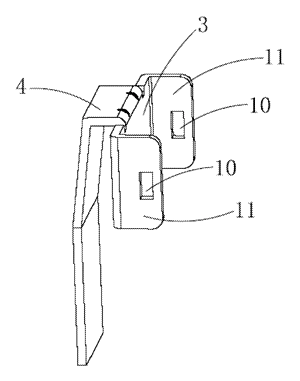

Fig. 4 - The connector and its tab.
Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent Fig. 5
Fig. 5 - Section during assembly.
Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent Fig. 6

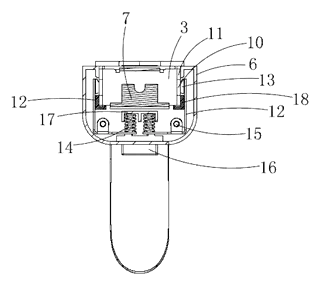

Fig. 6 - Partial section of the locked handle.
Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent Fig. 7

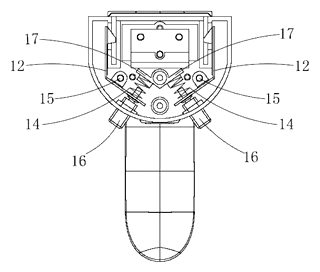

Fig. 7 - Section of the handle in a second embodiment.
Air Fryer Basket with a Drop-On Handle That Locks and Releases by Button - Patent Fig. 8

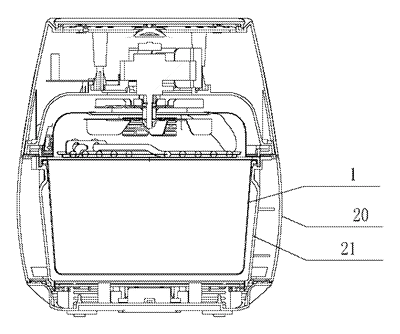

Fig. 8 - Section of an air fryer with the basket.

Drawings reproduced from the public patent document for reference.
