Patent CN206543091U

Updated October 23, 2026

Roll-Up Travel Neck Pillow with Buckles

Travel neck pillows are comfortable on the plane and a nuisance everywhere else - too bulky for a bag and awkward to carry. This pillow has a buckle strap across the open front, so it stays around the neck, and a matching buckle on the back. Roll the pillow up, clip the front buckle to the back one, and it becomes a tight bundle that hangs from a carry loop.

  • China utility model - in force in China until Nov 2026 at most
  • No filings outside China
  • Travel accessories
  • Sewn fabric, foam fill, plastic buckles
Request a Quote How it works →

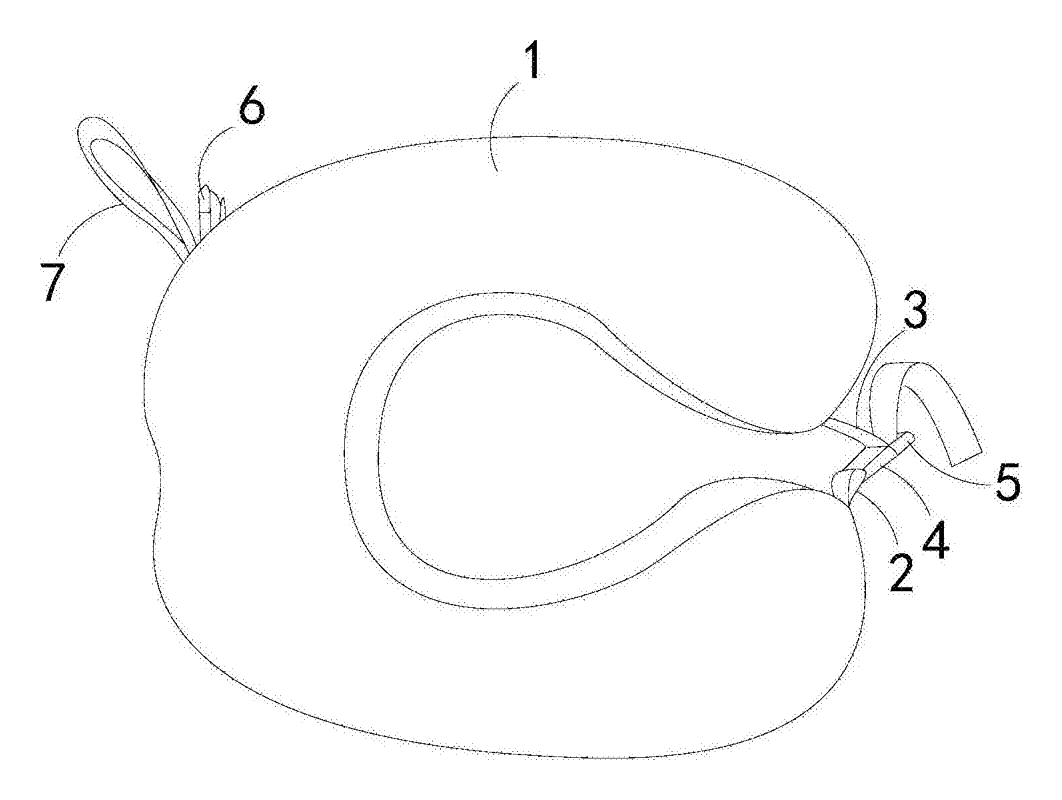

Roll-Up Travel Neck Pillow with Buckles - patent drawing

🔗

Buckles shut at the front

Straps on both ends of the U clip together under the chin, so the pillow stays on when you sleep.

🌀

Rolls up small

A third buckle on the back takes the front buckle once the pillow is rolled - it stays rolled.

👜

Carry loop

A loop next to the back buckle lets the rolled pillow hang from a bag or a hand.

🧺

Zip-out filling

A zipper in the cover lets the sponge or foam-bead filling be removed or replaced.

🔥 Popularity – views

Bring this product to market

  1. ✓ Patent vetted China-only family and legal status checked
  2. 2 Product brief · now How it works, uses and options written up
  3. 3 Prototype First samples for buyers to review
  4. 4 Pilot run Small first batch for launch customers
  5. 5 Volume production Repeat orders at scale

Buyer interest

– of 100 buyers needed to start prototyping

or request a quote Share to speed it up:

One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.

Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.

Join the build team

Want to develop this product with others? Tell us what you can bring. When the team has enough people, we introduce the members to each other by email.

I can help with (pick any)

Letters only. The team list on this page shows your country and the first 5 letters of your name (e.g. "Micha**"); leave the name blank to appear as "Anonymous".

No money is collected on this site. IP2M does not hold or manage funds, and pledges are non-binding. We email you a link to confirm; only confirmed members are introduced to each other. See our privacy policy.

The problem

A U-shaped neck pillow is one of the most common travel accessories - and one of the bulkiest. Off the plane it takes up half a carry-on or dangles from a strap. On the plane it slides off the neck as soon as you fall asleep.

The solution

The patent adds three buckles and a loop to a normal neck pillow:

  1. A first connector (2) and a second connector (3) - short straps - are sewn to the two ends of the pillow cover (1).
  2. The first connector carries a front buckle half (4) and the second the matching half (5). Clipped together under the chin, they close the U so the pillow stays on.
  3. A back buckle (6) is sewn on the outside of the middle of the pillow, at the bottom of the U. It matches either front buckle half.
  4. To pack it, roll the pillow up from the ends and clip a front buckle half to the back buckle. The pillow stays rolled.
  5. A carry loop (7) next to the back buckle lets the bundle hang from a bag or a finger.

The cover has a zipper for changing the filling, which can be sponge or foam beads, and the middle of the pillow is thicker than the ends to support the neck.

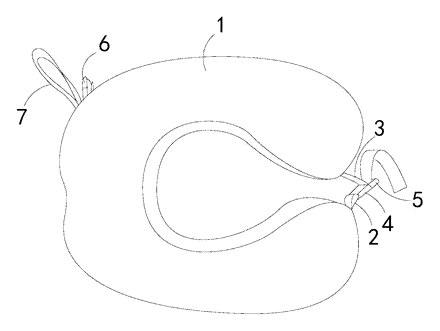

Roll-Up Travel Neck Pillow with Buckles - Patent drawing - pillow open
Patent figure 1 - the pillow open: cover (1), end straps (2, 3) with buckle halves (4, 5), back buckle (6) and carry loop (7).

Who it is for

  • Travel accessory brands looking for a neck pillow with a clear packing feature.
  • Airlines, travel retailers and airport shops selling compact comfort products.
  • Promotional and corporate gift suppliers - a branded pillow that packs small.

How it works

The main parts

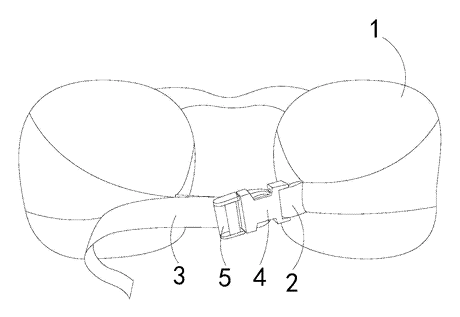

Roll-Up Travel Neck Pillow with Buckles - Patent drawing - front buckle closed
Patent figure 2 - the front closed: end straps (2, 3) joined by the buckle halves (4, 5).
No.PartWhat it does
1Pillow coverU-shaped cover with a zipper; holds the filling.
2First connectorStrap on one end; carries buckle half 4.
3Second connectorStrap on the other end; carries buckle half 5.
4, 5Front buckle halvesMale and female halves that close the front of the U.
6Back buckleOn the outside of the middle; matches a front half to hold the pillow rolled.
7Carry loopWebbing loop next to the back buckle.

Wearing it

  1. Put the pillow around your neck with the open side at the front.
  2. Clip the front buckle (4 into 5) under the chin and adjust - the pillow stays in place while you sleep.

Packing it

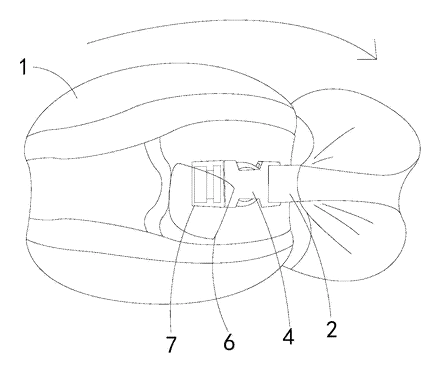

Roll-Up Travel Neck Pillow with Buckles - Patent drawing - rolling the pillow
Patent figure 3 - rolling up: the front buckle half (4) is brought round to the back buckle (6).
  1. Unclip the front buckle.
  2. Roll the pillow from the ends toward the middle.
  3. Clip one front buckle half to the back buckle (6).
  4. Carry it by the loop (7) or drop it in a bag.

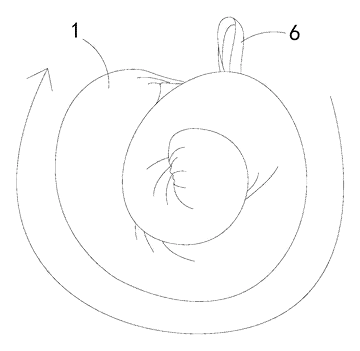

Roll-Up Travel Neck Pillow with Buckles - Patent drawing - pillow rolled up
Patent figure 4 - the pillow rolled and buckled, with the carry loop on top.

Applications

Air, rail and bus travel

The core use - a neck pillow that stays on in the seat and packs small afterwards.

Road trips and commuting

Passengers on long drives and commuter trains.

Camping and outdoor

A rolled pillow that clips to a backpack strap.

Airline amenity and travel retail

A compact, logo-ready item for travel shops and amenity programs.

Corporate gifts

Branded travel pillow for events and conferences.

Where it is less suitable

  • Inflatable pillow users - inflatable pillows already pack smaller; this design suits foam and bead pillows.
  • Medical neck support - this is a comfort product, not an orthopedic device.

Frequently asked questions

What do the buckles do?

The front buckle closes the open side of the U under the chin so the pillow stays on. The back buckle holds the pillow rolled up for carrying.

How small does it pack?

The patent gives no dimensions. Rolled size depends on the filling - foam beads and soft sponge roll tighter than thick memory foam. We test the roll on samples.

Which fillings are possible?

The patent names sponge and foam beads. Memory foam and fiber fill are also common choices.

Is the cover washable?

The cover has a zipper, so the filling can be taken out and the cover washed.

Can it be made for children?

Yes, in a smaller size, with CPSIA testing and labeling for the US market.

Does it need special labels in the US?

Yes - many states require a stuffed-article law label and registration for filled products. We plan this into the project.

Can this design be made and sold in the US?

The patent was filed only in China, so it does not restrict the design in the US. It is in force in China until November 2026 at most, and making or selling it there needs the owner’s permission until then. Other neck-pillow designs may be patented - see Patent & Production - so we recommend a freedom-to-operate check before volume production.

Are you affiliated with the patent owner?

No. IP2M is an independent design and manufacturing service working from the public patent document.

Request a quote

Click Request a Quote below to see our email address - copy it, or open your email app with a ready-made message. Please mention patent CN206543091U in the subject.

Helpful details to include:

  • Your company and sales channel (travel retail, Amazon, airline amenity, promotional…)
  • Size and target user (adult, child)
  • Filling and fabric
  • Colors, logo and packaging
  • Estimated quantity and target price
  • Timeline - when you would like samples and the first shipment

You can also reach us at (332) 203-9997.
