Patent Information & Production OptionsSelf-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube · Patent CN206729396U

Patent CN206729396U: bibliographic data, legal status, family, a plain-language reading of the claims, plus customization, US compliance points and how a manufacturing project runs.

At a glance

Patent numberCN206729396U (application CN201720292624)
TypeChina utility model (实用新型) - protects product shape and structure
Original titleToggle and folding umbrella stem using the toggle (一种拨片及使用该拨片的折叠伞杆)
Patent ownerShanghai Golden Shield Technology Co., Ltd.
InventorsTang Daolu
Filing date2017-03-24
Grant date2017-12-12
Status (China)Lapsed - terminated for non-payment of annual fees (recorded 2022-03-11)
Patent familyChinese filings only - no US, European, Japanese, PCT or other filings listed
Cited by3 later documents
SourceGoogle Patents (search for CN206729396U)

What the claims cover, in plain language

Claim 1 - a toggle made of an axis and a rotating disc on it, with a return spring between them, a protruding toggle tip at the disc’s edge and two notches or wedge blocks on the disc. A support block beside the disc holds a sliding push rod pressed toward the disc by a second spring. Turned one way by a set angle, the push rod drops into one notch (or behind one wedge); turned the other way, into the other.

Claims 2-4 - the return spring wound on the axis; push rod parallel or perpendicular to the disc; arc-shaped notches. Claim 5 - an alternative toggle with a lever sliding along the axis, pushed by a third spring onto the disc face. Further claims - a folding umbrella stem with upper, middle and lower sections, a sleeve, groove tracks, unlocking block, slip ring, slider and cord, using the toggle to sequence opening and closing.

This is a simplified reading for orientation only. The legal scope is defined by the exact claim wording in the official Chinese document.

What this means for US production

This patent was filed only in China and has lapsed, so it no longer restricts anyone in China either. It has no US or other foreign counterpart.

Two points to settle early:

  • Other patents may exist. Umbrellas with cases, auto-open mechanisms and telescoping shafts have many US patents, from large umbrella brands and individual inventors, so a freedom-to-operate (FTO) review of the sleeve, stem sequence and toggle is advisable before tooling.
  • Mechanism tuning. The sequence of pulls and pushes depends on tight tolerances in the groove tracks; it is tuned on working samples before molds are frozen.

Customization and manufacturing

What can be customized

AreaOptions
SizeCanopy diameter, closed length of the sleeve
CanopyPongee or polyester, water-repellent coating, UV-blocking, wind vent
FrameFiberglass or aluminum ribs, number of ribs
Stem and sleeveAluminum or steel stem; molded or metal sleeve; drain holes
HandleRubberized grip, wrist strap, logo cap
BrandingPrinted canopy, engraved sleeve, gift box

Things to plan for (US market)

  • California Prop 65 - canopy coatings, PVC parts and handle rubbers are screened; PFAS-free water repellents are increasingly requested.
  • State PFAS laws - several states restrict intentionally added PFAS in textile treatments; coating choice follows the target states.
  • UPF claims - if UV protection is claimed, the fabric is tested to AATCC 183 and labeled to ASTM D6603.
  • Country-of-origin labeling - required on the product or packaging under FTC and customs rules.

How a project runs

  1. Inquiry - canopy size, materials, branding and quantity.
  2. Design - toggle, groove tracks, stem sections, sleeve and cord path.
  3. Prototype - working samples for open-close cycle and wind tests.
  4. Pilot run - cycle durability, water and drop tests, packaging trials.
  5. Production - stem extrusion and machining, toggle molding, frame and canopy sewing, assembly.

Quantities & timeline

The toggle parts, sleeve, handle and slip ring need small precision injection molds, the stem sections need aluminum extrusion and machining, and the canopy is cut and sewn. Tuning the opening sequence takes the most development time. Send us your canopy size, materials, branding, quantity and target price and we will reply with options.

Patent drawings

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 1
Fig. 1 - The toggle, first embodiment.

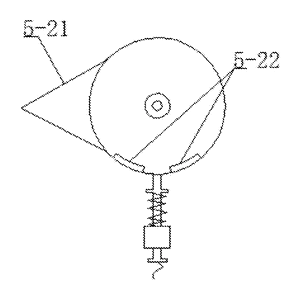

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 2
Fig. 2 - Top view of the toggle disc.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 3
Fig. 3 - The toggle in the closing position.

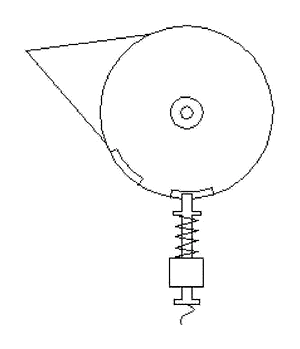

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 4
Fig. 4 - The toggle in the opening position.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 5

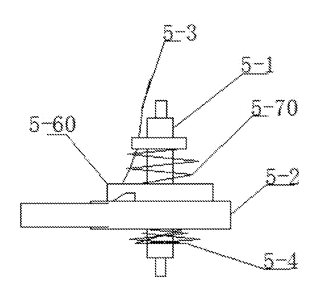

Fig. 5 - The toggle, second embodiment with a sliding lever.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 6

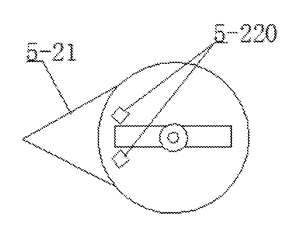

Fig. 6 - Top view of the second embodiment.

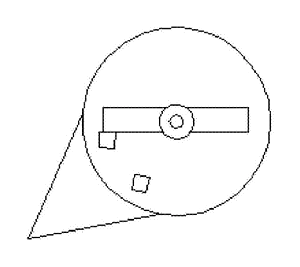

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 7
Fig. 7 - Second embodiment, first working position.

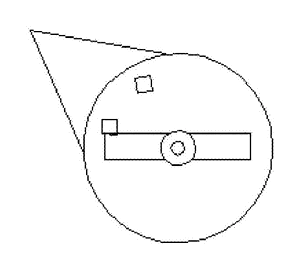

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 8
Fig. 8 - Second embodiment, second working position.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 9
Fig. 9 - The umbrella stem, third embodiment.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 10
Fig. 10 - The upper stem section.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 11

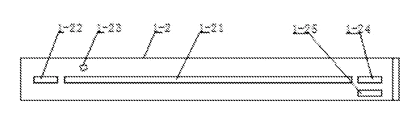

Fig. 11 - The middle stem section.

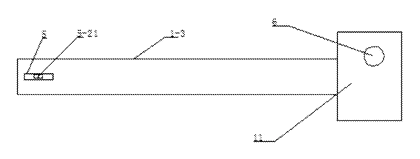

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 12
Fig. 12 - The lower stem section.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 13

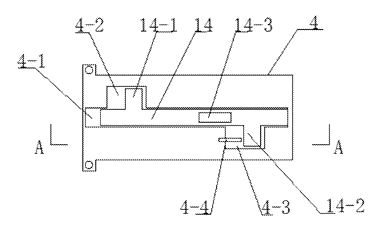

Fig. 13 - The slip ring.

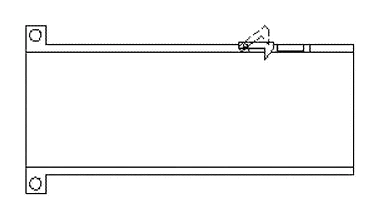

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 14
Fig. 14 - Section A-A of the slip ring.

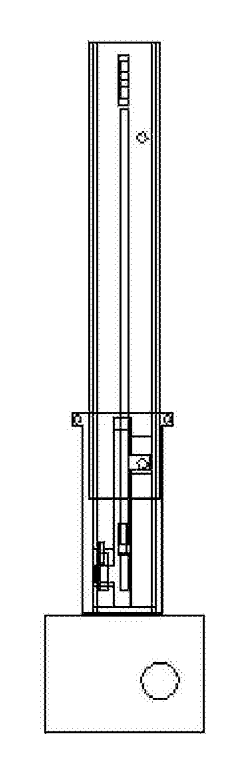

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 15
Fig. 15 - Further detail from the patent drawings.

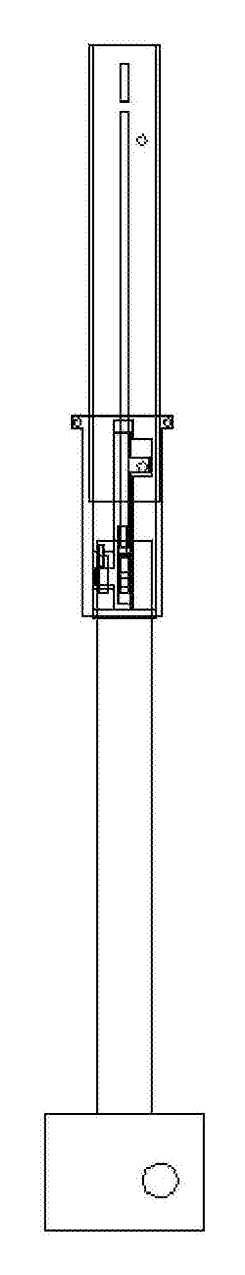

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 16
Fig. 16 - Further detail from the patent drawings.

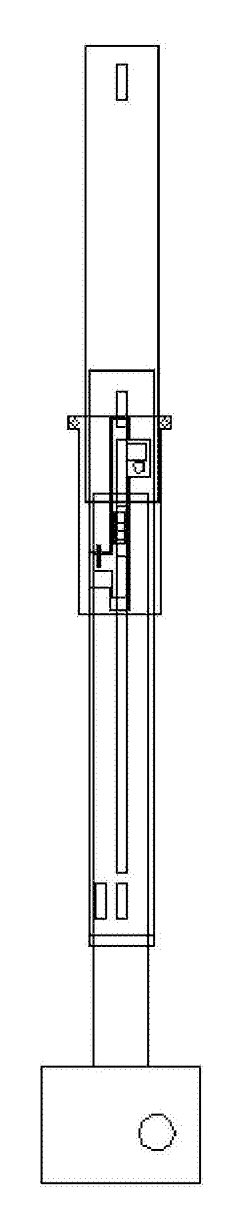

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 17
Fig. 17 - Further detail from the patent drawings.

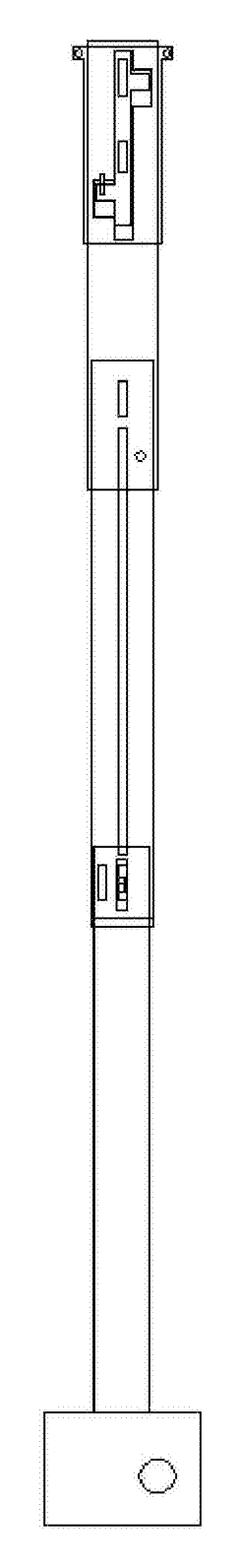

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 18
Fig. 18 - Further detail from the patent drawings.

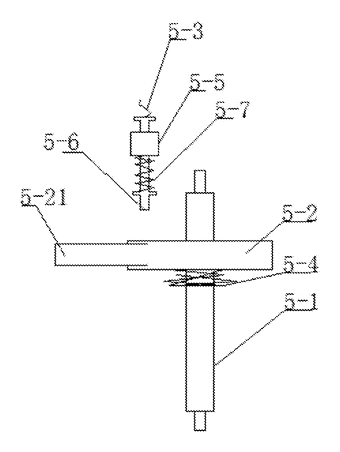

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 19
Fig. 19 - Further detail from the patent drawings.

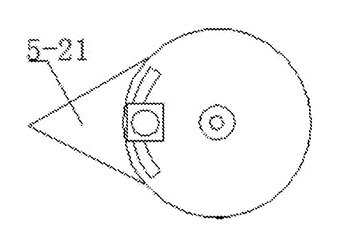

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 20
Fig. 20 - Further detail from the patent drawings.

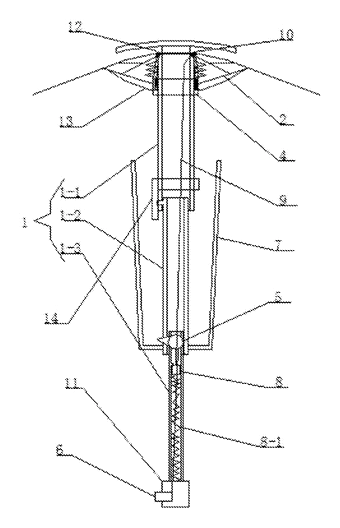

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 21
Fig. 21 - Further detail from the patent drawings.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 22

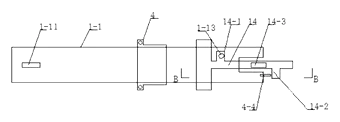

Fig. 22 - Further detail from the patent drawings.

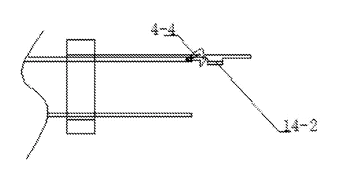

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 23
Fig. 23 - Further detail from the patent drawings.

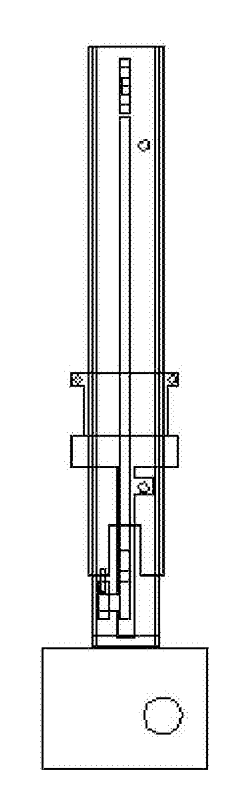

Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 24
Fig. 24 - Further detail from the patent drawings.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 25

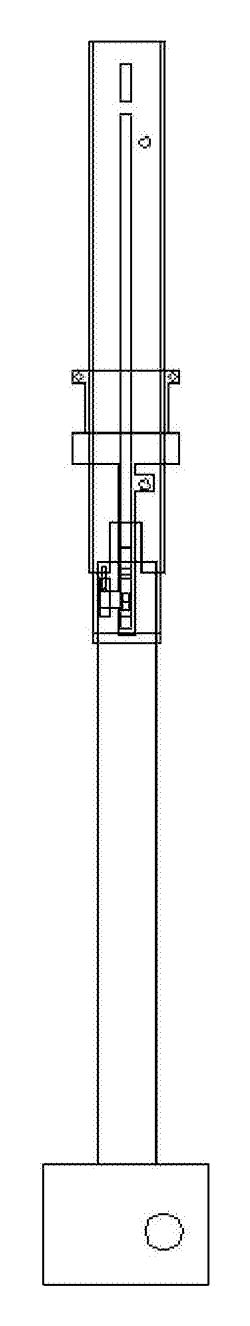

Fig. 25 - Further detail from the patent drawings.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 26

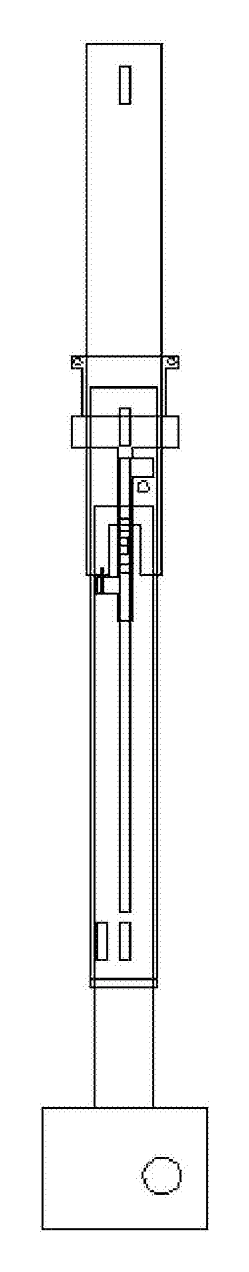

Fig. 26 - Further detail from the patent drawings.
Self-Sheathing Telescopic Umbrella That Opens and Retracts into Its Own Tube - Patent Fig. 27

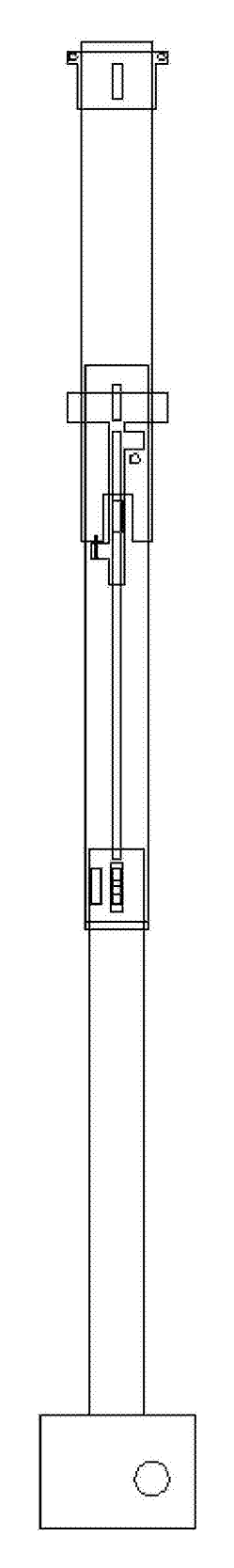

Fig. 27 - Further detail from the patent drawings.
