Portable Folding Rocking Bassinet Frame

A rocking bassinet is a big piece of furniture - hard to take to the grandparents' house or on holiday. This frame folds down into a slim bundle. Telescopic cross tubes slide out of a central locking hub, the bed rails swing up on folding links, the legs come apart in two sections, and curved rockers with PE strips under the feet give the gentle rocking motion.

  • China utility model - in force in China
  • No filings outside China
  • Baby furniture
  • Steel tube frame, no electronics
Request a Quote How it works →

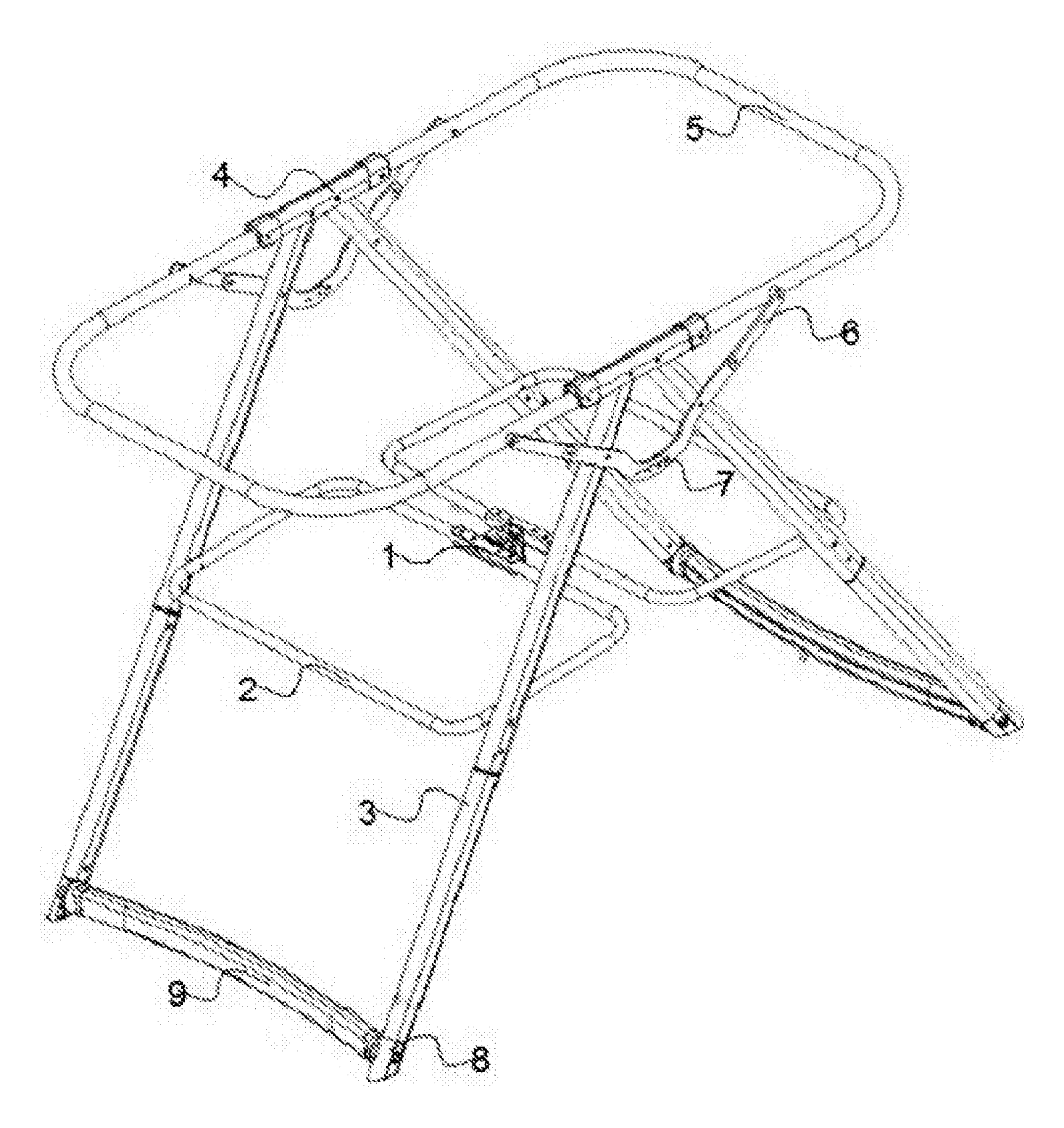

Portable Folding Rocking Bassinet Frame - patent drawing

🧳

Folds for travel

Cross tubes, bed rails and legs all fold or come apart, so the frame packs into a slim bundle.

🔒

Central locking hub

Telescopic cross tubes lock into a hub with a spring and webbing release.

🌙

Gentle rocking

Curved rocker bars under the legs, with PE strips underneath, give a smooth rocking motion.

🦵

Two-section legs

Each leg separates into two sections held by a spring clip, for a shorter folded length.

🔥 Popularity – views

Bring this product to market

  1. ✓ Patent vetted China-only family and legal status checked
  2. 2 Product brief · now How it works, uses and options written up
  3. 3 Prototype First samples for buyers to review
  4. 4 Pilot run Small first batch for launch customers
  5. 5 Volume production Repeat orders at scale

Buyer interest

– of 100 buyers needed to start prototyping

or request a quote Share to speed it up:

One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.

Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.

Join the build team

Want to develop this product with others? Tell us what you can bring. When the team has enough people, we introduce the members to each other by email.

I can help with (pick any)

Letters only. The team list on this page shows your country and the first 5 letters of your name (e.g. "Micha**"); leave the name blank to appear as "Anonymous".

No money is collected on this site. IP2M does not hold or manage funds, and pledges are non-binding. We email you a link to confirm; only confirmed members are introduced to each other. See our privacy policy.

The problem

Rocking bassinets and cradles are popular for newborns, but they are bulky. Parents who travel, visit family or move the baby between rooms need a frame that sets up quickly and folds small. According to the patent, the aim is a rocking bed that is portable and foldable.

The solution

The patent builds the frame from folding and telescopic tubes:

  1. A central hub (1) holds two sets of telescopic cross tubes (2), one on each side. A lock in the hub frame (11) holds the tubes; a tension spring and a webbing pull (12) on rivets (13, 14) work the lock.
  2. The outer ends of the cross tubes are hinged to two standing tubes (3) - the legs - which end in feet (8).
  3. A curved rocker bar (9) is pivoted between the feet of each side; PE strips under the rockers give a smooth rocking motion.
  4. At the top of each leg, a hollow joint (4) holds a bed-rail tube (5) that can turn.
  5. Upper folding links (6) and lower folding links (7) connect the bed rail to the leg and to each other, so the rails swing up and fold.
  6. Each leg is in two sections (31, 32) joined by a connector (34) with a spring clip (33).
Portable Folding Rocking Bassinet Frame - Patent drawing - frame unfolded

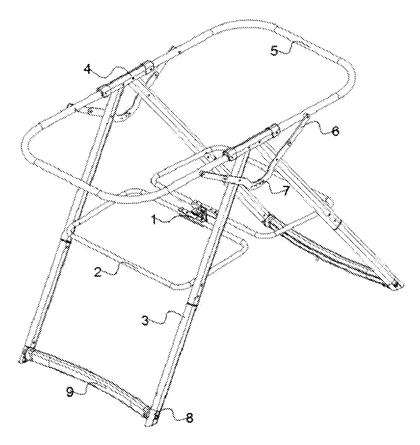

Patent figure 1 - frame unfolded: hub (1), cross tubes (2), legs (3), joints (4), bed rails (5), folding links (6, 7), feet (8) and rockers (9).

Who it is for

  • Baby-gear brands looking for a travel or second-room bassinet frame.
  • Nursery furniture retailers and online baby stores.
  • Rental and hospitality suppliers - hotel and vacation-rental baby equipment.

How it works

The main parts

Portable Folding Rocking Bassinet Frame - Patent drawing - folding

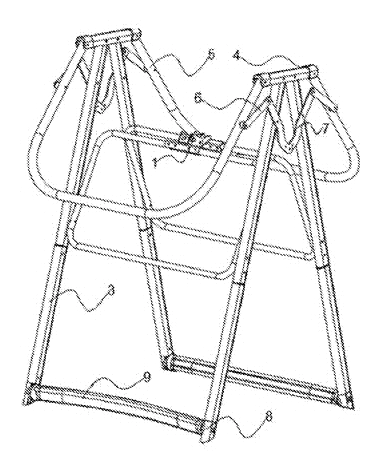

Patent figure 6 - the frame part-folded: legs (3), joints (4), rails (5), links (6, 7), feet (8) and rockers (9).
No.PartWhat it does
1Central hubHolds and locks the cross tubes; frame (11), webbing (12), rivets (13, 14), spring (15).
2Telescopic cross tubesTwo sets, one on each side of the hub.
3Standing tubes (legs)Hinged to the cross tubes; two sections (31, 32).
33, 34Spring clip and connectorJoin the two leg sections.
4JointsHollow joints at the top of the legs.
5Bed-rail tubesCarry the bed; turn in the joints.
6, 7Upper and lower folding linksFold the rails; the two lower links are pivoted together.
8FeetAt the bottom of the legs.
9Rocker barsCurved, pivoted between the feet; PE strips underneath.

Setting it up and folding

Portable Folding Rocking Bassinet Frame - Patent drawing - hub lock

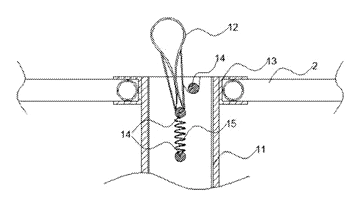

Patent figure 2 - section through the hub: webbing loop (12), rivets (13, 14) and spring (15) of the lock.
  1. Join the leg sections (31, 32) - the spring clip (33) snaps into place.
  2. Pull the cross tubes out of the hub until they lock.
  3. Spread the legs and let the folding links (6, 7) straighten so the bed rails (5) lie level.
  4. Fit the bassinet bed (mattress and fabric shell) on the rails.
  5. To fold, pull the webbing (12) to release the hub, push the cross tubes in, fold the rails and separate the legs.
Portable Folding Rocking Bassinet Frame - Patent drawing - folded

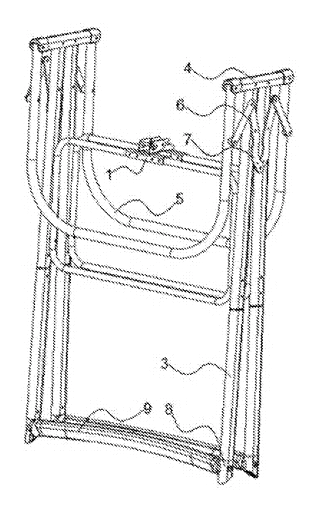

Patent figure 7 - the frame folded.

Applications

Travel bassinet

A rocking bed that goes to the grandparents’ or on holiday.

Second-room bassinet

A frame that moves easily between bedroom and living room.

Hotels and vacation rentals

Baby equipment that stores flat when not in use.

Baby-gear rental

Equipment rental businesses that need compact storage and shipping.

Combined systems

A frame that carries a bassinet, a changing table or a play mat (each needs its own safety design).

Where it is less suitable

  • Older babies - bassinets are for infants who cannot yet roll or push up; a crib or play yard is needed after that.
  • Unsupervised use without the matched bed - the frame must only be used with its tested bassinet bed.

Frequently asked questions

How does it fold?

The cross tubes slide into a central locking hub (released with a webbing pull), the bed rails fold on hinged links, and each leg comes apart into two sections.

How does it rock?

Curved rocker bars are pivoted between the feet of each side, with PE strips underneath for a smooth motion. A lock to stop rocking can be added.

Does it come with the bed?

The patent covers the frame. For sale in the US, the frame and its bassinet bed and mattress are designed and tested together as one product.

What safety rules apply in the US?

Bassinets and cradles must meet the CPSC mandatory standard (16 CFR 1218), with third-party testing, a Children’s Product Certificate, tracking labels, warnings and a registration card. We plan this into the project.

Until what age can it be used?

Bassinets are for infants who cannot yet roll over or push up; the exact limits come from the standard and go on the warning label.

Can we choose colors and fabrics?

Yes - frame colors, breathable mesh, washable covers and a travel bag.

Can this design be made and sold in the US?

The patent was filed only in China, so it does not restrict the design in the US. It is still in force in China, where making or selling it would need the owner’s permission. Other bassinet designs may be patented - see Patent & Production - so we recommend a freedom-to-operate check before volume production.

Are you affiliated with the patent owner?

No. IP2M is an independent design and manufacturing service working from the public patent document.

Request a quote

Click Request a Quote below to see our email address - copy it, or open your email app with a ready-made message. Please mention patent CN206910143U in the subject.

Helpful details to include:

  • Your company and sales channel (baby-gear brand, retail, rental…)
  • Product - frame only or complete bassinet
  • Size, materials and fabrics
  • Colors, branding and packaging
  • Estimated quantity and target price
  • Timeline - when you would like samples and the first shipment

You can also reach us at (332) 203-9997.
