At a glance
| Patent number | CN206910143U (application CN201621304541) |
| Type | China utility model (实用新型) - protects product shape and structure |
| Original title | Portable foldable rocking bed (一种便携式可折叠摇床) |
| Patent owner | Anhui Cool Douding Technology Development Co., Ltd. |
| Inventors | Zhang Yingnian, Kong Fanlong, Zhu Shusheng |
| Filing date | 2017-09-04 (as listed in our data source) |
| Grant date | 2018-01-23 |
| Status (China) | In force - no termination recorded; a China utility model lasts at most 10 years from filing |
| Patent family | Chinese filings only - no US, European, Japanese, PCT or other filings listed |
| Cited by | 8 later documents |
| Source | Google Patents (search for CN206910143U) |
What the claims cover, in plain language
Claim 1 - a portable foldable rocking bed with a middle hub, telescopic support tubes, standing tubes, joints, bed-frame tubes, upper and lower folding links, feet and rocker bars. Two sets of telescopic tubes connect to both sides of the hub; standing tubes are hinged at their outer ends; the tops of the standing tubes carry hollow joints in which the bed-frame tubes turn; feet are fixed at the bottom of the standing tubes with rocker bars pivoted between them; the bed-frame tubes connect through the upper and lower folding links, the lower links are pivoted together and to the standing tubes.

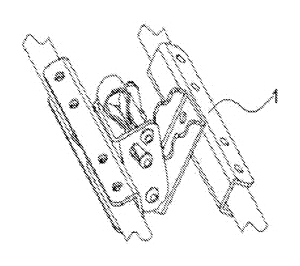

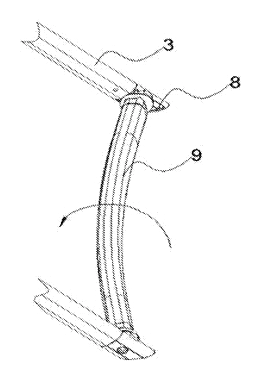

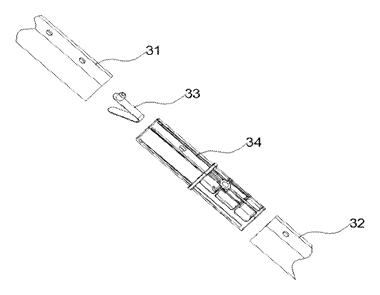

Claim 2 - the hub has a frame with a locking mechanism for the telescopic tubes, three rivets, a tension spring between two of them, and webbing connected to the rivets. Claim 3 - each standing tube has an upper and lower section joined by a connector with a spring clip. Claim 4 - PE strips under the rocker bars.
This is a simplified reading for orientation only. The legal scope is defined by the exact claim wording in the official Chinese document.
What this means for US production
This patent was filed only in China. It is still in force in China, so making or selling this design in China would need the owner’s permission while it lasts. It has no US or other foreign counterpart and does not restrict the design outside China.
Before production, keep in mind:
- Other patents may exist. Bassinets, play yards and folding baby frames are covered by many US patents held by major baby-gear brands. Use your own styling and folding details and have a freedom-to-operate (FTO) search done by a US patent attorney before volume production.
Customization and manufacturing
What can be customized
| Area | Options |
|---|---|
| Bed | Matched bassinet bed, mattress and fabric shell - designed and tested with the frame |
| Size | Bed size within the bassinet standard - to be confirmed in design |
| Frame | Steel or aluminum tube; powder-coat colors |
| Rocking | Rocking or a lock to hold it still |
| Fabrics | Breathable mesh sides, washable covers |
| Packaging | Travel bag and retail box |
Things to plan for (US market)
- Infant sleep products - a bassinet or cradle must meet the CPSC mandatory standard for bassinets and cradles (16 CFR 1218), tested by a CPSC-accepted lab, with a Children’s Product Certificate, tracking labels, warnings, and a product registration card.
- Rocking and stability - stability, rocking angle and the lock-out are part of the standard’s tests.
- Materials - lead and phthalate limits (CPSIA); flammability of fabrics; mattress fit.
How a project runs
- Inquiry - bed type, size, materials and quantity.
- Design - frame, locks, folding, and the matched bed to meet the standard.
- Prototype - samples for standard pre-tests: stability, locks, mattress fit.
- Pilot run - small batch for third-party certification testing.
- Production - volume production, packaging and shipping.
Quantities & timeline
The frame is bent and riveted tube with molded hub and joints; the bed is cut-and-sew. Certification testing is part of the project timeline. Send us your specification, quantity and target price and we will reply with options.
Patent drawings
Drawings reproduced from the public patent document for reference.
