Essential Oil Dispensing Hair Straightener with Auto-Feed Cartridge

The problem

Applying conditioning treatments while flat-ironing is awkward. Users typically have to stop styling, rub oil into their palms, work it through sections of hair, and then pick up the hot iron again. This interrupts the workflow, leaves residue on the hands, and often results in uneven distribution—too much near the roots, too little at the ends. Separate heated brushes that claim to dispense products rarely offer the clamping pressure and consistent heat of a traditional flat iron. According to the patent, the objective is to provide a hair straightener that adds essential oil automatically, allowing the user to straighten and condition in a single pass without manual application.

The solution

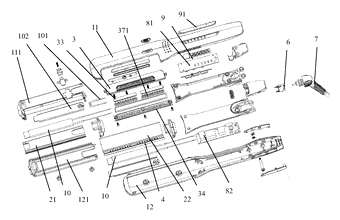

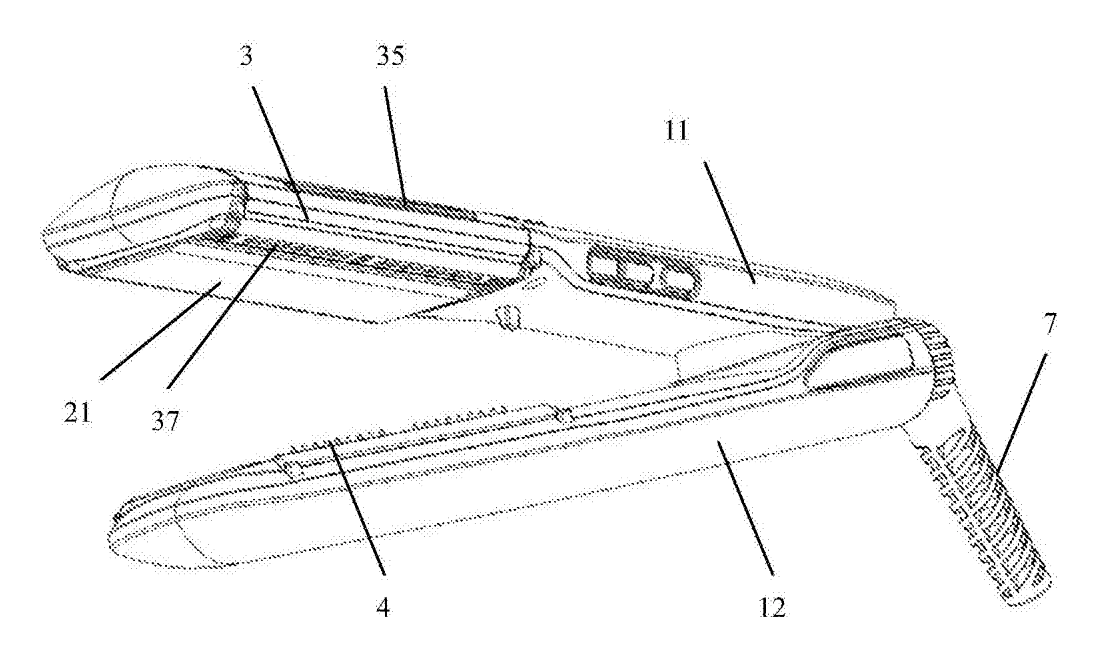

1. The straightener consists of an upper handle (1) and a lower handle (2) hinged together at one end, each carrying a heating board (3) on the facing side.

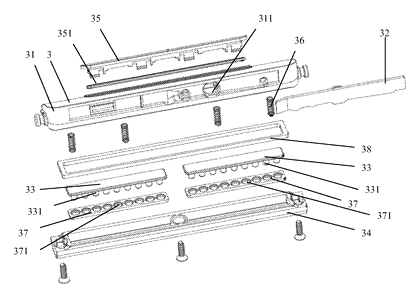

2. A strip-shaped essential oil case (4) is mounted on the side of the upper heating board. It is rotatably connected to the upper handle so it can swing open for filling.
3. Inside the case, a casing (41) holds the oil. An oil inlet (411) on the outer side accepts a removable feed cover (42) that seals tightly.
4. At the bottom, an outlet (412) is covered by an essential oil case lid (45). Two aluminum strips (44) sit inside, sliding against this lid. Springs bias the strips.
5. The lid has through-holes (451) aligned with protrusions on the aluminum strips.
6. On the lower heating board, several spike teeth (5) are fixed in a row. When the handles close, these teeth press against the protrusions on the aluminum strips.
7. Pressing the protrusions moves the aluminum strips against the springs, opening a gap that allows oil to seep out along the length of the strips and onto the hair trapped between the plates.

Who it is for

• Professional hair tool brands looking to add a treatment-dispensing feature to their premium flat iron lineup without redesigning the core heating architecture.
• Amazon private-label sellers in the beauty category who need a differentiated product that combines styling and conditioning to justify higher price points.
• Salon equipment distributors supplying stylists who frequently use oils during blowouts and want to eliminate messy manual application.
• Beauty subscription box curators seeking novel grooming tools that pair well with bottled hair serums included in monthly shipments.

How it works

The main parts

Operating steps

1. Fill the cartridge - Rotate the essential oil case outward on its pivot. Remove the feed cover from the oil inlet, pour in the desired conditioning oil, and replace the cover securely.
2. Heat the iron - Turn on the straightener and wait for the heating boards to heat.
3. Section the hair - Take a strand of hair and place it between the open handles, resting on the lower heating board.
4. Clamp and glide - Squeeze the handles together. As they close, the spike teeth on the lower board contact the protrusions on the aluminum strips. This moves the aluminum strips against their springs, opening a narrow path for the oil to flow out along the strips and coat the hair section.
5. Release - Open the handles. The springs return the aluminum strips, closing the oil path and stopping the flow until the next clamp.

Applications

Daily home styling with conditioning

Users who flat-iron every morning often skip pre-styling serums because applying them by hand slows down the routine. With this tool, the oil dispenses exactly when the plates clamp shut. The transparent window on top of the casing lets the user verify the oil level before plugging in the device, avoiding dry runs mid-style.

Salon smoothing treatments

Stylists performing smoothing treatments need even product distribution under heat. Manually painting oil onto thin sections is time-consuming and inconsistent. The linear array of spike teeth ensures the aluminum strips open uniformly across the entire width of the cartridge, delivering a consistent film of product along the hair shaft as the iron glides from root to tip.

Travel-sized grooming kits

Because the oil reservoir is integrated into the handle rather than requiring a separate pump bottle, the overall footprint stays compact. Travelers who rely on flat irons can carry a small vial of refill oil instead of bulky leave-in conditioner bottles, refilling the pivoting cartridge quickly in a hotel bathroom.

Textured and curly hair detangling

Thick, curly hair requires generous lubrication to prevent snagging during thermal straightening. The automatic feed releases oil precisely under clamping pressure, reducing friction between the heating board and the hair cuticle. This helps prevent breakage during aggressive passes on coarse textures.

Retail bundling with proprietary serums

Brands selling hair care lines can bundle this straightener with their own branded essential oils. The removable feed cover accepts standard liquid fills, making it straightforward to market a closed ecosystem where the hardware drives repeat purchases of the consumable oil cartridges or refill bottles.

Where it is less suitable

• Very short hair or buzz cuts - The strip-shaped cartridge and heating boards require enough hair length to pass through the clamped area; extremely short styles cannot engage the dispensing zone effectively.
• Water-based sprays instead of oils - The mechanism relies on the viscosity of essential oils to meter flow through the aluminum strip gaps; thin, water-like liquids may leak continuously even when the handles are open, bypassing the spring seal.
• Wet-to-dry styling - This design is intended for oil application on dry or damp-towel-dried hair prior to finishing, not as a replacement for dedicated wet-to-dry irons that vent steam.
