At a glance
| Patent number | CN207041452U (application CN201720160367) |
| Type | China utility model (实用新型) - protects product shape and structure |
| Original title | Strap-lock handle for a bath scrubber (一种用于澡搓的绳扣手柄) |
| Patent owner | NanAn Liucheng Gaojie Graphic Designer Work Studio |
| Inventor | Shangguan Lianzhao |
| Priority date | 2017-01-19 |
| Filing date | 2017-02-22 |
| Grant date | 2018-02-27 |
| Status (China) | Lapsed - terminated for non-payment of annual fees (effective 2019-02-22, recorded 2020-02-11) |
| Patent family | Chinese filings only - no US, European, Japanese, PCT or other filings listed |
| Cited by | No later documents listed |
| Source | Google Patents (search for CN207041452U) |
What the claims cover, in plain language

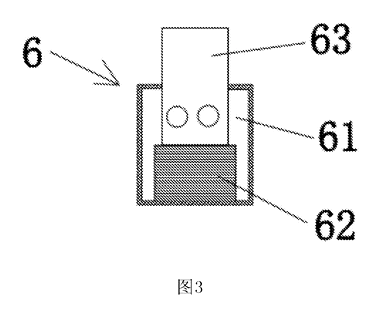

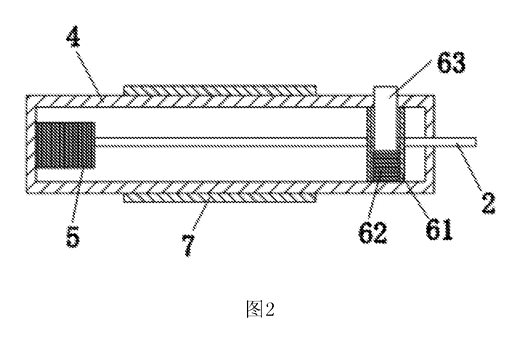

Claim 1 - a handle for a bath scrubber with a cord-lock inside that grips the scrubber strap so it does not slide, and an elastic part inside the handle; the strap passes through the cord-lock and is connected to the elastic part. The cord-lock has a spring chamber with at least two through-holes, a spring inside it, and a button with at least two holes matching the through-holes; the strap passes through both.
Claim 2 - the elastic part is a tension spring. Claim 3 - the elastic part is a rubber band. Claims 4-5 - a non-slip material on the handle, such as a rubber ring around it.
This is a simplified reading for orientation only. The legal scope is defined by the exact claim wording in the official Chinese document.
What this means for US production
This patent was filed only in China, and it lapsed in 2019 because annual fees were not paid. It no longer restricts anyone - in China or elsewhere.
Before production, keep in mind:
- Other patents may exist. Back scrubbers and cord-lock fasteners are common products, and some designs may be patented in the US. Use your own styling and have a freedom-to-operate (FTO) search done by a US patent attorney before volume production.
Customization and manufacturing
What can be customized
| Area | Options |
|---|---|
| Strap material | Nylon or PE mesh, exfoliating fabric, soft microfiber or plant-fiber blends |
| Length range | Minimum and maximum lengths set for your users |
| Handles | Straight or curved; wood-look, plastic or silicone covers |
| Cord-lock | Button lock as in the patent; color-matched button |
| Tension part | Steel spring (rust-resistant) or rubber band |
| Colors & branding | Brand colors, logo on handles |
| Packaging | Hang card, box, refill straps, gift sets with bath puffs |
Things to plan for (US market)
- Wet environment - use rust-resistant springs and drain holes so the handles dry out.
- Hygiene - replaceable straps help; give care instructions (rinse and hang to dry).
- Claims - keep to cleaning and exfoliating; avoid medical skin claims.
How a project runs
- Inquiry - strap material, length range, style and quantity.
- Design - handle shape, lock and tension part.
- Prototype - samples tested for grip, lock strength and length change.
- Pilot run - small batch to check sewing, assembly and packaging.
- Production - volume production, packaging and shipping.
Quantities & timeline
Handles and buttons are injection-molded; straps are cut and sewn from standard materials. Send us your strap material, length range, quantity and target price and we will reply with options.

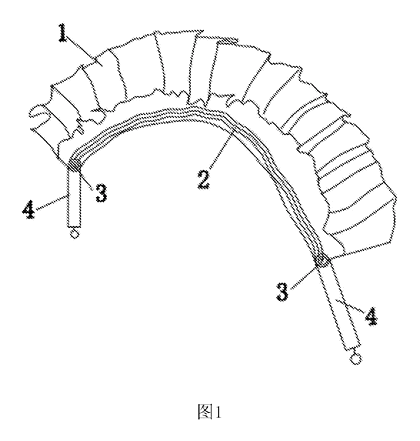

Patent drawings
Drawings reproduced from the public patent document for reference.
