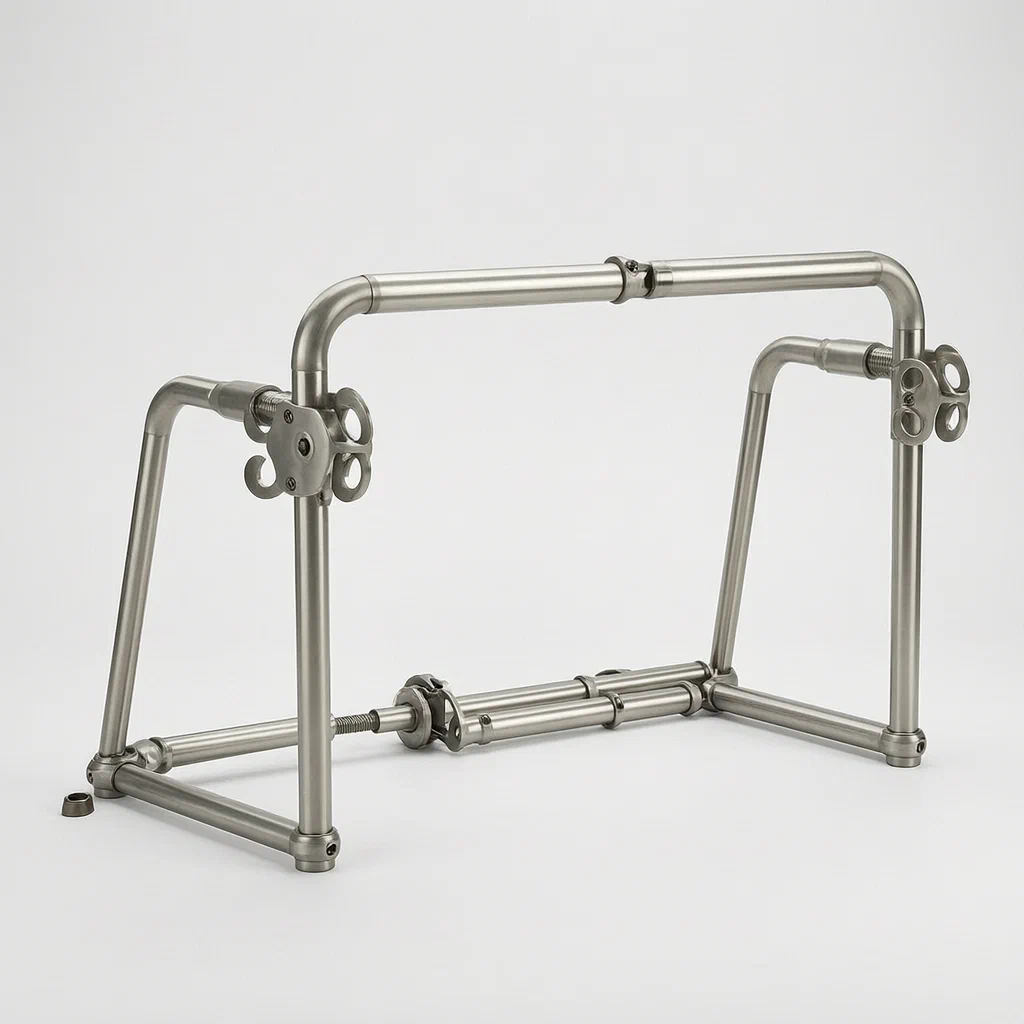

Folding Football Goal with Rotary-Head Hinge and Plug-In Base

The problem

Setting up a standard football goal takes time, multiple people, and several loose parts that can be misplaced. Portable goals meant for home yards or club practice often solve this by using lightweight pop-up frames, but those lack the rigid structure needed for repeated ball strikes. Goals built from separate tubes require matching each pole to the right connector, which slows down play and frustrates users who just want to start a game. When practice is over, disassembling these frames leaves a pile of parts that take up significant space in a garage or equipment shed.

The solution

This folding football goal addresses those issues through a linked gantry and a tool-free base.

1. The gantry (10) consists of two door frames (2) joined at the top by a runner assembly (1).
2. The runner assembly uses two identical rotary heads (11), each featuring a two-layer articulated circle portion (111) and a tangent convex extension part (112) connected to one end of a door frame.
3. A hinged pipe (12) inserts through the through-holes (113) of the crossed circle portions, allowing the two convex extensions to rotate around each other. Two lock-screws (13) secure the pipe ends.
4. The bottom of each door frame hinges to a first connector (3), which plugs into a vertical post (51) of the base (5).
5. The base joins two cross bars (52) using a connecting element (55) made of a male plug fitting (551) and a female plug fitting (552) that engage each other directly.
6. Net clamps (6) run from second connectors (53) on the base up to third connectors (7) hinged to the door frames, supporting the net.

Who it is for

• Sports equipment brands looking to add a structured, foldable goal to their backyard or training catalog without relying on flimsy pop-up designs.
• Amazon sellers and e-commerce retailers needing a compact product that ships efficiently in a smaller box, reducing freight costs compared to fixed-frame goals.
• Youth football clubs and schools that set up and break down practice areas daily, requiring a frame that folds quickly without loose hardware.
• Wholesalers supplying sporting goods stores seeking a durable, easy-to-display item that customers can understand and assemble without reading lengthy manuals.

How it works

The main parts

Setup and folding steps

1. Join the base: Insert the male plug fitting (551) of one cross bar into the female plug fitting (552) of the other cross bar. Attach the articulated elements (54) to the second connectors (53).
2. Attach the gantry: Plug the vertical posts (51) into the first connectors (3) at the bottom of the door frames (2).
3. Unfold the frames: Rotate the two door frames outward. The convex extension parts (112) swing around the hinged pipe (12) inside the crossed circle portions (111) until the goal stands upright.
4. Secure the net: Swing the net clamps (6) outward from the second connectors (53) to the third connectors (7) on the door frames, creating the depth for the net.
5. Fold down: Reverse the steps. The rotary heads allow the door frames to pivot inward flat against the base for storage.

Applications

Backyard practice

Families setting up a goal for children in a residential yard need something that goes up fast and clears away before mowing the lawn. The plug-in base and rotary hinge let one person unfold the frame without searching for missing bolts. When practice ends, the door frames fold flat so the goal fits behind a garden shed or inside a garage.

Club training sessions

Youth coaches often move equipment between different fields or drill stations during a single practice. Carrying a fully assembled goal across grass is difficult, but this design folds down into a compact shape. Staff can load several folded units into a transport cart or vehicle trunk between exercises.

School physical education

Physical education classes have limited transition time between activities. Teachers need equipment that students can help deploy safely. The step-edge design where the plug division diameter is smaller than the post diameter guides the tubes together, reducing pinched fingers and misaligned parts during class setup.

Indoor sports facilities

Multi-purpose gymnasiums frequently switch layouts for basketball, volleyball, and indoor football. Permanent goals block floor space needed for other events. A folding goal with a self-supporting base can be rolled out for a session and stored vertically against a wall afterward, preserving the facility’s usable area.

Where it is less suitable

• Professional regulation matches: Official tournaments require fixed, heavy-duty steel goals anchored into the ground to meet specific dimension and safety standards.
• High-wind outdoor locations: Because the base relies on plug fittings rather than ground stakes or heavy anchors, strong gusts may shift the frame unless additional weights are added in design.
