Foldable Multifunctional Mobile Phone Clip with Rotating Support Feet

The problem

Many mobile phone holders are single-purpose devices. A simple clip holds the phone but cannot stand alone on a table, forcing users to lean it against objects. Conversely, dedicated stands are bulky and do not attach easily to cameras or tripods. Users who need to switch between handheld shooting, tabletop video calls, and tripod-mounted photography often carry multiple accessories. Existing solutions frequently lack a unified mechanical interface, requiring additional adapters to connect a phone clip to standard 1/4-inch camera screws. This adds weight and potential points of failure. There is a need for a compact, foldable unit that secures the phone, provides stable angular positioning on flat surfaces, and integrates native tripod connectivity without external parts.

The solution

The patent describes a foldable multifunctional mobile phone clip comprising a main body and a support feet assembly.

1. The main body houses a telescopic mechanism consisting of an expansion link, an adjustable spring, and a flexible stem nut. This allows the top section to extend and lock at different heights.
2. Lower folding legs and upper folding legs are attached to the sides of the main body and the telescopic top, respectively. These legs swing inward to clamp the phone. They are fixed via screws and pads to ensure a tight grip on the device casing.
3. The key innovation lies in the bottom part body, which includes a support feet mounting hole. Inside this hole sits a support foot that is rotatably connected to the main body.

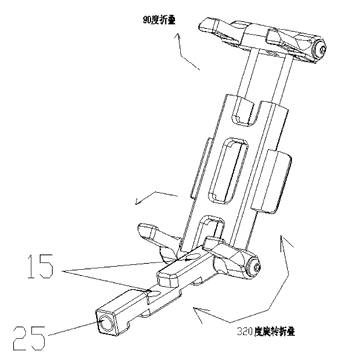

4. This support foot can rotate through a range of 0 to 320 degrees. It contains a longitudinal screw attachment hole running through its center and a horizontal screw attachment hole at its end. Both are sized as standard 1/4-inch threads.
5. A head is positioned at the bottom of the main body, equipped with holding screws, allowing the entire clip to be mounted onto a larger support structure if needed.

Who it is for

• Travel content creators who need a lightweight mount that works on hotel desks and connects to portable tripods without adapters.
• Vloggers and live streamers requiring quick angle adjustments during recording sessions on flat surfaces.
• Accessory manufacturers looking to integrate multi-functionality into existing phone holder lines to reduce SKU complexity.
• Corporate buyers seeking versatile conference room tools that allow phones to be used as webcams or document cameras.

How it works

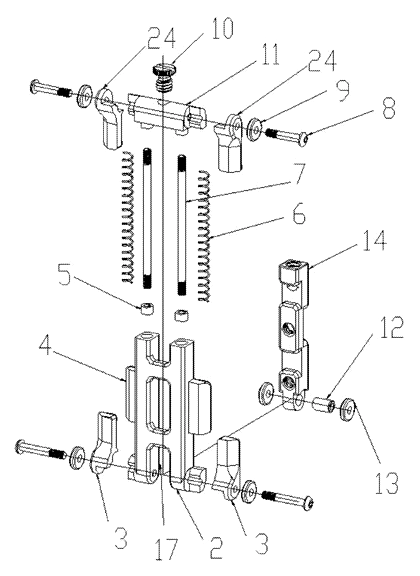

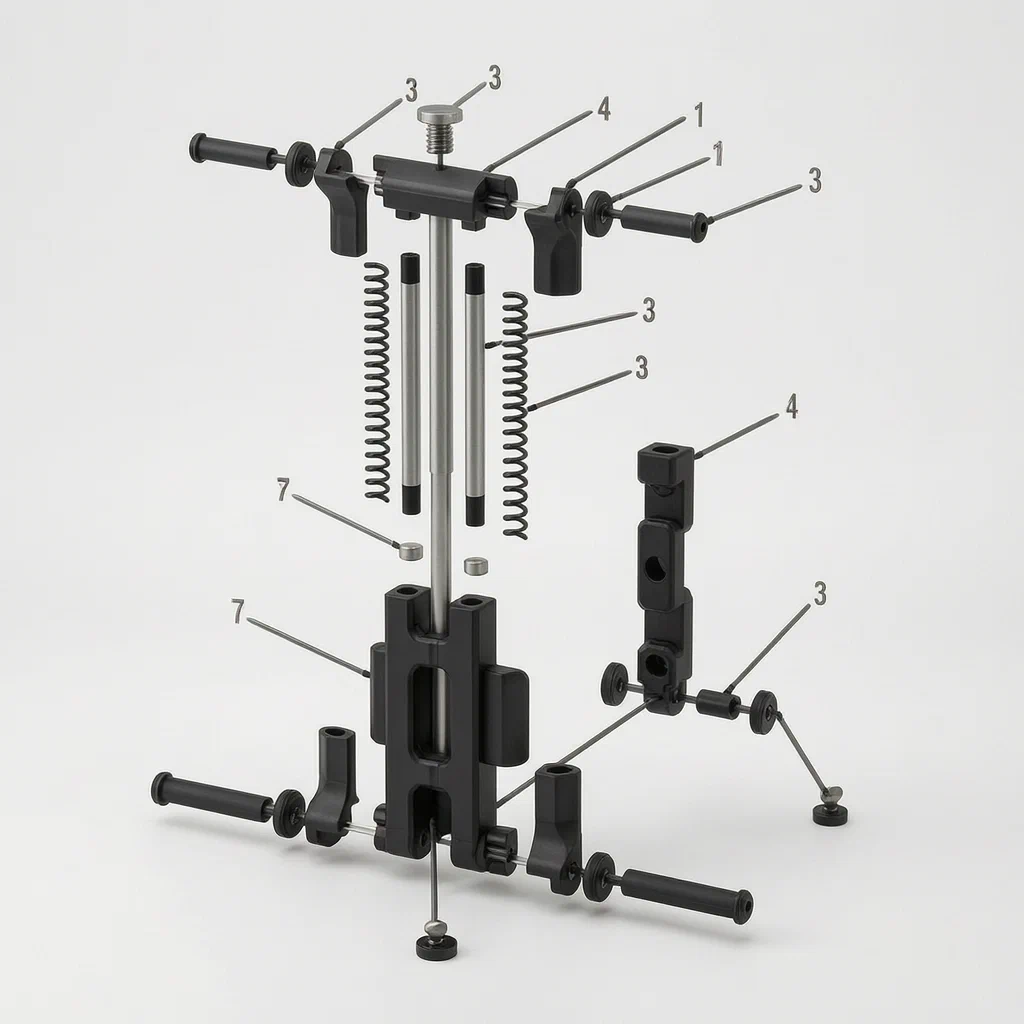

The main parts

Operating steps

1. Insert Phone: Open the upper and lower folding legs. Place the mobile phone between them. Close the legs until the pads press against the phone’s edges.
2. Adjust Height: Loosen the flexible stem nut to extend or retract the telescopic body. Tighten to lock the desired height.
3. Tabletop Use: Rotate the support foot out from the bottom mounting hole. Adjust the angle of the foot (up to 320 degrees) to prop the clip upright or tilted on a desk.
4. Tripod Connection: Align the longitudinal or horizontal 1/4-inch screw hole on the support foot with the bolt of a camera tripod or selfie stick. Screw in to secure.
5. Accessory Attachment: Connect additional items like lights or microphones to the available 1/4-inch ports on the foot or head.

Applications

Tabletop Video Calls

Users place the clip on a desk and rotate the support foot to achieve an eye-level angle. The folding legs keep the phone steady during long meetings, eliminating the need for a separate stand.

Travel Photography

Photographers attach the clip’s 1/4-inch screw hole directly to their existing camera tripod. This turns the phone into a secondary monitor or a primary shooting device without carrying extra adapters, saving space in a camera bag.

Selfie Stick Integration

The horizontal screw hole on the support foot allows the clip to be mounted sideways on a selfie stick. This enables landscape-oriented video recording while walking, providing a stable platform compared to hand-holding.

Live Streaming Setup

Streamers can adjust the telescopic height to position the phone at the correct distance from a microphone or lighting rig. The robust clamping mechanism ensures the device stays fixed during intense activity.

Where it is less suitable

• Heavy tablet devices - The patent specifies a mobile phone clip; the clamping force and structural integrity are designed for lighter smartphones, not large tablets.
• Rugged industrial environments - The plastic and metal components described are intended for consumer electronics handling, not drop-proof or waterproof industrial use.
• Fixed-position installations - If the phone never needs to move or change angles, a simpler static adhesive mount may be more cost-effective than this complex mechanical assembly.
