At a glance
| Patent number | CN207168269U (application CN201720325204) |
| Type | China utility model (实用新型) - protects product shape and structure |
| Original title | Telescopic leg structure for a children’s bedside bed (一种儿童床边床的支脚伸缩结构) |
| Patent owner | Dongguan Hongshuo Children’s Products Co., Ltd. |
| Inventors | Wang Yongsheng |
| Filing date | 2017-03-30 |
| Grant date | 2018-04-03 |
| Status (China) | Lapsed - terminated for non-payment of annual fees (recorded 2022-03-11) |
| Patent family | Chinese filings only - no US, European, Japanese, PCT or other filings listed |
| Cited by | 2 later documents |
| Source | Google Patents (search for CN207168269U) |
What the claims cover, in plain language

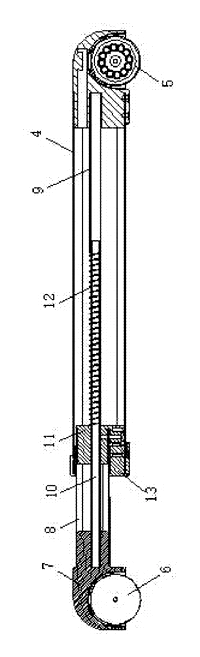

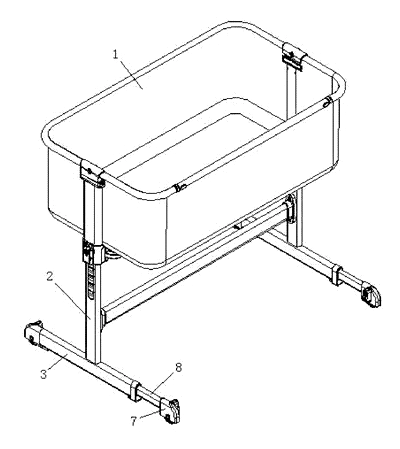

Claim 1 - a telescoping foot structure for a children’s bedside bed: an outer foot tube and a telescoping tube inserted into it from one end, with a telescoping wheel at the tube’s outer end and its inner end sliding inside the foot tube. A telescoping outer tube in the foot tube holds a sliding telescoping inner tube connected to the telescoping tube, and a spring around the inner tube, held between the telescoping tube and the outer tube, returns the wheel.

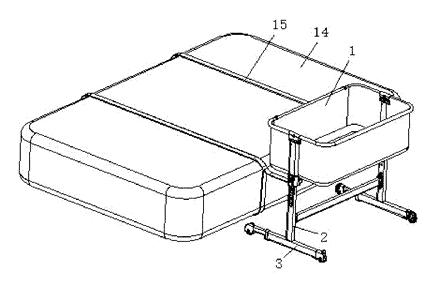

Claim 2 - a piston on the inner end of the telescoping tube, sliding in the foot tube; the spring presses on the piston. Claim 3 - the wheel is on a wheel seat at the end of the telescoping tube. Claim 4 - a stop at the piston end of the foot tube and a fixed wheel at its other end. Claim 5 - the feet are at the bottom of the crib’s poles; the crib is placed beside the adult bed with the wheels retracted and fastened with safety straps.
This is a simplified reading for orientation only. The legal scope is defined by the exact claim wording in the official Chinese document.
What this means for US production
This patent was filed only in China and has lapsed, so it no longer restricts anyone in China either. It has no US or other foreign counterpart.
Two points to settle early:
- Other patents may exist. Bedside sleepers, their attachment systems and height adjusters are patented by several US and European juvenile brands, so a freedom-to-operate (FTO) review of the base and attachment is needed before tooling.
- Attachment safety. The bedside sleeper standard puts great weight on the gap between crib and adult bed; strap design and the retracted-foot position are tested together.
Customization and manufacturing
What can be customized
| Area | Options |
|---|---|
| Crib | Bedside sleeper size, mesh sides, drop-down side panel, height settings |
| Feet | Steel or aluminum tubes; travel of the telescoping wheel; spring force |
| Wheels | Locking casters, soft treads for wood floors |
| Attachment | Strap type, buckles, anchor plate under the adult mattress |
| Fabrics | Breathable mesh, removable washable liners, colors |
| Extras | Storage basket, rocking mode, carry bag for travel versions |
Things to plan for (US market)
- 16 CFR 1222 (bedside sleepers) - the CPSC standard, incorporating ASTM F2906, covers stability, the gap to the adult bed, attachment and warnings; mandatory third-party testing.
- 16 CFR 1218 (bassinets and cradles) - applies when the product is also used as a free-standing bassinet.
- CPSIA - lead and phthalate limits, tracking labels and a Children’s Product Certificate.
- Product registration card (16 CFR 1130) - required for durable infant products.
- Mattress - the pad meets the standard’s thickness and fit rules and 16 CFR 1632/1633 flammability where applicable.
How a project runs
- Inquiry - crib size, height range, attachment method and quantity.
- Design - foot tubes, piston and spring travel, casters, straps.
- Prototype - samples tested against several adult bed frames.
- Pilot run - CPSC-accepted lab testing, labels and manual.
- Production - tube bending and welding, plastic parts, sewing, assembly.
Quantities & timeline
The feet need tube cutting and bending fixtures, the pistons and wheel seats need small injection molds, and the crib body needs frame tooling and sewn mesh panels. Certification testing takes most of the time. Send us your crib size, attachment method, materials, quantity and target price and we will reply with options.
Patent drawings
Drawings reproduced from the public patent document for reference.
