Updated October 23, 2026Wide-Opening Folding Bolt Cutter
A bolt cutter redesigned around the handles. Two side links and meshing gear-shaped ends tie the handles together, so they can swing open as wide as 130-190° - the patent says this gives a real labor-saving effect. Each handle also folds in half with a latch, so a full-size cutter fits in a shorter toolbox or truck box.
- China utility model - lapsed
- No filings outside China
- Hand tools
- Forged / stamped steel, no electronics
Splat! What let you down?
↔️
Opens 130-190°
Linked handles swing much wider than an ordinary bolt cutter for more leverage on each cut.
⚙️
Meshing handle ends
Gear-tooth (or rounded) ends on the handles stay in contact, so both handles move evenly.
📏
Folds in half
Each handle has a hinge and a spring latch - a long cutter packs into a short box.
🔩
Familiar cutting head
Standard mirror-image jaws, side plates and adjustment bolts - no special blades needed.
Bring this product to market
- ✓ Patent vetted China-only family and legal status checked
- 2 Product brief · now How it works, uses and options written up
- 3 Prototype First samples for buyers to review
- 4 Pilot run Small first batch for launch customers
- 5 Volume production Repeat orders at scale
Buyer interest
– of 100 buyers needed to start prototyping
One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.
Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.
The problem
A bolt cutter gets its power from long handles, but on a conventional cutter the handles can only open a limited angle before the jaws are fully open. Long handles are also awkward to carry and store: a 24- or 36-inch cutter does not fit in most toolboxes.
The solution
The patent changes how the handles connect to the cutting head:
- The cutting head is conventional - two mirror-image jaws (11, 12) held between side plates (21).
- Each handle (51, 52) is pinned to its jaw as usual, but the two handles are also tied together by two side links (61, 62), pinned just below the jaw pivots.
- The top ends of the handles are rounded or gear-toothed around the link pivots and stay in contact or in mesh as the handles move.
- With this geometry the handles can open to an angle of 130-190°, which the patent describes as giving a better labor-saving effect.

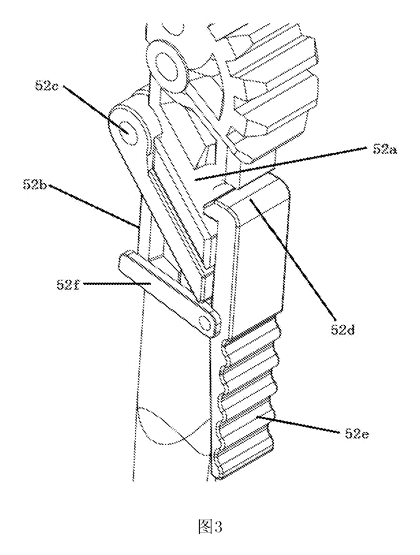

- Each handle has a folding joint (52c) and a spring latch (52d, 52e), so the lower half folds up alongside the head for storage.
Who it is for
- Tool brands and importers looking for a differentiated bolt cutter for hardware stores and online sales.
- Contractors, rescue and maintenance crews who carry cutters in vehicles and want them compact.
- Farm, fencing and security suppliers cutting chain, wire and padlock shackles.
How it works

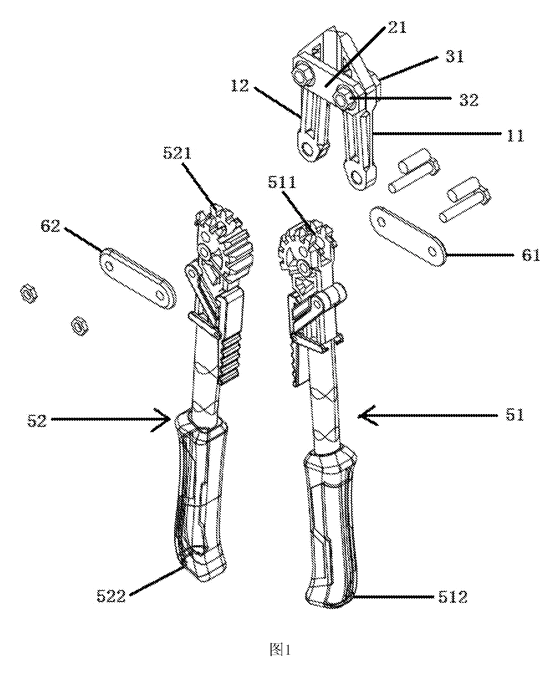

The main parts
| No. | Part | What it does |
|---|---|---|
| 11, 12 | Jaws | Mirror-image cutting heads. |
| 21 | Side plates | Hold the jaws together at their middle pivots. |
| 31, 32 | Bolts and nuts | Pivot pins for the head. |
| 4 | Grip pattern | Anti-slip texture on the head. |
| 51, 52 | Handles | Long levers; each is pinned to one jaw. |
| 511, 521 | Handle ends | Rounded or gear-toothed ends that stay in contact while the handles move. |
| 513 | Boss | Raised hook on the outside of each handle end; holds the folded lower half. |
| 61, 62 | Side links | Two links, one on each face, joining the two handles just below the jaw pivots. |
| 52a, 52b | Upper and lower handle halves | Joined by the folding pivot (52c). |
| 52d, 52e | Latch hook and release lever | Lock the handle straight; press the lever to fold. |
Cutting

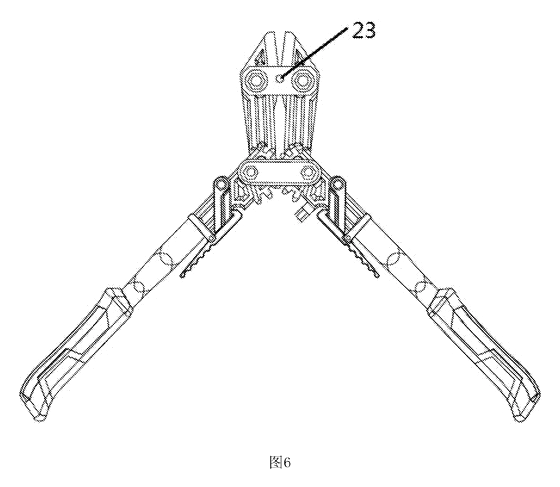

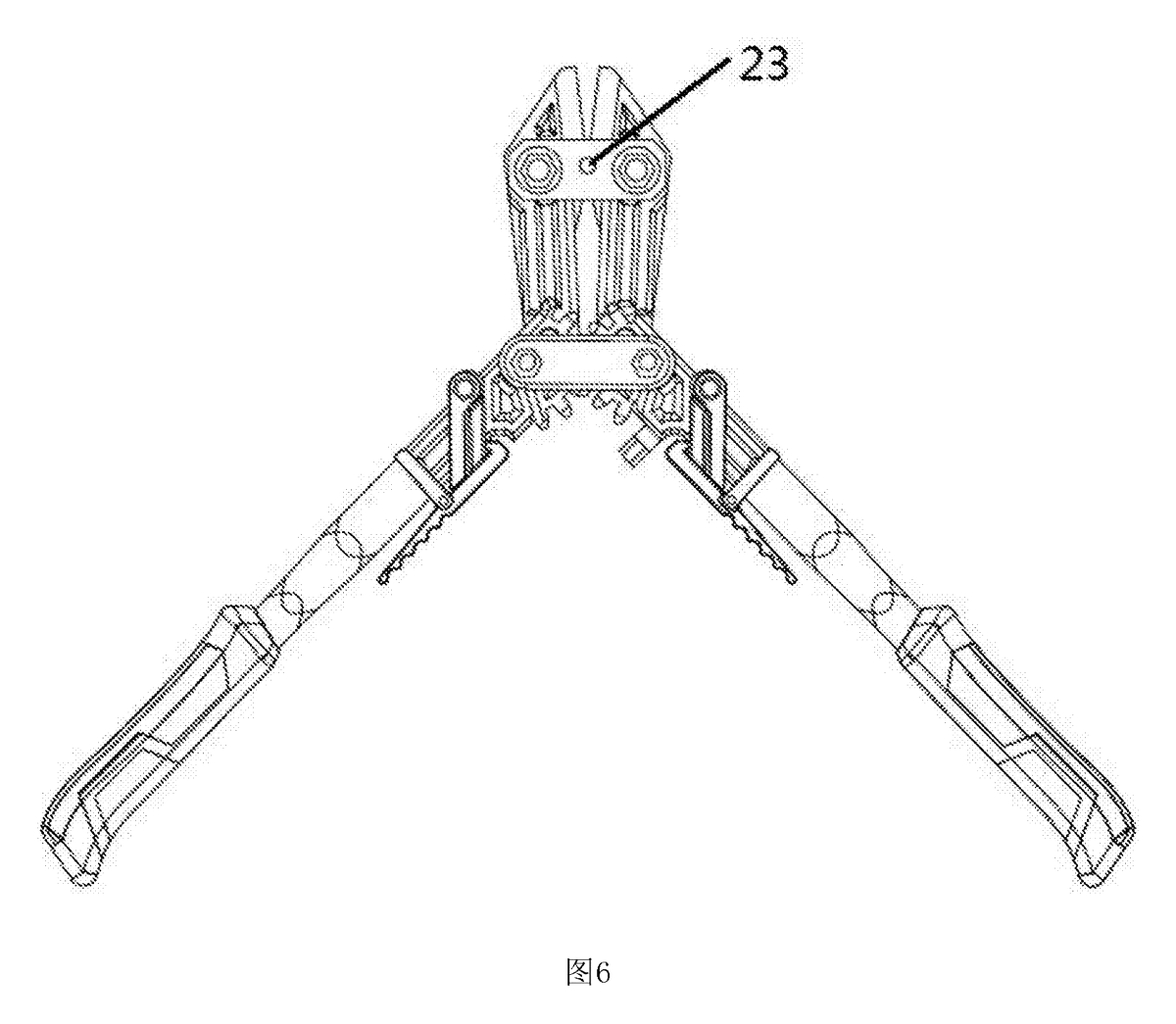

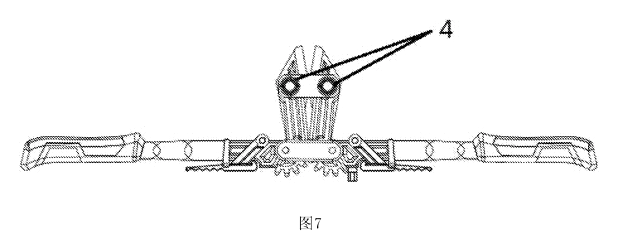

- Open the handles. Because the handles are linked by the side links (61, 62) and their toothed ends stay in mesh, they swing apart evenly - up to 130-190° according to the claims.
- Place the chain, rod or shackle deep in the jaws.
- Close the handles. The long handle travel turns into a short, strong closing movement at the jaws.

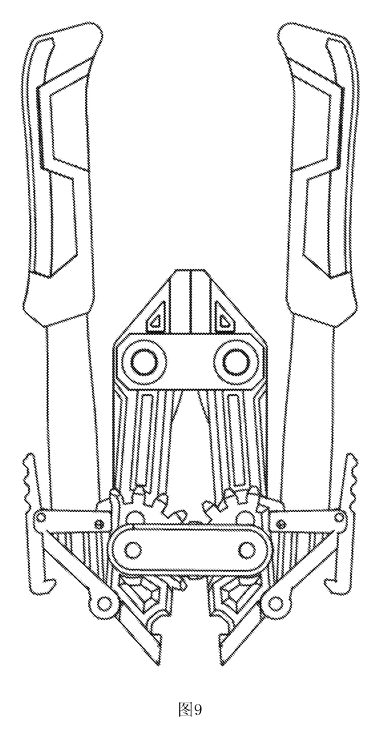

Folding for storage
- Press the release lever (52e) - the latch hook (52d) lets go of the upper half.
- Fold the lower half of each handle outward and up along its pivot (52c).

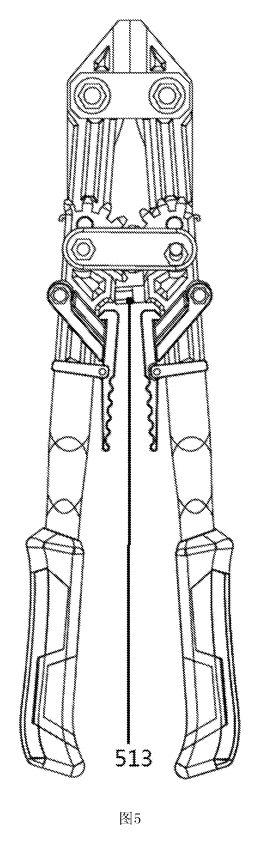

- A rod on the lower half snaps into the hook (513) on the handle end, holding it folded.
Applications
Construction and rebar work
Cutting wire mesh, light rebar, tie wire and threaded rod on site. The folded cutter fits in a gang box.
Fencing and farms
Chain-link, high-tensile wire and chain - the tool rides in a truck or tractor box.
Property management and locksmith work
Removing abandoned padlocks and chains from gates, lockers and storage units.
Vehicle and emergency kits
A compact folding cutter for fleet vehicles, utility trucks and emergency response kits.
Hardware retail and online sales
“Folds in half” and “opens wider” are easy features to show on a package or product video.
Where it is less suitable
- Hardened steel (high-security shackles, hardened chain) - beyond what most manual bolt cutters can cut; a cutting wheel is needed.
- Daily heavy-duty production cutting - a powered rebar cutter is faster.
Frequently asked questions
How much easier is it to cut?
The patent states that the wide opening angle (130-190°) gives a better labor-saving effect, but it gives no figures. Cutting force is measured on prototypes for each size and jaw type.
What can it cut?
That depends on length, jaw steel and heat treatment. Capacity is set during design and printed on the label - typical targets are soft wire, chain, rod and padlock shackles below a stated diameter.
Does the folding joint make the handles weaker?
The joint is designed and tested for the handle loads; the latch locks the halves straight during use. A non-folding version is also possible.
Can the jaws be replaced?
Yes, replaceable jaw sets can be specified, as on many professional bolt cutters.
Why are the handle ends toothed?
The meshing ends keep both handles moving together and support the wide opening. The patent also allows plain rounded ends.
What sizes are possible?
Common bolt-cutter lengths can be made; the link geometry is scaled for each size.
Can this design be made and sold in the US?
The patent was filed only in China and lapsed in 2025, so it does not restrict anyone. Other bolt-cutter designs may be patented - see Patent & Production - so we recommend a freedom-to-operate check before volume production.
Are you affiliated with the patent owner?
No. IP2M is an independent design and manufacturing service working from the public patent document.
Request a quote
Click Request a Quote below to see our email address - copy it, or open your email app with a ready-made message. Please mention patent CN207206226U in the subject.
Helpful details to include:
- Your company and sales channel (hardware retail, Amazon, industrial supply…)
- Lengths and jaw type
- Cutting capacity you need
- Grips, finish, branding and packaging
- Estimated quantity and target price
- Timeline - when you would like samples and the first shipment
You can also reach us at (332) 203-9997.
Explore this product
Interested in building this?
Tell us your target market, quantity and timeline. We reply with options for prototyping, small-batch runs or volume production.
Send your inquiry to
Please put CN207206226U in the subject line and tell us your company, country, estimated quantity and timeline.
Prefer to talk? Call (332) 203-9997.
More product-ready patents
All Tools & Workshop patents →
Tools & Workshop
Rolling Tool Box with Telescoping Step Ladder
Telescoping A-frame ladder with an attached rolling tool box that slides to your working height.
Patent CN206290197U
Tools & Workshop
Folding 3-Handle Wrench Multi-Tool
Folding three-handle wrench multi-tool with magnetic screwdriver bits, saw, file and bottle opener.
Patent CN205290875U
Tools & Workshop

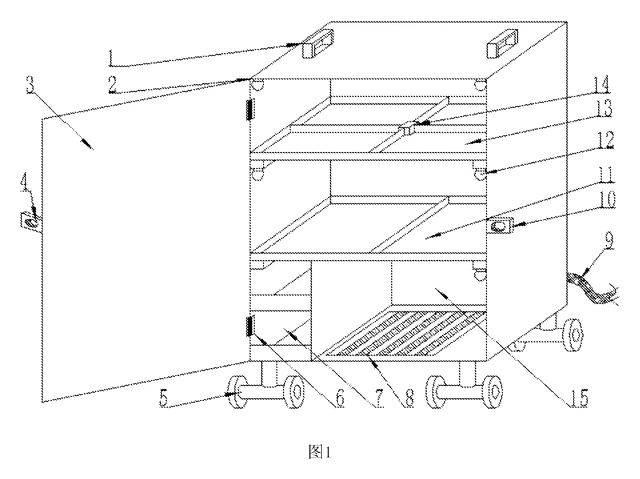

Rolling Auto-Repair Tool Cabinet with Built-In Lights
Lockable rolling tool cabinet for car repair with interior lights, a lubricant tray, parts drawers and a tool bay.
Patent CN205989314U
Tools & Workshop

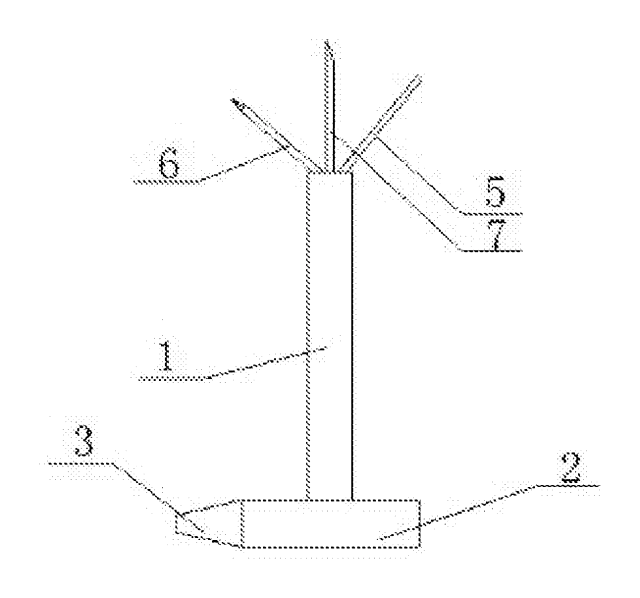

Nail-Holding Hammer with Fold-Out Drivers
Hammer with a nail-holding T-slot in the head and fold-out drivers stored in the handle.
Patent CN205254927U
Tools & Workshop

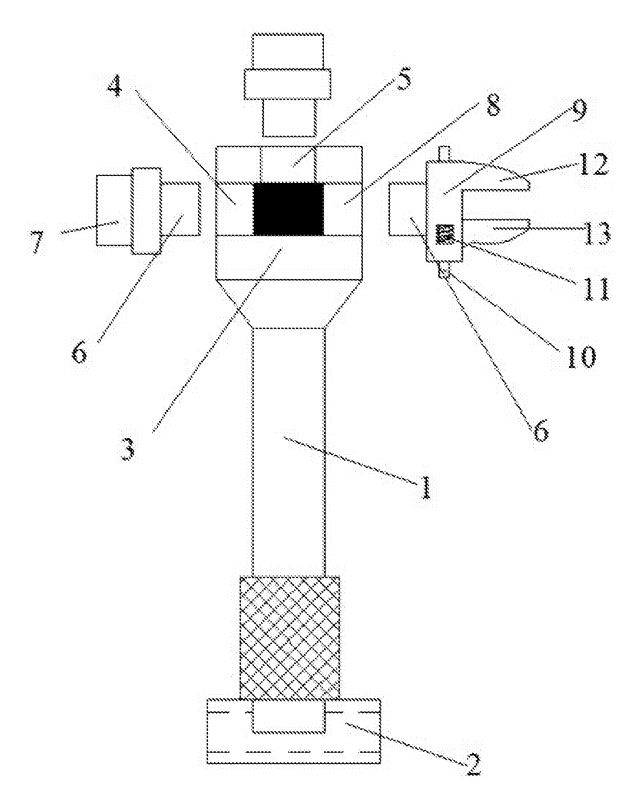

Modular Wrench with Screw-On Heads
Wrench handle with a three-way threaded hub for screw-on adjustable and hex heads, plus a pipe sleeve.
Patent CN206216564U
Tools & Workshop

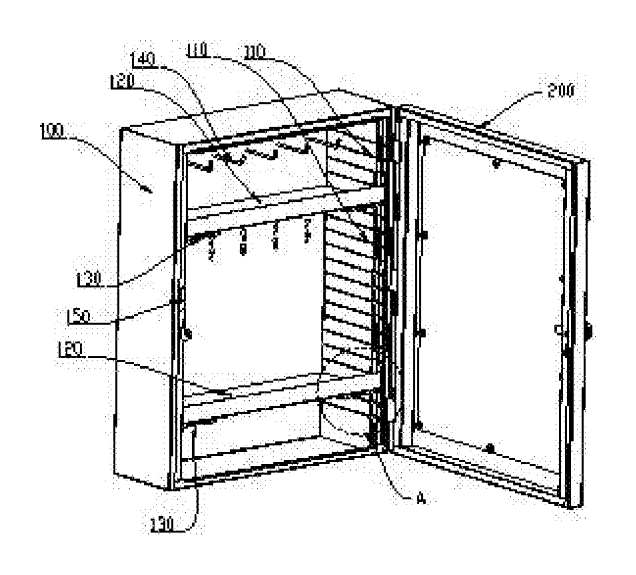

Adjustable-Shelf Tool Cabinet with Window Door
