Tape-Free Reusable Shipping Box with Zigzag Interlocking Flaps

The problem

Most shipping cartons are sealed with tape. Opening them means cutting, which damages the flaps, the contents can be scratched by the knife, and the carton is rarely reused. Empty boxes also take space in storage and on return trucks. According to the patent, this box is sealed without any tape, can be used many times, and folds flat to cut storage and transport costs for empty boxes.

The solution

Lid:

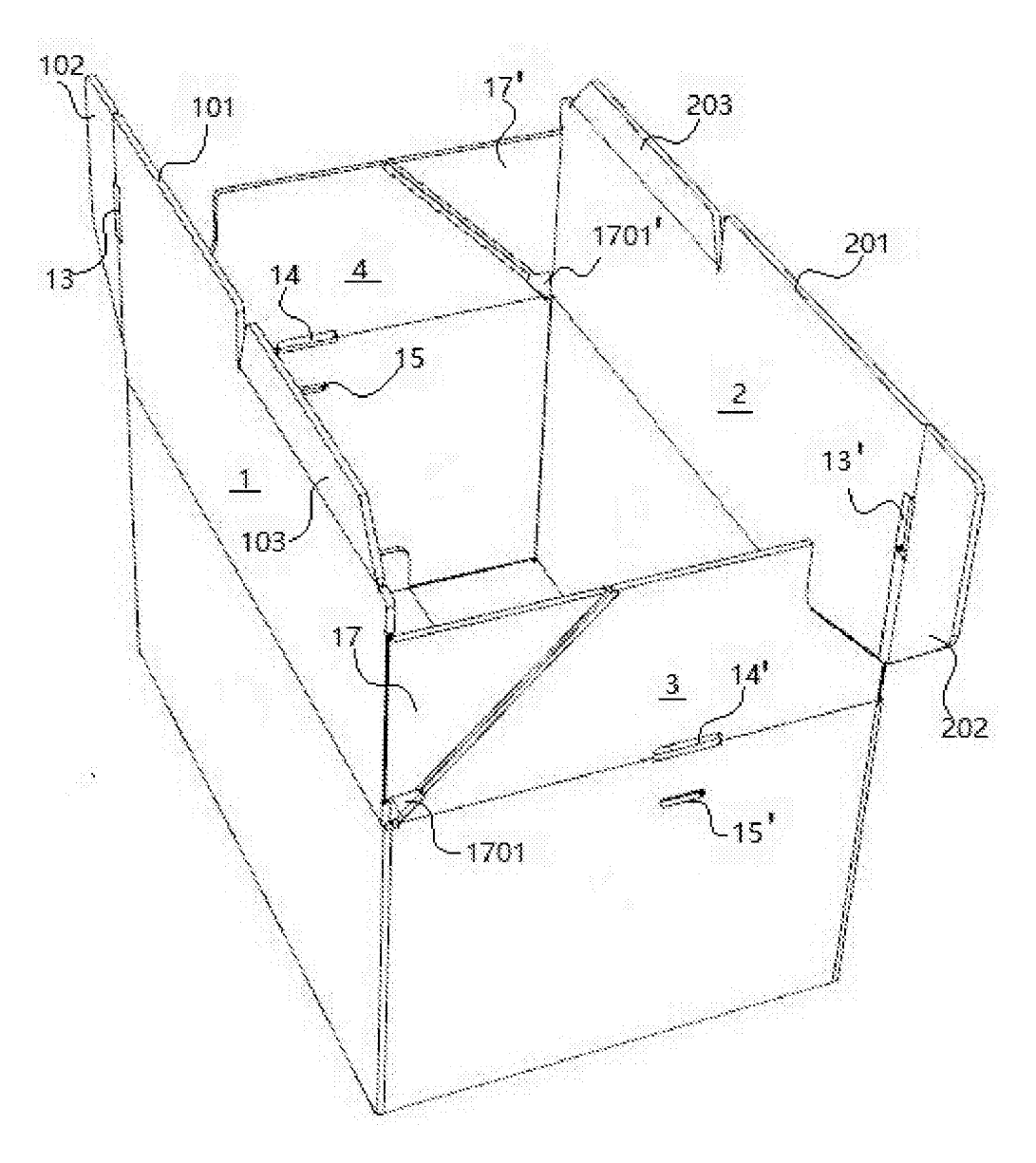

1. The lid has four flaps: a first (1) and second (2) main flap facing each other, and a third (3) and fourth (4) flap facing each other. All fold inward, with the main flaps pressing on the third and fourth.
2. The edges of the first and second flaps (101, 201) are zigzag-shaped and mirror images, so when the flaps overlap the zigzags mesh and stop them sliding.
3. The first flap ends in a first tuck tab (102) and the second in a second tuck tab (202), on different sides; each tucks into a side wall and holds its flap down.
4. Holes (13, 14, 15 and 13’, 14’, 15’) line up through the flaps and side walls so a U-shaped clip can lock the lid. Laminate strips (17, 17’) join the main flaps to the third and fourth flaps.

Bottom:

5. The bottom flaps (9, 10, 11, 12) work the same way: the first and second bottom flaps have mirrored zigzag edges (901, 1001) that mesh, and grip tabs (902, 1002) that hook together. A fold piece (903) and stiffening pieces (904, 1004) strengthen the bottom.

Who it is for

• Packaging manufacturers offering returnable or tape-free cartons to e-commerce and retail customers.
• E-commerce brands that want an easy-open, easy-return box and a sustainability story.
• Logistics and 3PL operators running closed-loop shipping between warehouses and stores.
• Rental and subscription businesses - clothing, equipment, meal kits - whose boxes come back.

How it works

The main parts

Packing and reusing

1. Open the flat box and hook the bottom grip tabs together - the zigzag bottom flaps lock.
2. Pack the goods.
3. Close the lid - fold in the side flaps, lay the main flaps over each other so the zigzags mesh, tuck the tabs into the side walls and push the U-clip through the holes.
4. To reuse, pull the clip, lift the flaps, unhook the bottom tabs and press the box flat.

Applications

E-commerce returns

Customers open the box without a knife and send items back in the same carton.

Warehouse-to-store shuttles

Returnable cartons run in closed loops between distribution centers and stores.

Rental and subscription services

Clothing, toy and equipment rental boxes go out and come back many times.

Office and home moves

Moving companies rent out boxes that assemble without tape and fold flat after the move.

Retail gift and premium packaging

A tape-free, neat lid gives a better unboxing experience.

Where it is less suitable

• Tamper-evident shipments - without tape there is no seal to show tampering unless a security clip or label is added.
• Very heavy loads - the interlocks are designed for normal parcel weights; heavy goods need stronger board and testing.
• One-way shipping at the lowest cost - the extra die-cut features add some cost over a plain carton.
