Shock-Absorbing Claw Hammer with Interchangeable Strike Faces and Built-In Light

The problem

On construction and repair sites, repeated hammering sends vibration directly through the tool into the user’s hand and wrist. Over a full shift, this constant shock leads to fatigue and discomfort. Workers also frequently need to switch between a flat striking surface for general driving and a rounded one for setting fasteners flush without marring the wood, which usually requires carrying two separate hammers. Starting a nail in tight spaces or overhead often forces the user to hold the fastener with their fingers, risking injury when the first strike lands. Finally, many tasks take place in unlit crawl spaces, attics or outdoor settings after dark, where balancing a flashlight while swinging a hammer is impractical.

The solution

This hammer combines four mechanical features into a single hand tool:

1. Damping springs (6) are installed between an inner connecting rod (7) and an outer handle (5). Several springs are evenly distributed along the joint area to spread the load of each impact.
2. A square hammer face (1) and a circular tup (4) attach via threaded engagement. The square face threads onto the goat’s horn tup (claw head) (3), while the circular face threads into a tup mounting groove (9) at the end of the handle, or vice versa, letting the user swap shapes as needed.
3. A magnetic nail groove (10) formed by three cross spacing grooves sits on the lateral wall of the square face, holding a nail in position for the initial tap. An anti-skidding percussion face (11) is fixed on the bottom of the square hammer.
4. A movable plate (8) is rotatably connected by a shaft inside movable plate mounting grooves (13) cut into symmetrical sides of the connecting rod. It folds out to provide light from an embedded headlamp (12), turned on by a light switch (14) and powered by a storage battery (15) fixed inside the plate.

Who it is for

• Construction tool brands looking to add a multi-function, shock-reducing hammer to their catalog for professional contractors.
• Wholesalers serving hardware stores that want a single SKU covering both flat-face framing and round-face finish work.
• Amazon sellers in the hand-tool niche seeking a differentiated product with visible features like the magnetic nail starter and built-in light for listing images.
• Facility maintenance departments purchasing for in-house repair teams who work in varied lighting conditions and need to drive different fastener types throughout the day.

How it works

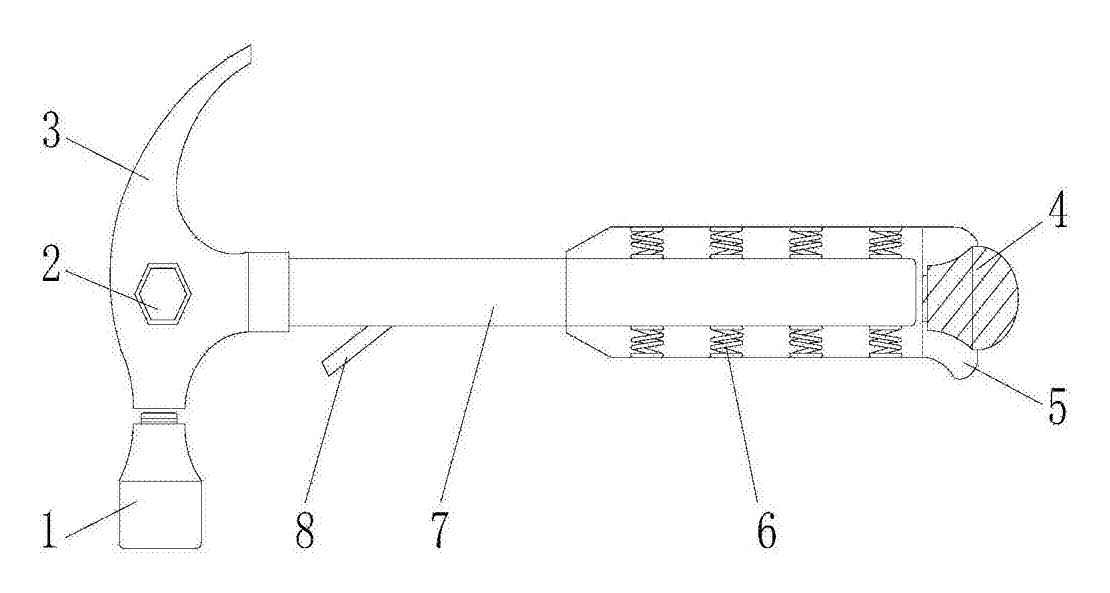

The main parts

Operating steps

1. Select the strike face. Thread the square hammer (1) onto the goat’s horn tup (3) for general driving, or remove it and thread the circular tup (4) into the tup mounting groove (9) for finish work. The unused face can be stored by threading it into the alternate mounting point.
2. Start a nail. Place the nail tip into the band magnetic nail groove (10) on the side of the square face. The magnet holds it upright. Position the nail tip against the work surface and tap lightly.
3. Drive the fastener. Swing the hammer. As the blow lands, the connecting rod (7) compresses the damping springs (6) against the handle (5), distributing the impact energy rather than transmitting it all to the hand.
4. Use the hex recess. If a hex screw or nut needs turning, fit it into the hexagonal grooving (2) on the side of the claw head and use the handle as a lever.
5. Turn on the light. In dim conditions, pivot the movable plate (8) outward from the mounting groove (13) until it angles away from the connecting rod. Flip the light switch (14) to power the headlamp (12) from the storage battery (15).

Applications

Framing and rough carpentry

Carpenters driving large nails benefit from the anti-skidding percussion face and the damping springs, which reduce the jolt of heavy blows over long shifts. The magnetic nail slot allows one-handed starts when the other hand is bracing lumber.

Finish carpentry and trim work

When setting molding or delicate trim, the user unscrews the square face and threads on the circular tup. The rounded profile sets fasteners below the wood surface without leaving sharp edge marks.

General facility maintenance

Maintenance technicians often encounter hex fasteners alongside nails. The hexagonal grooving on the claw side lets them turn a hex screw or nut without returning to a toolbox for a wrench.

Attic, basement and evening repairs

Crawl spaces and unlit rooms make it difficult to see the strike zone. The fold-out headlamp illuminates the work area directly from the tool, removing the need to hold a separate flashlight.

Where it is less suitable

• Heavy demolition or sledgehammer tasks. The damping springs and threaded faces are designed for standard hand-hammer blows, not wrecking-level impacts.
• Environments requiring intrinsically safe tools. The storage battery, switch and headlamp are electrical components; they are not described as explosion-proof for hazardous gas zones.
• Precision metalworking. Machinists typically use dedicated ball-peen or cross-peen hammers without magnetic nail slots or built-in lights.
