Patent Information & Production OptionsPhone Clip Mount with Fold-Out Stand Leg · Patent CN207394276U

Patent CN207394276U and its invention twin CN106989257B: bibliographic data, legal status, family, a plain-language reading of the claims, plus customization, US compliance points and how a manufacturing project runs.

At a glance

Patent numberCN207394276U (application CN201720575338.9)
TypeChina utility model (实用新型) - protects product shape and structure
Original titleConnecting seat and phone clip (一种连接座和手机夹)
Patent ownerBeijing Haise Technology Co., Ltd. (北京海瑟科技有限公司)
InventorsZhao Liang, Liu Chunlin
Filing date2017-05-23 (priority 2017-03-01)
Grant date2018-05-22
Status (China)Utility model given up (recorded 2023-03-07). Chinese law lets an applicant file a utility model and an invention patent for the same design on the same day and keep only one; the owner gave up this utility model when the invention patent CN106989257B (application CN201710366727.5) was granted. CN106989257B is in force in China; an invention patent lasts at most 20 years from filing (to 2037-05-23)
Patent familyChinese filings only - no US, European, Japanese, PCT or other filings listed
Cited by3 later documents
SourceGoogle Patents (search for CN207394276U and CN106989257B)

What the claims cover, in plain language

Claim 1 - a connecting seat with a body, a connector on top for a camera or phone clamp, and at the bottom a rotating support leg inside a storage slot, pivoted to the slot’s side walls. The bottom of the body is flat with dovetail edges for a quick-release clamp, and/or the leg’s end has a screw hole for a quick-release plate.

Claim 2 - the body is two parallel legs with the slot between them. Claim 3 - triangular feet, wider than the legs, whose sloping faces form the dovetail; the support leg is pivoted in the feet. Claims 4-5 - a joint housing on top in which the connector turns and locks: base with arc slot, two clamp pads, cover and locking knob clamping a ball connector. Claims 6-7 - the rotation of the connector and of the support leg. Claim 8 - a phone clip made of the connecting seat plus a clamp.

This is a simplified reading for orientation only. The legal scope is defined by the exact claim wording in the official Chinese documents, and the claims of the invention patent CN106989257B may differ from the utility model.

What this means for US production

These patents were filed only in China. The invention patent CN106989257B is in force in China, so making or selling this design in China would need the owner’s permission while it lasts (at most until 2037-05-23). There is no US or other foreign counterpart, so these patents do not restrict the design outside China.

Before production, keep in mind:

  • Other patents may exist. Phone mounts, tripod heads and quick-release systems are crowded categories with many US utility and design patents. Use your own styling and have a freedom-to-operate (FTO) search done by a US patent attorney before volume production.
  • Trademarks. “Arca-Swiss” is a trademark; describe compatibility in generic terms (“Arca-type quick-release clamp”) unless you have permission.

Customization and manufacturing

What can be customized

AreaOptions
BodyCNC-machined or die-cast aluminum; glass-filled nylon for a budget version
FinishAnodized colors, sandblasted or matte black; laser-engraved logo
TopBall joint with 1/4"-20 screw; cold-shoe add-on - to be confirmed in design
BaseDovetail width matched to common quick-release clamps; 1/4"-20 hole
Phone clampSpring clamp size range, rubber pads, landscape/portrait rotation
KitsBundles with mini tripod, selfie stick or carry pouch

Things to plan for (US market)

  • Thread standard - US photo gear uses 1/4"-20 UNC threads; specify these instead of metric.
  • Load rating - state a tested maximum load and do not overstate it in listings.
  • Materials - check coatings and rubber pads for California Proposition 65 substances.
  • Packaging claims - “compatible with” claims for named phone or tripod brands need care; use generic sizes.

How a project runs

  1. Inquiry - material, finish, phone clamp range and quantity.
  2. Design - dovetail and thread details, knob and leg friction, styling.
  3. Prototype - machined samples for fit and stability tests.
  4. Pilot run - small batch to check tolerances and finish.
  5. Production - volume production, packaging and shipping.

Quantities & timeline

CNC machining suits small first orders; die-casting or molding needs tooling and suits larger runs. Send us your material, finish, quantity and target price and we will reply with options.

Patent drawings

Phone Clip Mount with Fold-Out Stand Leg - Patent Fig. 1
Fig. 1 - Exploded view: 1 body; 2 ball connector; 3 support leg; 4 slot; 11, 12 legs; 13 joint housing; 14 dovetail feet; 32 pivot screw; 131 base; 132, 133 clamp pads; 134 cover; 135 knob; 136 arc slot; 137 screw.
Phone Clip Mount with Fold-Out Stand Leg - Patent Fig. 2
Fig. 2 - Support leg stored in the slot.

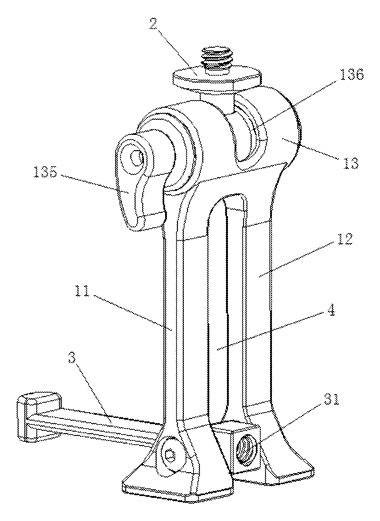

Phone Clip Mount with Fold-Out Stand Leg - Patent Fig. 3
Fig. 3 - Support leg folded out; 31 screw hole.
Phone Clip Mount with Fold-Out Stand Leg - Patent Fig. 4
Fig. 4 - Rotation of the connector (180 degrees) and of the support leg (360 degrees).
Phone Clip Mount with Fold-Out Stand Leg - Patent Fig. 5
Fig. 5 - Use one: on a quick-release clamp (6) with phone clamp (5).

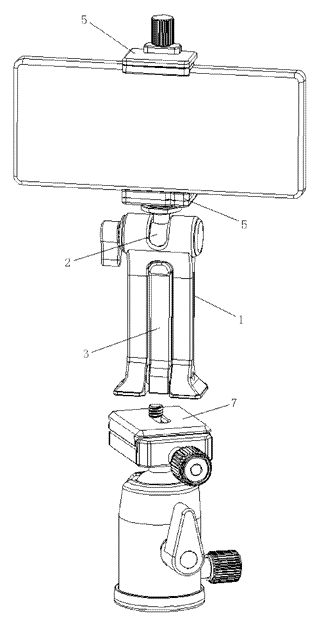

Phone Clip Mount with Fold-Out Stand Leg - Patent Fig. 6
Fig. 6 - Use two: on a quick-release plate (7).
Phone Clip Mount with Fold-Out Stand Leg - Patent Fig. 7
Fig. 7 - Use three: standing on a table with the leg folded out.

Drawings reproduced from the public patent document for reference.
