Patent CN207425291U

Updated October 23, 2026

Portable Advertising Light Box with Spinning LED Display

Printed light boxes and street signs show one message until someone replaces the poster. This portable box shows any message. Inside, several bars of LEDs are mounted on a motor-driven spinner; as they turn, a controller switches the LEDs so fast that pictures and text seem to float in the box. New content is loaded over a wireless link or a USB port, an optional GPS module records where the box has been, and a pole lets it stand on the ground or be carried.

  • China utility model - lapsed
  • No filings outside China
  • Signs & advertising displays
  • LED bars, small motor, controller
Request a Quote How it works →
Portable Advertising Light Box with Spinning LED Display - patent drawing

🌀

Spinning LED bars

LED bars on a motor hub turn fast enough to draw pictures and text inside the box.

📶

Change content remotely

A wireless receiver and memory let the message be updated without opening the box.

📍

Optional GPS

A GPS module can log where the box has been, for reporting on street campaigns.

🔌

USB and battery

A power supply with a switch runs it; a USB port charges it and loads content.

🔥 Popularity – views

Bring this product to market

  1. ✓ Patent vetted China-only family and legal status checked
  2. 2 Product brief · now How it works, uses and options written up
  3. 3 Prototype First samples for buyers to review
  4. 4 Pilot run Small first batch for launch customers
  5. 5 Volume production Repeat orders at scale

Buyer interest

– of 100 buyers needed to start prototyping

or request a quote Share to speed it up:

One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.

Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.

Join the build team

Want to develop this product with others? Tell us what you can bring. When the team has enough people, we introduce the members to each other by email.

I can help with (pick any)

Letters only. The team list on this page shows your country and the first 5 letters of your name (e.g. "Micha**"); leave the name blank to appear as "Anonymous".

No money is collected on this site. IP2M does not hold or manage funds, and pledges are non-binding. We email you a link to confirm; only confirmed members are introduced to each other. See our privacy policy.

The problem

Street promotions, shop entrances and event stands rely on posters and printed light boxes. Every new offer means printing and swapping a poster, and a static sign is easy to walk past. Electronic screens solve that but are heavy, fragile and expensive to carry around. The patent’s goal is a portable sign whose content can be changed cheaply and instantly.

The solution

The patent puts a “persistence of vision” display - spinning LEDs - into a portable box:

  1. A portable box (9) has a removable front panel and a pole (11) to carry it or stand it on the ground.
  2. Inside, several LED bars (2), each a row of LEDs (7), sit on a spinner (15, 17) fixed to the shaft of a motor (3).
  3. A controller (4) turns the motor and switches the LEDs in time with the rotation, so the turning bars draw images and text.
  4. A wireless receiver and a memory let content be stored and switched remotely; a USB port charges the box and loads content.
  5. An optional GPS module reports the box’s location to a server, so advertisers can see where a campaign ran.
Portable Advertising Light Box with Spinning LED Display - Patent drawing - front view

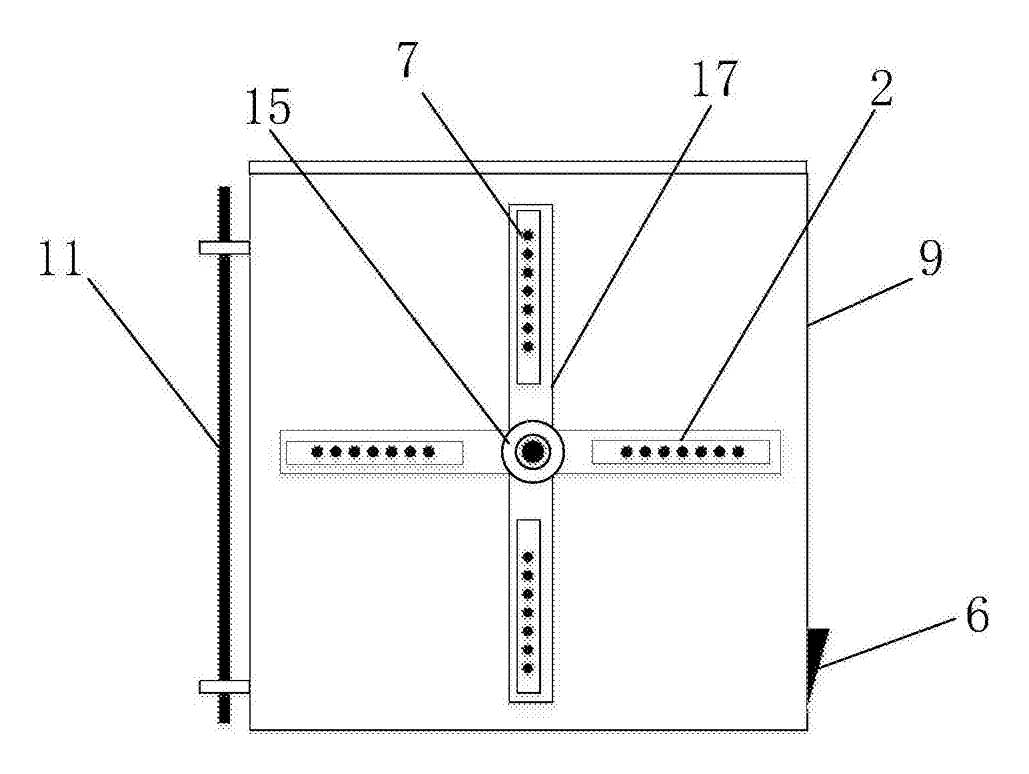

Patent figure 1 - front view: box (9), four LED bars (2) with LEDs (7) on the hub (15, 17), pole (11) and switch (6).

Who it is for

  • Sign and POP companies adding a light, portable digital sign to their range.
  • Promotion and street-marketing agencies running walking or roadside campaigns.
  • Restaurants, shops and food trucks that want an eye-catching sign they can move every day.
  • Event and trade-show suppliers - a sign that is set up in seconds.

How it works

The main parts

Portable Advertising Light Box with Spinning LED Display - Patent drawing - side section

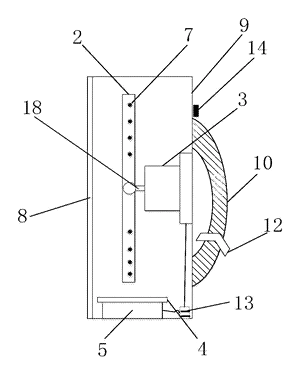

Patent figure 2 - side view: LED bar (2) with LEDs (7), motor (3), controller (4), power supply (5), front panel (8), box (9) and rear cover (10).
No.PartWhat it does
9BoxMain housing with a removable cover; shown with a carrying pole (11).
2, 7LED barsRows of LEDs that spin to form the image.
15, 17, 19SpinnerHub and arms (bar-type or fan-blade type) that carry the LED bars.
3MotorTurns the spinner.
4ControllerTimes the LEDs to the rotation; stores and switches content.
5, 6Power supply and switchRun the motor, controller and LEDs.
-Wireless, USB, GPSRemote content, charging and data, location logging.

Showing a message

  1. Load content - pictures or text by USB, or send it wirelessly.
  2. Stand or carry the box on its pole and switch on.
  3. The spinner turns and the controller flashes the LEDs to draw the image.
  4. Switch messages remotely during the day - a morning offer, an afternoon offer.
Portable Advertising Light Box with Spinning LED Display - Patent drawing - display effect

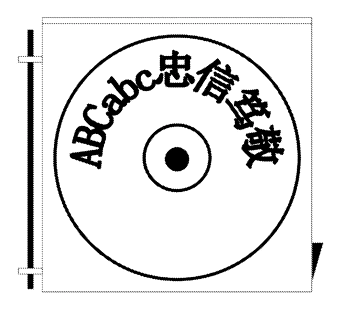

Patent figure 6 - display effect: text and a logo drawn by the spinning LED bars (sample Chinese characters in the patent).

Spinner versions

The patent shows bars on two or more straight arms, and a fan-blade version with wider supports, so the number of bars and the image resolution can be chosen.

Portable Advertising Light Box with Spinning LED Display - Patent drawing - fan-blade spinner

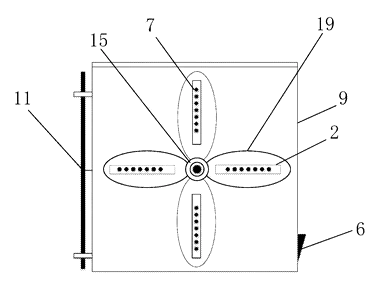

Patent figure 3 - second version: LED bars on fan-blade supports (19).

Applications

Street and sidewalk promotions

A sign carried by a promoter or stood on the pavement, with changing offers.

Shop and restaurant entrances

Daily specials without printing new posters.

Events, fairs and trade shows

A moving logo that draws attention across a hall.

Food trucks and pop-up stores

A light, battery-powered sign that goes wherever the business does.

Campaign tracking

GPS logs show advertisers where and how long a mobile campaign ran.

Where it is less suitable

  • Bright direct sunlight - LED images lose contrast outdoors in full sun.
  • Places where people can reach inside - the spinning parts must stay fully enclosed behind a fixed cover.

Frequently asked questions

How does it show pictures with only a few LED bars?

The bars spin on a motor, and the controller switches each LED at exactly the right moment in every turn. The eye blends the turning light into a still image - the same principle as “hologram fan” displays.

How is the content changed?

According to the patent, content can be sent through a wireless receiving module and kept in memory, or loaded through a USB port. A phone app is the usual way to do this today.

Can it run on battery?

Yes. The patent includes a power supply with a switch and a USB port for charging. Run time depends on the battery and brightness and is set in design.

What is the GPS for?

The patent describes an optional GPS module that reports where the box is, so advertisers can see where a mobile campaign ran.

Can it be used outdoors?

In shade, evenings and indoors it is very visible. In direct sun LED images lose contrast; we can raise brightness and add a hood.

Is the spinning part safe?

It must be fully enclosed behind a fixed transparent cover. We design the guard and test it before shipment.

Can this design be made and sold in the US?

The patent was filed only in China and has lapsed, so it does not restrict the design in the US or in China. Spinning LED displays are covered by many US patents - see Patent & Production - so we recommend a freedom-to-operate check before volume production.

Are you affiliated with the patent owner?

No. IP2M is an independent design and manufacturing service working from the public patent document.

Request a quote

Click Request a Quote below to see our email address - copy it, or open your email app with a ready-made message. Please mention patent CN207425291U in the subject.

Helpful details to include:

  • Your company and use (street promotion, retail, events, resale)
  • Size and display resolution
  • Connectivity (app, USB, GPS) and power source
  • Carrying or mounting method and branding
  • Estimated quantity and target price
  • Timeline - when you would like samples and the first shipment

You can also reach us at (332) 203-9997.
