Foot-Pedal Soap & Sanitizer Dispenser Stand

The problem

In food plants, clinics, workshops, schools and restrooms, a shared pump bottle of soap or sanitizer is touched by dozens of hands a day. Every press can pass germs from one person to the next - exactly what hand washing is meant to prevent.

Touchless options exist, but they have drawbacks:

• Sensor dispensers need batteries or power, cost more and often lock users into one brand of refill.
• Wall-mounted pedal units need installation and are not easy to move.

The solution

This design is a free-standing, fully mechanical stand that works with ordinary pump bottles:

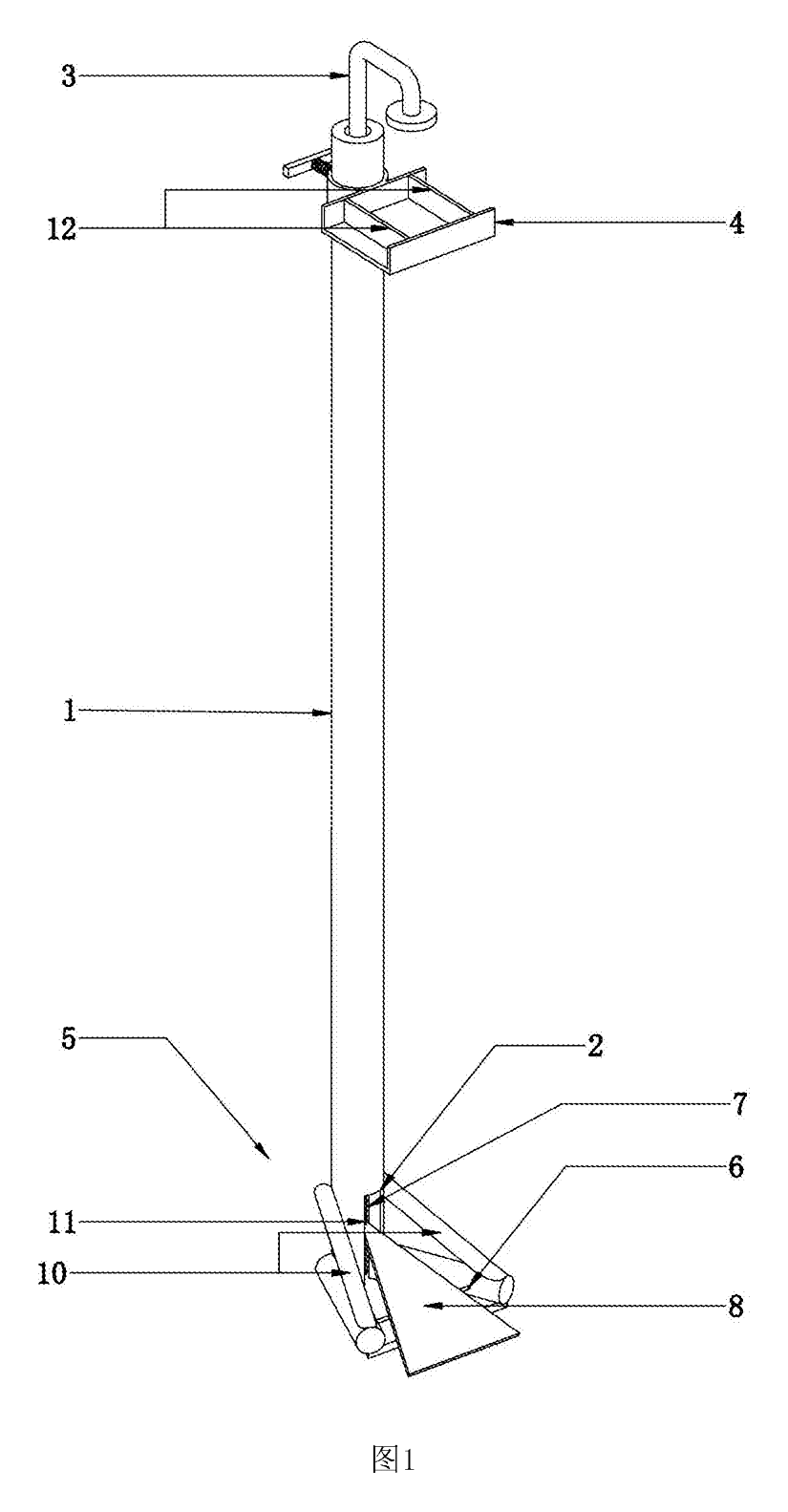

1. A hollow upright post stands on a triangular base braced by two diagonal struts.
2. An adjustable bottle holder slides along the post and is locked with a screw; two clamping plates grip the bottle.
3. A pull rod runs inside the post. Its top end bends over into a hook with a round pressing pad that sits on the bottle’s pump head.

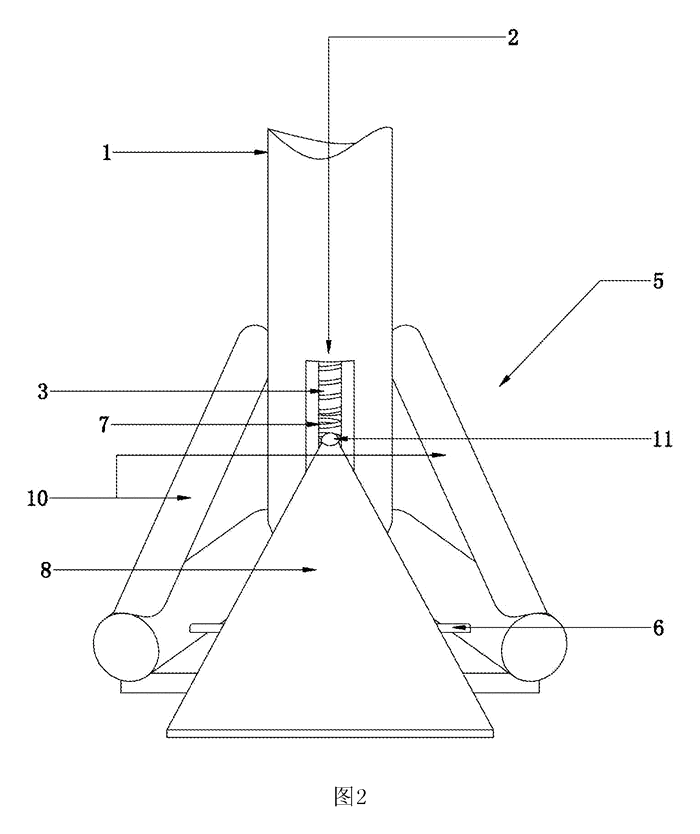

4. At the bottom, a triangular foot pedal is connected to the rod through a slot in the post and a spring.
5. Step on the pedal: the rod is pulled down, the pad presses the pump, and soap comes out. Release: the spring returns everything to the start.

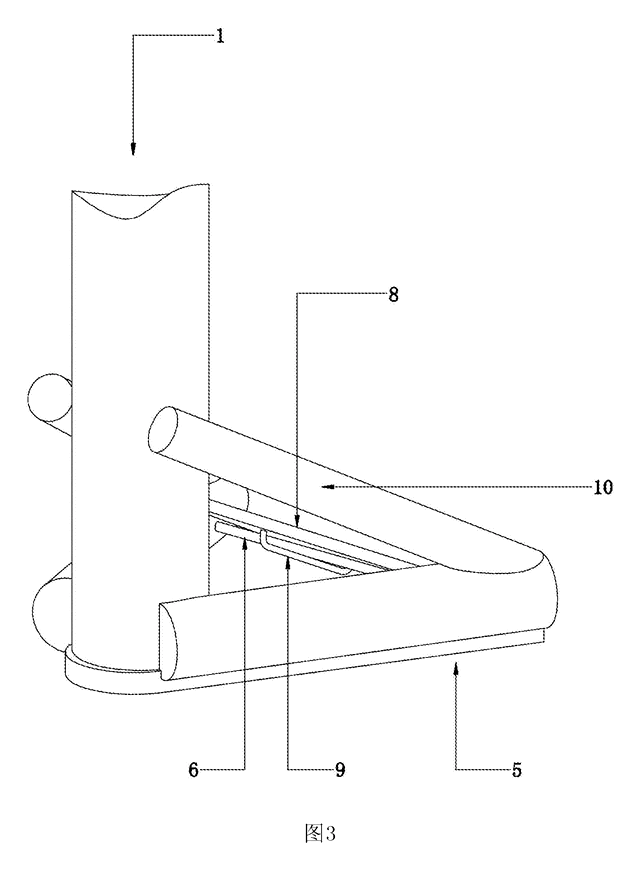

A U-shaped stop under the pedal and a crossbar on the base limit the pedal travel so the pump is not over-pressed.

Who it is for

• Facility-supply and janitorial distributors looking for a low-cost, no-maintenance touchless station.
• Food processing, healthcare, schools, gyms, restaurants and event venues that need hand-hygiene points without wiring or installation.
• Amazon and e-commerce sellers in the cleaning and safety category who want a simple, sturdy product that uses customers’ own refills.

How it works

The main parts

Step by step

1. Set up. Slide the bottle holder (4) to the right height for your bottle, tighten the screw and clamp the bottle with the two plates (12). Rest the round pressing pad of the hook (3) on the pump head.
2. Step. Press the foot pedal (8). Through the pivot (11) it pulls the rod (3) down inside the post.
3. Dispense. The hook’s pad presses the pump head and a dose of soap or sanitizer comes out.
4. Stop. The pedal reaches the U-shaped stop (9) and crossbar (6), so the pump is pressed fully but not forced.
5. Return. Lift your foot: the spring (7) - and the bottle’s own pump spring - push the rod and pedal back up.

Stability

The base forms a triangle and two diagonal braces tie it to the post, giving a wide, stable footprint even when the pedal is pressed hard. The stand can be moved from place to place or fixed to the floor.

Applications

Food processing and commercial kitchens

Food-safety rules put hand washing at the center of hygiene. A pedal station at the entry to a production area or kitchen lets staff dispense soap or sanitizer without touching a shared pump with raw-food hands.

Clinics, dental offices and care homes

Waiting rooms and corridors need hand-sanitizer points for patients and visitors. A free-standing pedal stand can be placed anywhere, with no wall drilling.

Schools, offices and public buildings

Entrances, cafeterias and restrooms see heavy traffic. A mechanical stand has no batteries to run flat and nothing to break when used hundreds of times a day.

Events, venues and temporary sites

Trade shows, concerts, weddings, construction sites and outdoor markets need hand-hygiene points that can be set up and moved quickly - without power outlets.

Workshops and garages

Mechanics and technicians often have greasy hands. Pressing a pedal keeps the bottle - and the next person’s hands - clean.

Gyms and fitness studios

Sanitizer for hands and equipment wipes can sit at the end of each row of machines.

Where it is less suitable

• Small home bathrooms - a countertop dispenser takes less space.
• Very high-traffic sites that need a bulk refill tank - a model with a larger reservoir or a wall-mounted bulk system may fit better.
