Side-Rail Rolling Backpack with Raised Wheels

The problem

Rolling backpacks help students who carry heavy books - but on most designs the telescopic trolley frame is built into the back panel. When the bag is worn as a backpack, the frame sticks out and presses into the wearer’s back, which the patent identifies as the main comfort problem. The patent also points out a second issue: the bag body rides close to the ground, so it gets dirty when pulled through mud or dust.

The solution

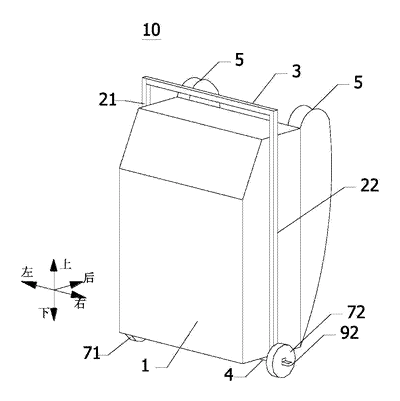

The patent rearranges the trolley:

1. The left rail (21) runs up the left side of the bag body (1); the right rail (22) runs up the right side.
2. A pull handle (3) joins the top ends of the two rails, across the top of the bag.
3. Shoulder straps (5) on the back let it be worn normally - with no frame in the back panel.

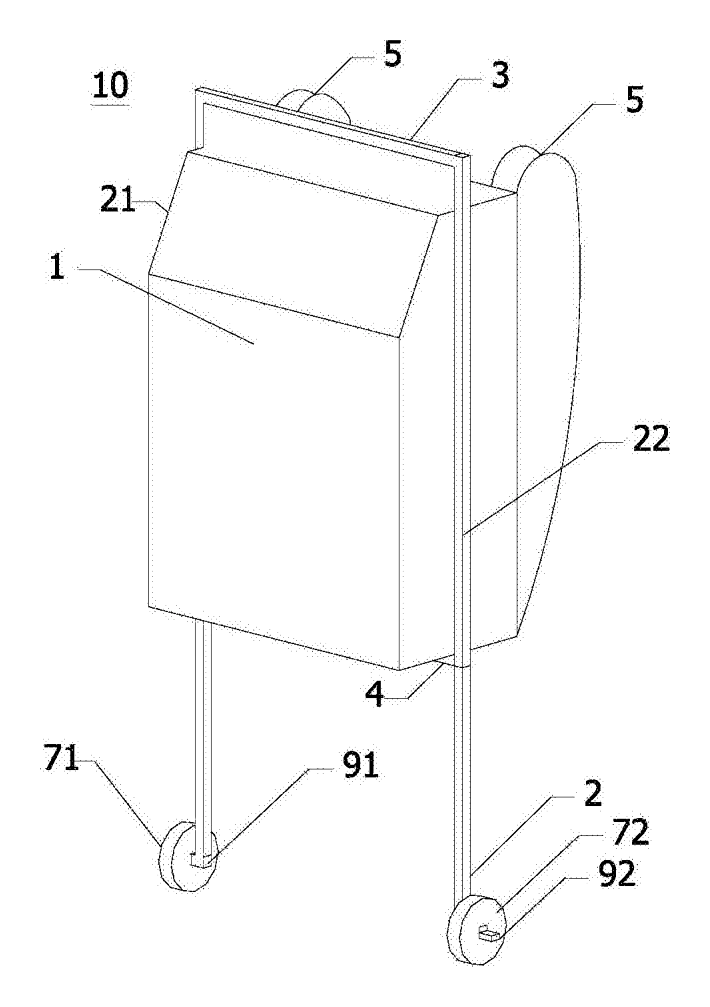

4. In the second version, wheels (71, 72) sit at the bottom ends of the rails. The rails can be pulled downward and lock at a set distance, which lifts the bag body higher off the ground. The patent gives 5-50 cm as an example range.

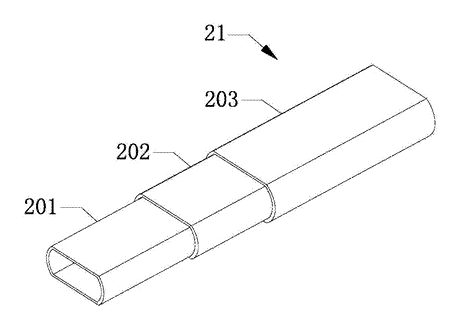

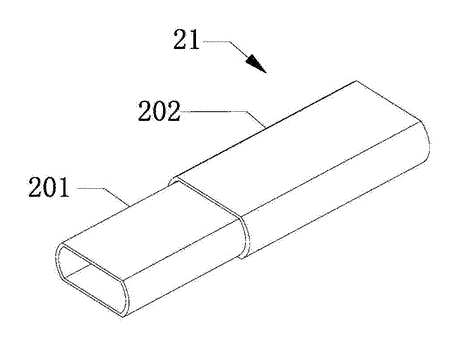

5. The rails are made of nested tubes (201, 202, 203) with a self-locking device between them.

Who it is for

• School bag and backpack brands with a rolling line for students.
• Luggage and travel brands wanting a convertible carry-on backpack.
• Private-label and online sellers looking for a clear, demonstrable comfort feature.

How it works

The main parts

Pulling the bag

1. Take the handle (3) that joins the tops of the side rails.
2. Tilt the bag onto its wheels and pull it like a small trolley.
3. To carry it, wear the bag with the shoulder straps (5) - the rails sit along the sides, not against the back.

Raising the bag above dirt

1. Before a muddy or dusty stretch, pull the rails downward. The inner tube (201), which carries the wheel, slides out of the tube fixed to the bag (202).
2. The rails lock at the set distance.
3. The bag body now rides higher above the ground on its wheels.
4. Push the rails back up when the ground is clean.

Applications

Rolling school backpacks

The main use named in the patent: students carrying heavy books who also wear the bag on their backs.

Carry-on and travel backpacks

A backpack that rolls through the terminal and is comfortable on the back in places with stairs.

Commuter and laptop bags

Rolls on sidewalks and stations, worn on the back on stairs and buses.

Outdoor and rural routes

Raised wheels help on wet, unpaved or dusty paths.

Work bags for technicians and sales reps

Samples or tools that are heavy to carry all day.

Where it is less suitable

• Very light day packs - the rails and wheels add weight that a light bag does not need.
• Rough off-road terrain - small backpack wheels are for pavement and smooth paths.
