Patent CN207870035U
Updated October 23, 2026Multi-Pet Fountain Water Dispenser
Water rises through a central spout, sprays gently from a flower-shaped head and pools on a raised dish that pets can reach from every side. It then drains back through a filter (and optional UV lamp) and circulates again - fresh, quiet, splash-free water for one pet or several.
- China utility model
- No filings outside China
- Pets
- Molded plastic + 5 V pump
Splat! What let you down?
🐾
Drink from any side
The drinking dish sits in the middle and is open all around, so two or three pets can drink at the same time.
⛲
Moving, fresh water
A small pump keeps water circulating from the basin to the spray head and back - pets prefer running water.
🧽
Filtered every cycle
Returning water passes a cotton, activated-carbon and resin filter; a UV sterilizer can be added.
💧
Less splashing
Streams land on a raised dish and drain through holes underneath, instead of falling onto the floor.
Bring this product to market
- ✓ Patent vetted China-only family and legal status checked
- 2 Product brief · now How it works, uses and options written up
- 3 Prototype First samples for buyers to review
- 4 Pilot run Small first batch for launch customers
- 5 Volume production Repeat orders at scale
Buyer interest
– of 100 buyers needed to start prototyping
One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.
Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.
The problem
Cats and dogs drink more when water moves - a big reason pet fountains are one of the best-selling pet products. But most fountains still have two weak points:
- One-sided drinking spot. Many fountains put the spout or drinking area on one edge. Only one pet can drink at a time, and cats that dislike touching anything with their whiskers avoid tight spots.
- Stale or splashed water. Open bowls collect dust and hair; simple spouts splash water onto the floor.

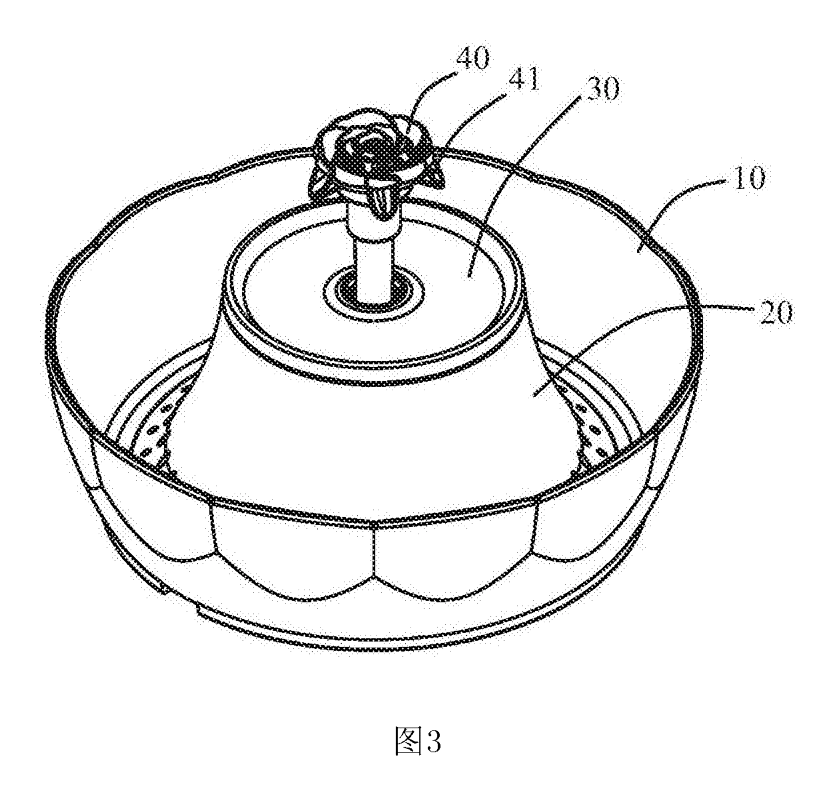

The solution
This design moves the fountain to the center:
- A small pump in the base lifts water up a central tube to a flower-shaped spray head.
- Several nozzles spray gentle streams outward onto a round raised dish around the tube.
- When the dish is full, water drains through holes in its floor, is spread out by an umbrella-shaped gasket and flows through a multi-layer filter back into the basin.
- An optional UV lamp module sterilizes water as it is pumped.
Because the drinking dish is round and open on every side, several pets can drink together, and the water they drink is always fresh from the spray head.
Who it is for
- Pet-product brands and Amazon / Shopify sellers looking for a fountain that looks different from the usual square “cat fountain” and works for multi-pet homes.
- Private-label buyers who want a ready-to-tool design with optional upgrades (UV module, LED status light, interchangeable decorative tops).
The design uses ordinary molded plastic parts, a small DC water pump and a replaceable filter cartridge - a familiar bill of materials for any pet-fountain factory.
How it works

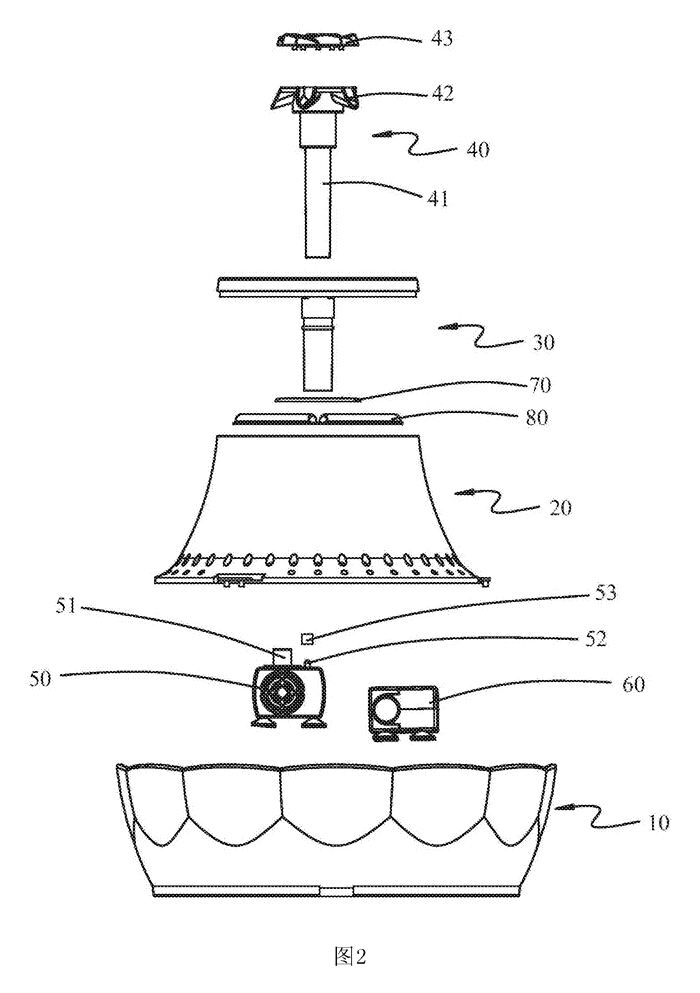

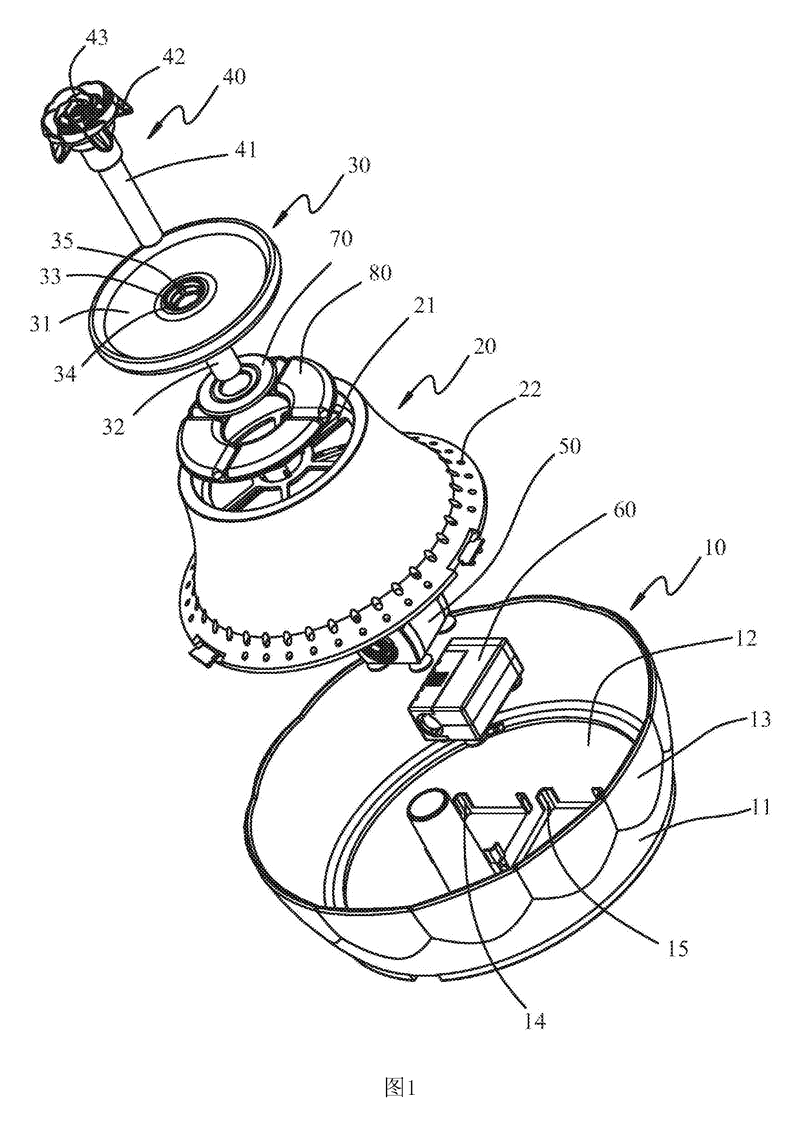

The main parts
| No. | Part | What it does |
|---|---|---|
| 10 | Water basin | Holds the water supply. Its rim is shaped like flower petals; corner blocks inside hold the pump and filter in place. |
| 20 | Trumpet-shaped middle shell | Sits inside the basin and supports the drinking dish. Ribs give it strength; small holes let an LED light shine through. |
| 30 | Raised drinking dish | A round, shallow dish around the center tube where pets drink. A raised collar (33) sets the water level; four drain holes (34) let overflow return. |
| 40 | Spray head | Fits on top of the center tube. Several nozzles (42) spray water outward; a decorative cover plate (43, flower-shaped in the patent) sits on top. |
| 50 | Water pump | Small DC pump in the base that pushes water up the center tube. Has an LED indicator (52). |
| 60 | UV sterilizer (optional) | Either plugs onto the pump inlet or sits between the pump and the center tube. |
| 70 | Umbrella gasket | Spreads water draining from the dish evenly over the filter. |
| 80 | Filter | Ring-shaped cartridge between the dish and the basin. |
The water path, step by step
- Pump up. The pump (50) draws water from the basin and pushes it up the first hollow tube in the center of the dish.
- Spray out. The water passes into the spray head (40) and leaves through several nozzles as gentle streams, landing in the drinking dish (30).
- Pool and drink. The dish fills up to the height of the raised collar - this is where pets drink, from any side.
- Drain and spread. Extra water drains through the holes in the dish floor and lands on the umbrella gasket (70), which spreads it over the filter.
- Filter. Water seeps through the filter (80) and drops back into the basin.
- Sterilize (optional). Before the next trip up, the water passes the UV lamp module (60).
The cycle runs continuously while the fountain is plugged in.

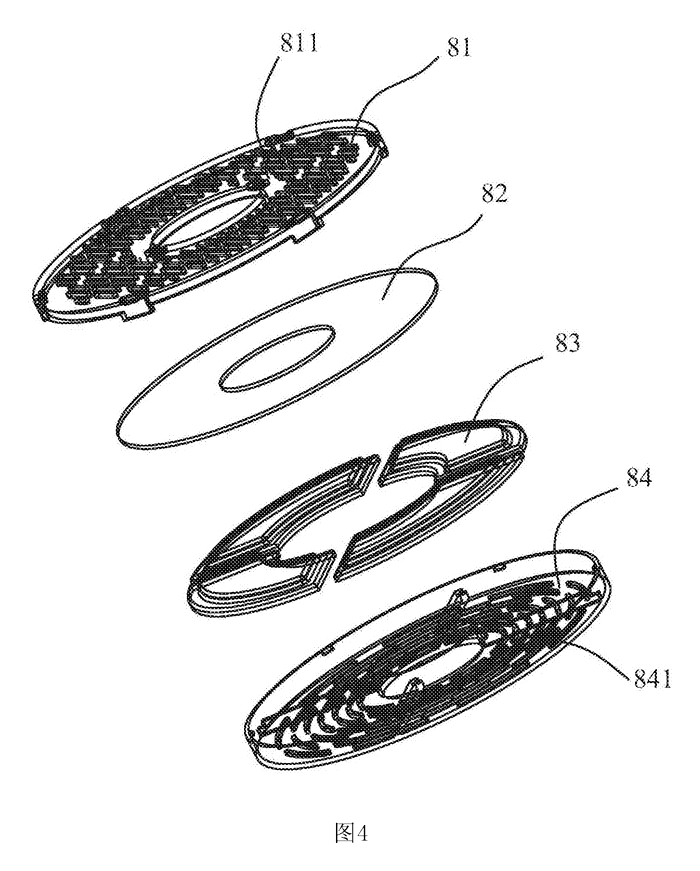

The filter
The ring-shaped filter is a stack of four layers:
| Layer | Material | Purpose |
|---|---|---|
| Top cover (81) | Plastic grid with drainage grooves | Spreads water and catches hair and food crumbs |
| Membrane (82) | Reverse-osmosis (RO) membrane | Fine filtration |
| Filter media (83) | Cotton, activated carbon and ion-exchange resin | Removes debris, odors and some minerals that cause scale |
| Bottom cover (84) | Plastic grid | Holds the stack together and returns water to the basin |
The optional UV module
The patent describes two versions: an external module that clips onto the pump inlet, and a built-in module placed between the pump outlet and the center tube, with its own small pre-filter and UV lamp.
Status light
An LED next to the pump shines through the small holes in the middle shell. The patent suggests using it to show power, low water level and filter replacement reminders.
Applications
Multi-pet homes
Households with two or more cats, or a cat and a small dog, often see pets queue at - or fight over - a one-sided fountain. A round drinking dish that is open on every side lets several pets drink side by side.
Cats that drink too little
Many cats are reluctant drinkers, and owners often turn to fountains because cats tend to be attracted to moving water. This design keeps a fresh stream flowing onto the dish, and the wide open dish avoids the narrow spots that whisker-sensitive cats dislike.
Small and medium dogs
The raised center dish suits small and medium breeds. A larger basin and taller shell can be scaled for bigger dogs (see Customization).
Pet sitters, boarding and grooming shops
Places that care for several animals a day need water stations that are easy to clean and keep water fresh between refills. The fountain breaks down into a few simple parts - basin, shell, dish, spray head, filter - for washing.
A product line, not just one product
The spray head’s decorative top is a separate part. One base can be sold with different tops - a flower, a paw, a cartoon cat - or in different colors, giving sellers several listings from one set of tooling.
Where it is less suitable
- Very large dogs that drink large volumes quickly - a bowl-style fountain with a bigger open reservoir may suit them better.
- Outdoor use - the pump needs mains or USB power and should be kept indoors.
Frequently asked questions
How is it different from a normal pet fountain?
Most fountains have a spout or drinking spot on one side. Here the spray head is in the middle and the drinking dish runs all the way around it, so several pets can drink at once and none has to squeeze into a corner.
How do you clean it?
It comes apart into a few pieces: basin, middle shell, drinking dish, spray head, filter and pump. All the plastic parts can be washed by hand; the pump is rinsed separately. The filter cartridge is replaced on a schedule.
Is it noisy?
The water falls only a short distance from the spray head onto the dish, and the drain water is slowed by the umbrella gasket before it reaches the basin. With a quality brushless DC pump, the fountain can be very quiet - we test noise during prototyping.
How often is the filter replaced?
That depends on the number of pets and the water quality - typically every few weeks for this kind of carbon filter. Replacement filters are a good repeat-sale item for sellers.
Does it need the UV lamp?
No. UV is optional. The basic version uses only the filter; the UV module is an upgrade for a premium model.
What power does it use?
The patent describes a small DC pump on a switching power supply. For the US market we would normally use a 5 V USB pump with a certified adapter.
Can it be made bigger for dogs?
Yes. The basin, shell and dish can be scaled up; a larger pump and filter are matched to the new size.
Can this design be sold in the US?
This patent was filed only in China and has no US family member listed, so on its own it does not restrict US sales. Other companies’ patents may still apply - see Patent & Production - so we recommend a freedom-to-operate check before volume production.
Are you affiliated with the inventor?
No. IP2M is an independent design and manufacturing service working from the public patent document.
