Motorized Rocking Stroller That Rocks by Turning Its Wheels

The problem

Many babies settle when they are rocked, and parents end up pushing a stroller or rocker back and forth for long stretches - in the living room, at a café, beside the bed. Electric baby swings and bouncers exist, but they are separate, bulky products, and most strollers have no powered motion at all. The patent asks whether the stroller’s own wheels could do the rocking, with a simple drive the parent can switch off to push normally.

The solution

The patent adds a compact drive between the frame and the wheels:

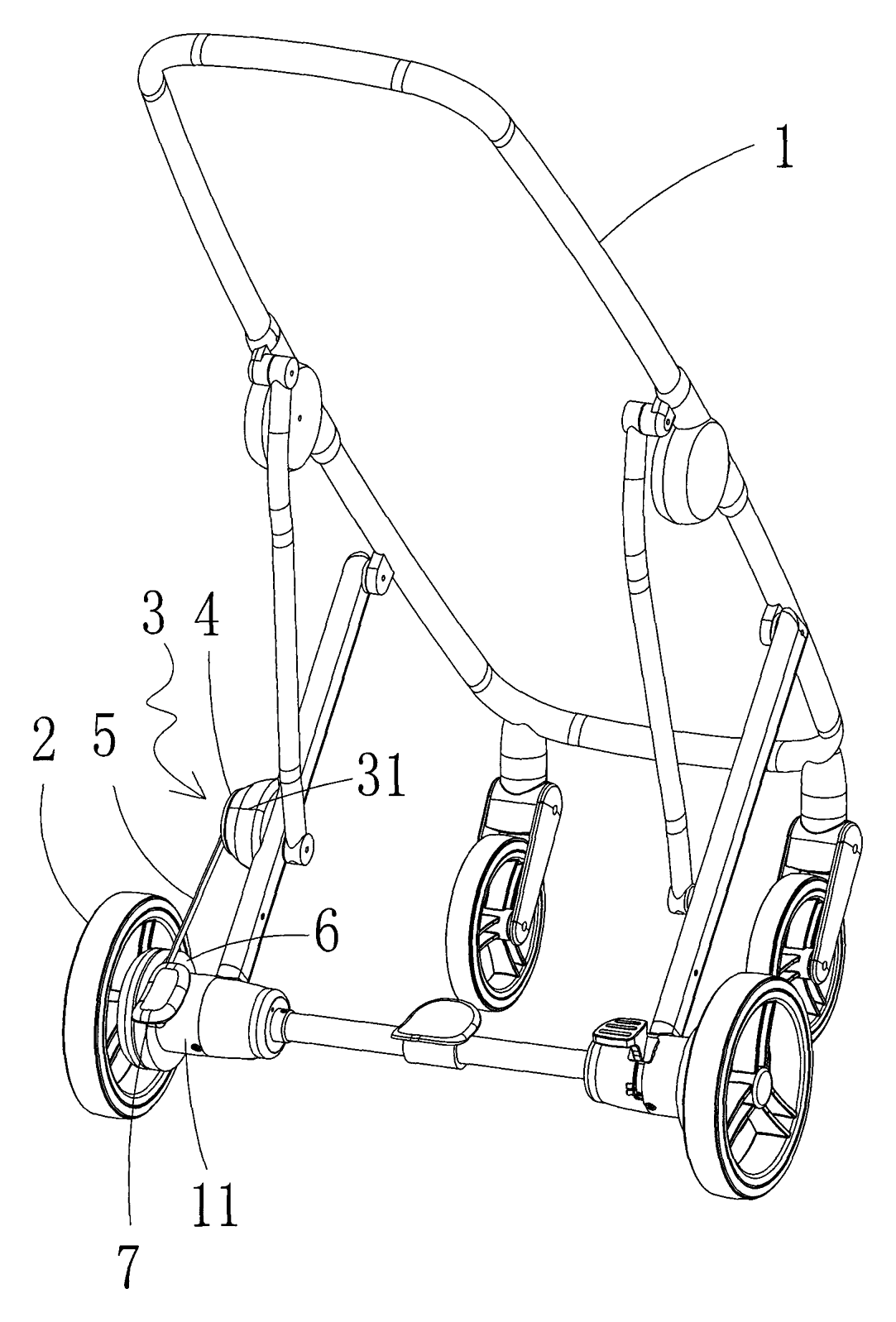

1. A support frame (1) with a seat has wheel mounts (11) for the wheels (2).
2. An electric drive (3) is fixed to the frame: a drive motor (31) turns a crank disc (4).

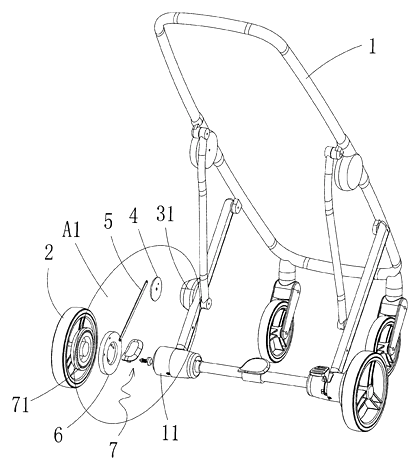

3. A link (5) is pinned to the disc away from its center; its other end is pinned, also off-center, to a swing arm (6) on the wheel axle. As the disc turns, the swing arm rocks back and forth, so the wheels roll a short way forward and back.

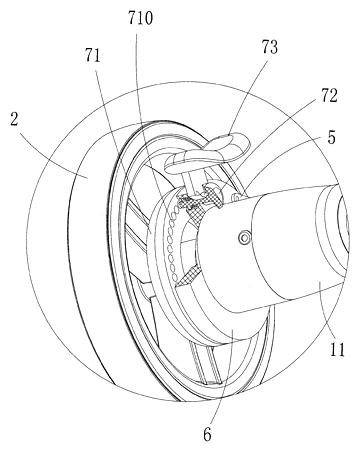

4. A clutch (7) between the swing arm and the wheel connects or frees the drive. In one version a lock ring (71) on the wheel has holes (710); a spring-loaded lock pin (72) enters a hole when the clutch switch (73) is turned, and a cam on the switch pulls it out.
5. In the first version the motor, disc, link and swing arm sit in a drive box (14) on a cross bar (121) between the wheel mounts.

Who it is for

• Stroller and juvenile-products brands looking for a feature that sets a pram or bassinet stroller apart on the shelf and in video.
• Baby rocker and bouncer makers wanting a rocking seat that also rolls from room to room.
• Smart-nursery and baby-tech companies that pair motion with apps, timers or sound.
• Importers for Asian-style “rocking chair carts” - wheeled baby seats that are pushed indoors and rocked to sleep.

How it works

The main parts

Rocking mode and pushing mode

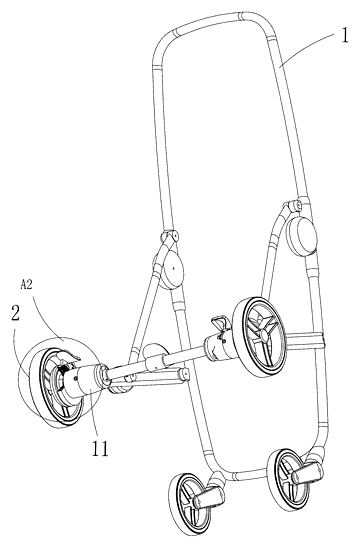

1. Rocking mode - turn the clutch switch so the lock pin enters the wheel’s lock ring. Switch on: the motor turns, the swing arm rocks, the wheels move a little forward and back, and the seat rocks in place.
2. Pushing mode - turn the switch the other way; the cam pulls the pin out and the wheels turn freely.
3. Parking - in the later versions an electric brake pin locks the wheel.

Four versions

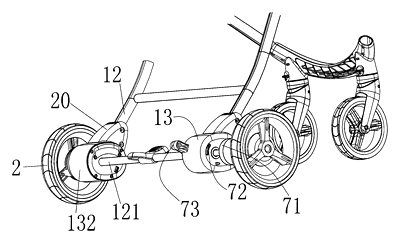

The patent shows four layouts: a drive box between the wheels (versions 1 and 2, with different clutches), and two layouts where the motor sits in a box beside one wheel and the battery in a box beside the other, with a brake device (versions 3 and 4). The patent notes that the drive keeps the wheels from turning further when the swing is fast, for safety.

Applications

Living-room naps

A wheeled seat that rocks the baby to sleep while the parent eats or works nearby, then rolls to the bedroom.

Cafés and visits

A stroller that can rock on its own at the table instead of being pushed back and forth for half an hour.

Bedside rocking

A bassinet stroller parked beside the bed at night, rocking gently on a timer.

Twins and busy households

When one parent handles two babies, one seat can rock itself.

Grandparents and caregivers

Rocking without repeated bending and pushing is easier for older caregivers.

Where it is less suitable

• Unsupervised sleep - rocking seats are not a substitute for a flat, safe sleep space, and products must be labeled accordingly.
• Slopes and uneven floors - wheel-driven rocking needs a level floor and a reliable brake when stopped.
