Patent CN208523497U
Updated October 23, 2026Adjustable Snap-Fit Animal Muzzle
One muzzle for many snout sizes. The cone-shaped sleeve is a trapezoid of soft material that wraps around the snout and closes with rows of snap buttons, so it can be set tighter or looser; a ratchet buckle sizes the neck strap, and three hook-and-loop straps link sleeve and collar for quick fitting.
- China utility model - lapsed
- No filings outside China
- Pets & animal care
- Fabric / soft plastic, no electronics
Splat! What let you down?
🐶
Snout size adjusts
Rows of snap buttons let the sleeve close tighter or looser, so one muzzle fits a range of snouts.
⚙️
Ratchet neck strap
A one-way buckle like a cable tie: pull to tighten, press the lever to release.
🧷
Fits in two steps
Put on the collar and the sleeve separately, then join them with three hook-and-loop straps.
🧵
Simple materials
Fabric or soft plastic sheet, snap buttons, hook-and-loop and one molded buckle.
Bring this product to market
- ✓ Patent vetted China-only family and legal status checked
- 2 Product brief · now How it works, uses and options written up
- 3 Prototype First samples for buyers to review
- 4 Pilot run Small first batch for launch customers
- 5 Volume production Repeat orders at scale
Buyer interest
– of 100 buyers needed to start prototyping
One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.
Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.
The problem
Most muzzles adjust only at the neck strap. The part that goes over the snout comes in fixed sizes, so owners, groomers and vets need many sizes on hand - and a muzzle that is too loose slips off, while one that is too tight is uncomfortable.
The solution
This muzzle makes both parts adjustable:

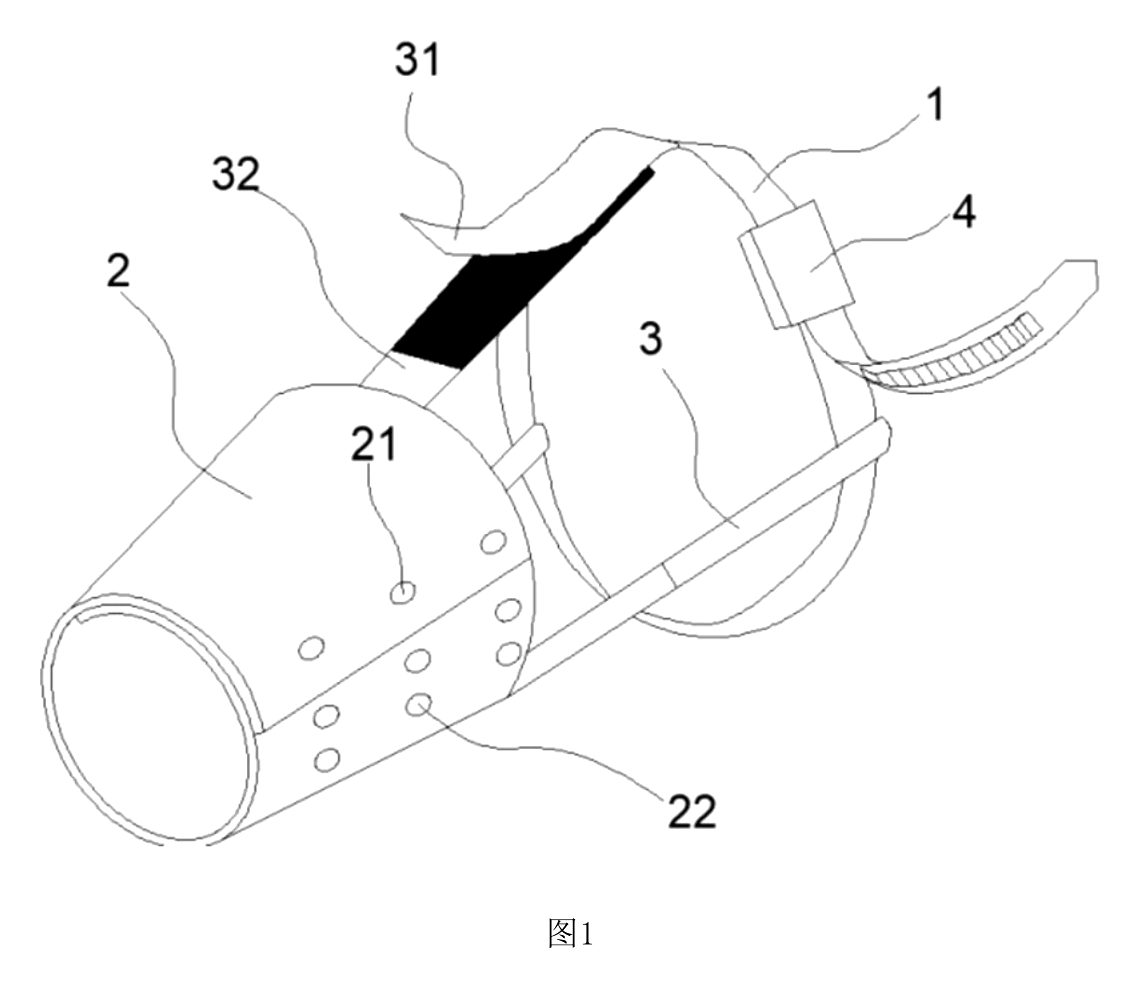

- The snout sleeve (2) is cut as a flat trapezoid of fabric or soft plastic. Wrapped around the snout it forms a cone. One edge has a row of snap buttons (21); the other edge has several rows of matching studs (22), so the sleeve can be closed at different diameters.
- The neck strap (1) runs through a ratchet buckle (4): it tightens in one direction and is released with a small lever.
- Three connecting straps (3) join the wide end of the sleeve to the neck strap. Each is split in two (31, 32) and closes with hook-and-loop, so the sleeve and collar can be put on one at a time and then joined.
Who it is for
- Pet-accessory brands and Amazon sellers wanting a muzzle that covers more dog sizes with fewer SKUs.
- Groomers, boarding kennels and veterinary clinics that handle many animals of different sizes.
- Farm and livestock suppliers - the patent was written for dogs and pigs.
How it works
The main parts
| No. | Part | What it does |
|---|---|---|
| 1 | Neck strap | Goes around the neck; its free end has small one-way teeth (44). |
| 2 | Snout sleeve | Trapezoid of fabric or soft plastic wrapped into a cone over the snout. |
| 21 | Snap buttons | One row on the inside of one edge of the sleeve. |
| 22 | Stud rows | Several rows on the outside of the other edge - choose a row to set the size. |
| 3 | Connecting straps | Three straps between the wide end of the sleeve and the neck strap. |
| 31, 32 | Strap halves | One half fixed to the neck strap, one to the sleeve, joined with hook-and-loop. |
| 4 | Ratchet buckle | Holds the neck strap at any length. |
| 41-43 | Buckle housing, spring catch, release lever | Inside the buckle. |
Fitting it, step by step
- Put on the neck strap. Thread the free end through the buckle (4) and pull until it sits snugly.
- Wrap the sleeve (2) around the snout and press the snap buttons (21) into the row of studs (22) that gives a secure but comfortable fit.
- Join sleeve and collar by pressing the halves of the three connecting straps (31, 32) together. Their hook-and-loop also lets you fine-tune the length.
- To remove, open the hook-and-loop straps, unsnap the sleeve, and press the buckle lever to release the neck strap.

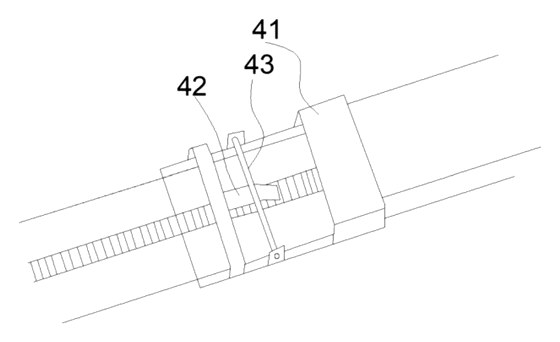

The ratchet buckle

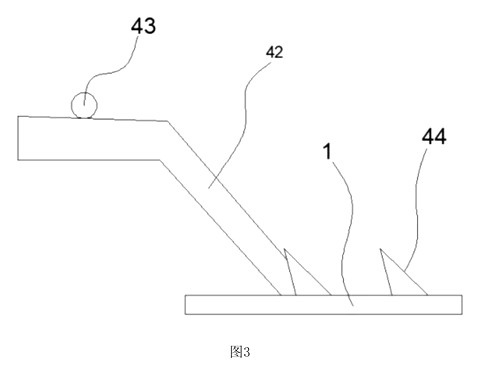

The buckle works like a cable tie that can be undone. Inside the housing (41) a spring catch (42) rides over angled teeth (44) on the strap.
- Pulling the strap tighter works freely - the catch slides over the slope of each tooth.
- The strap cannot loosen by itself - the catch stops against the steep side of a tooth.
- Pressing the release lever (43) lifts the catch so the strap can be let out.
Applications
Grooming salons
Nail trims and grooming of nervous dogs. One adjustable muzzle covers many breeds, so fewer sizes hang on the wall.
Veterinary clinics and animal shelters
Short procedures and handling of unfamiliar animals; the two-step fitting lets staff put the collar on first and close the sleeve quickly.
Boarding kennels and daycare
Kept on hand for introductions and handling.
Pet owners
Vet visits, travel and situations where a muzzle is required. One product covers a growing puppy across several sizes.
Livestock handling
The patent was written for dogs and pigs. A tougher version can suit handling of pigs and other animals during treatment.
Where it is less suitable
- Long wear, exercise or hot weather - a closed sleeve muzzle limits panting and drinking. For longer wear a basket-style muzzle is the safer choice.
- Very short-nosed breeds (pugs, bulldogs) - a cone sleeve does not stay on well; special flat-face muzzles exist for them.
Frequently asked questions
How many sizes does one muzzle cover?
That depends on the sleeve length and the number of stud rows. A range is designed with you - for example small, medium and large products that each cover several breeds.
Can a dog pant or drink while wearing it?
A closed sleeve muzzle limits panting and drinking, so it is meant for short, supervised use such as grooming or vet visits. A mesh or perforated sleeve can be specified to improve airflow.
Is it hard to put on a nervous dog?
The collar and sleeve go on separately and are then joined by the hook-and-loop straps, which makes fitting quicker than threading a one-piece muzzle.
Can it be washed?
Fabric and neoprene versions can be hand-washed; TPU versions wipe clean.
Can the ratchet buckle be replaced with a normal buckle?
Yes. A standard side-release buckle with a slider is an option.
Is it suitable for livestock?
The patent was written for dogs and pigs. A heavier version can be developed for livestock handling.
Can this design be made and sold in the US?
The patent was filed only in China and lapsed in 2020, so it does not restrict anyone. Other muzzle designs may be patented - see Patent & Production - so we recommend a freedom-to-operate check before volume production.
Are you affiliated with the patent owner?
No. IP2M is an independent design and manufacturing service working from the public patent document.
Request a quote
Click Request a Quote below to see our email address - copy it, or open your email app with a ready-made message. Please mention patent CN208523497U in the subject.
Helpful details to include:
- Your company and sales channel (Amazon, pet retail, vet and grooming supply…)
- Target animals and size range
- Materials - fabric, mesh, neoprene or TPU
- Buckle type, colors and branding
- Estimated quantity and target price
- Timeline - when you would like samples and the first shipment
You can also reach us at (332) 203-9997.
Explore this product
Interested in building this?
Tell us your target market, quantity and timeline. We reply with options for prototyping, small-batch runs or volume production.
Send your inquiry to
Please put CN208523497U in the subject line and tell us your company, country, estimated quantity and timeline.
Prefer to talk? Call (332) 203-9997.
