Adjustable Airbag U-Shaped Neck Pillow with Memory Foam

The problem

Fixed-shape neck pillows fail to fit all users. A pillow sized for an average adult may be too thin for someone with a long neck, offering no support, or too thick for someone with a short neck, forcing the head forward uncomfortably. Additionally, traditional inflatable pillows often require a separate external pump or mouth-blowing, which is unhygienic and inconvenient during travel. Once deflated, many bulky foam pillows do not compress well, taking up excessive space in carry-on luggage. There is a need for a neck pillow that allows precise, independent adjustment of different support zones using integrated, easy-to-use mechanisms, and can be flattened significantly for transport.

The solution

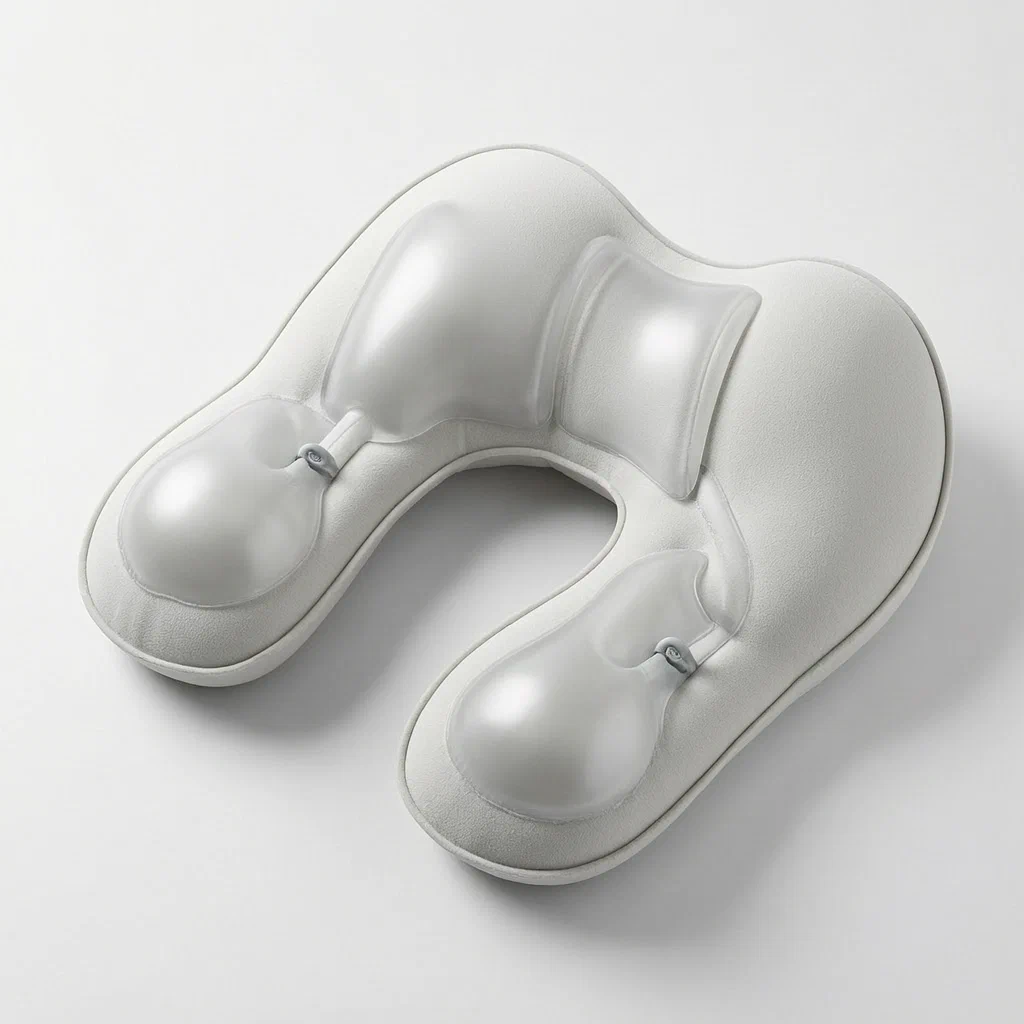

The patent describes a U-shaped pillow constructed with a memory foam outer layer containing three distinct internal air chambers.

1. Central Airbag: Positioned in the middle of the pillow’s curve, this chamber supports the back of the neck. Inflating it raises the head position relative to the shoulders.
2. Side Airbags: Located on either side of the central chamber, these two airbags connect via a communication tube. They provide lateral support for the jaw and cheeks.
3. Inflation System: Two manual squeeze bulbs (first gas cell and second gas cell) are integrated into the ends of the pillow structure. One bulb connects via a tube to the central airbag. The other bulb connects via a tube to the side airbags.
4. Deflation Valves: Each inflation tube features a deflation part (valve). Pressing this valve opens the line, allowing air to escape from the corresponding bag.

Who it is for

• Travel Gear Brands: Companies looking to differentiate their neck pillow lines with adjustable comfort features rather than standard fixed foam.
• E-commerce Sellers: Amazon or Shopify sellers needing a product that addresses common complaints about “one-size-fits-all” pillows being uncomfortable.
• Corporate Gift Suppliers: Businesses ordering premium travel kits where the ability to customize fit adds perceived value.
• Health & Wellness Retailers: Stores selling ergonomic aids for posture, where the ability to fine-tune neck angle is a key selling point for office workers or frequent flyers.

How it works

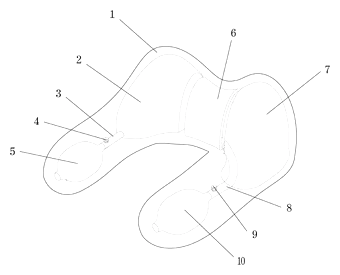

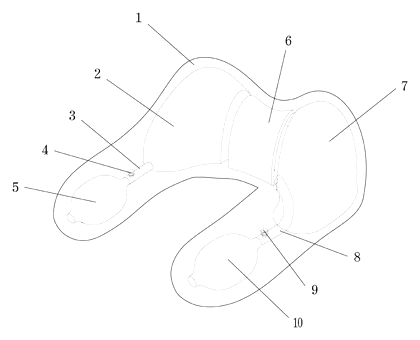

The main parts

Operating steps

1. Inflating Height: The user squeezes the first gas cell (bulb) repeatedly. Air travels through the first inflation tube into the first airbag (center), expanding it and lifting the head.
2. Tightening Fit: The user squeezes the second gas cell. Air flows into the second and third airbags (sides), pushing against the jaw and cheeks to stabilize the head laterally.
3. Adjusting Comfort: Because the bulbs are separate, the user can inflate the center more than the sides, or vice versa, to match their specific neck length and face shape.
4. Packing Up: To store the pillow, the user presses the deflation parts (valves) on the tubes. Air escapes rapidly. The memory foam collapses, and the deflated bladders fold flat, reducing the volume significantly.

Applications

Long-Haul Flights

Passengers use the central airbag to align their neck with the seat headrest, preventing stiffness. The side bags stop the head from rolling forward during sleep, a common issue with loose foam pillows.

Office Workstations

Remote workers or office employees use the pillow for short naps or as a headrest while reading. The adjustable height ensures the neck isn’t bent awkwardly if the desk setup lacks proper monitor stands.

Road Trips

Drivers or passengers in cars use the side airbags to maintain head alignment with the car seat. The squeeze bulbs allow quick adjustments when changing seats or passengers, without needing tools.

Home Relaxation

Used on sofas or beds for reading or watching TV. The user can inflate the pillow slightly to prop up the head against a wall or couch arm, creating a custom ergonomic rest point.

Where it is less suitable

• Heavy Industrial Use: The plastic tubes and valves are not designed for rough handling or extreme pressure; they are best suited for consumer travel.
• Mouth-Breathers: While the side support helps, users who breathe exclusively through their mouths might find the jaw support restrictive compared to open-front designs.
• Very Cold Environments: Standard TPU/PVC materials used in such airbags can become stiff in extreme cold, potentially affecting the ease of inflation until warmed by body heat.
