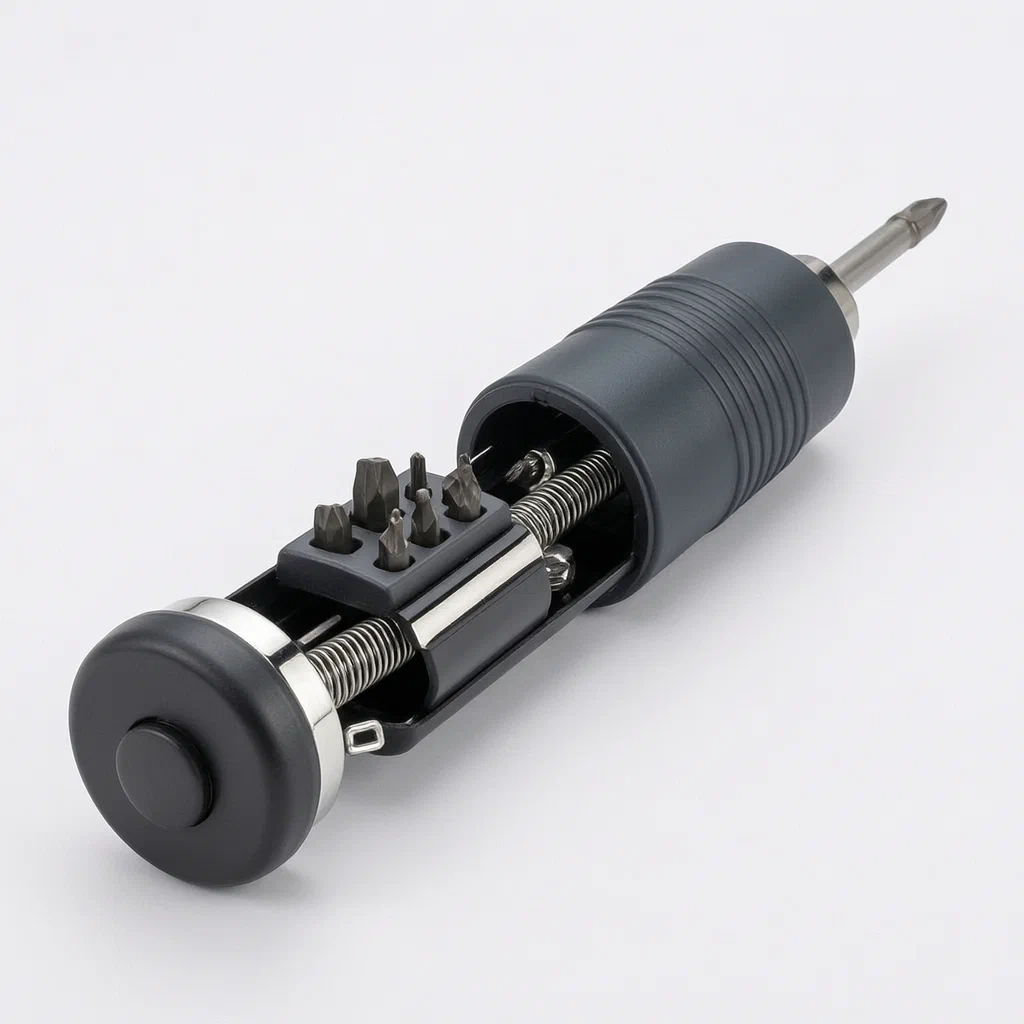

Multifunctional Screwdriver with Internal Bit Storage and Spring-Loaded Slide

The problem

Standard screwdrivers require users to carry loose bits separately or use bulky bit sets. Bits are easily lost, and switching between sizes often involves rummaging through pockets or cases, slowing down work. Existing multi-bit drivers often have external holders that snag on clothing or fail to protect the bits from dirt. There is a need for a compact tool that keeps bits secure, accessible, and protected within the grip itself without increasing the overall profile significantly.

The solution

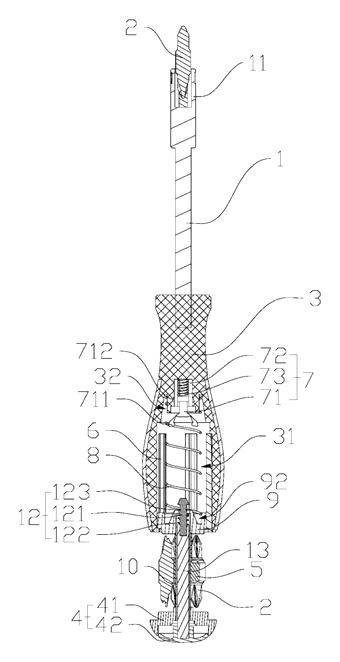

1. The tool consists of an extension bar (1) with a screwdriver bit (2) inserted at one end and a handle (3) at the other.
2. The handle features a cylindrical accommodating chamber (31) sealed by a seal cap (4).
3. A slide bar (13) extends from the seal cap into the chamber, carrying a storage seat (5) that holds multiple bits.
4. A pop-up spring (8) sits at the bottom of the chamber, pushing against the slide (9) attached to the slide bar.
5. A locking mechanism involving a self-lock pin (121) and an elastic card connector (71) holds the slide bar in the retracted position.
6. Pressing the button (42) on the seal cap disengages the lock, allowing the spring to eject the bit tray outward.

Who it is for

• DIY Homeowners: Need a single, tidy tool for occasional repairs without losing small bits.
• Professional Technicians: Require quick access to common bit sizes while keeping their pockets free.
• Tool Kit Manufacturers: Looking to add value to basic kits with integrated storage solutions.
• E-commerce Sellers: Selling compact, high-margin hand tools that differentiate from generic screwdrivers.

How it works

The main parts

Operating Steps

1. Closed State: The slide bar is fully retracted into the handle. The self-lock pin engages with the elastic card connector, held by the compression of the pop-up spring.
2. Unlocking: The user presses the button (42) on the seal cap. This action moves the self-lock pin, disengaging it from the clamping seat.
3. Ejection: With the lock released, the pop-up spring expands, pushing the slide bar and storage seat outward from the handle.
4. Access: The bits on the storage seat are now exposed for selection or swapping.
5. Closing: The user pushes the slide bar back into the chamber until the self-lock pin snaps into the clamping seat again.

Applications

Household Repairs

Ideal for assembling furniture or fixing appliances where different screw types are encountered. The user can quickly switch between Phillips and flathead bits without searching for them.

Electronics Assembly

Technicians working on small devices benefit from having precise micro-bits stored safely inside the handle, protecting tips from damage and contamination.

Automotive Maintenance

Useful for tightening interior panels or battery terminals. The compact size fits in tight spaces, and the integrated storage ensures the right bit is always available.

Tool Kits and Promotional Items

Manufacturers can brand these handles easily. They serve as practical gifts or entry-level tools in comprehensive home repair kits.

Where it is less suitable

• Heavy-Duty Industrial Use: The spring-based ejection mechanism may not withstand extreme torque or harsh chemical environments compared to solid steel ratchets.
• High-Vibration Environments: While locked, prolonged vibration might theoretically loosen the latch if tolerances are not precise, though the patent describes a positive mechanical lock.
• Single-Bit Tasks: For jobs requiring only one specific bit, a standard simple screwdriver is lighter and cheaper.
