Reversible Fishing Seat-Box Lid with Backrest

Anglers sit on their tackle box for hours, so the lid is really a seat. This lid has two faces that can be swapped: it lifts off removable hinge pins, turns over and goes back on. One face can carry a seat cushion, a fold-flat backrest and a small lidded compartment; the face you are not using sits inside the box, out of the dirt and rain.

  • China utility model - lapsed
  • No filings outside China
  • Fishing & outdoor
  • Molded plastic, no electronics
Request a Quote How it works →
Reversible Fishing Seat-Box Lid with Backrest - patent drawing

🔄

Two-faced lid

The lid lifts off removable hinge pins and flips, so either face can be on top.

🪑

Seat cushion and backrest

A cushion and a fold-up backrest on a U-shaped frame turn the box into a proper seat.

🗃️

Compartment in the lid

A recessed compartment with a hinged, spring-latched cover for small items.

🧼

Unused face stays clean

The face you are not using sits inside the box, away from mud, bait and rain.

🔥 Popularity – views

Bring this product to market

  1. ✓ Patent vetted China-only family and legal status checked
  2. 2 Product brief · now How it works, uses and options written up
  3. 3 Prototype First samples for buyers to review
  4. 4 Pilot run Small first batch for launch customers
  5. 5 Volume production Repeat orders at scale

Buyer interest

– of 100 buyers needed to start prototyping

or request a quote Share to speed it up:

One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.

Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.

Join the build team

Want to develop this product with others? Tell us what you can bring. When the team has enough people, we introduce the members to each other by email.

I can help with (pick any)

Letters only. The team list on this page shows your country and the first 5 letters of your name (e.g. "Micha**"); leave the name blank to appear as "Anonymous".

No money is collected on this site. IP2M does not hold or manage funds, and pledges are non-binding. We email you a link to confirm; only confirmed members are introduced to each other. See our privacy policy.

The problem

On the bank or the pier, a fishing seat box does two jobs: it carries the tackle and it is the angler’s seat for hours. A plain flat lid is hard to sit on for long, and pads or backrests fixed on top get wet and dirty, take up room in the car and make the box hard to stack. The patent also aims for a lid that can be used on its own, away from the box.

The solution

The patent gives the lid two opposite faces that can be swapped:

  1. The lid (2) is made of a first face (21) and a second face (22) back to back.
  2. It sits on the box (1) on removable hinge pins (3). Pull the pins, turn the lid over and refit it - now the other face is on top, and the unused face is inside the box.
  3. A side wall (23) on the lid has a groove (231) that fits a matching ledge on the box rim, so the lid seats firmly.
  4. A face can carry a seat cushion (4) partly set into a recess (5), a backrest (6) on a U-shaped frame (61) that folds flat into a second recess (7), and a storage compartment (8) with a hinged cover (81) held by a spring-loaded latch.
  5. Because the lid comes off, it can also be used on its own, for example as a separate seat.
Reversible Fishing Seat-Box Lid with Backrest - Patent drawing - lid face with backrest

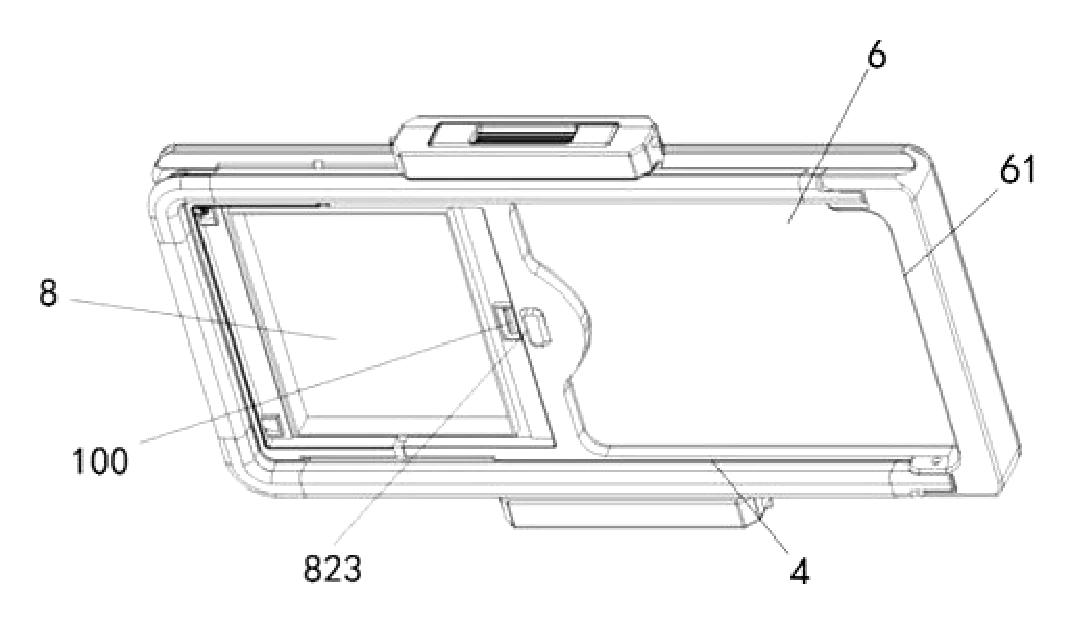

Patent figure 6 - a lid face with the backrest (6) on its frame (61), cushion (4) and the storage compartment (8).
