Patent Information & Production OptionsReversible Fishing Seat-Box Lid with Backrest · Patent CN208624426U

Patent CN208624426U: bibliographic data, legal status, family, a plain-language reading of the claims, plus customization, US compliance points and how a manufacturing project runs.

At a glance

Patent numberCN208624426U (application CN201821234413)
TypeChina utility model (实用新型) - protects product shape and structure
Original titleFishing box lid structure (一种钓鱼箱盖结构)
Patent ownerSuzhou Ruiying Outdoor Products Co., Ltd. (苏州锐颖户外用品有限公司)
InventorTang Xinjun
Priority date2017-09-26 (Chinese application CN201710870069)
Filing date2018-08-03
Grant date2019-03-22
Status (China)Lapsed - terminated for non-payment of annual fees (recorded 2022-07-15)
Patent familyChinese filings only - no US, European, Japanese, PCT or other filings listed
Cited by1 later document
SourceGoogle Patents (search for CN208624426U)

What the claims cover, in plain language

Claim 1 - a fishing box with a hollow body and a lid. The lid has a first face and an opposite second face; when the lid is closed, one of them sits inside the box. The lid is joined to the box by a removable hinge shaft, so the two faces can swap places.

Claim 2 - a groove in the lid’s side wall that fits a ledge on the box rim. Claim 3 - a cushion on one end of a face, with one edge set into a first recess. Claims 4-5 - a backrest on a hinged bracket with a back pad, folding into a second recess. Claims 6-8 - a storage chamber in a face with a hinged cover plate, held by a two-part buckle; one part is a hook on a hinged connecting piece, released by a spring-loaded button. Claim 9 - the two faces are fastened together. Claim 10 - at least one side of the lid is hinged to the top edge of the box, and/or two symmetric removable shafts let the lid open from either side.

This is a simplified reading for orientation only. The legal scope is defined by the exact claim wording in the official Chinese document.

What this means for US production

This patent was filed only in China, and it lapsed for non-payment of annual fees (recorded in 2022). It no longer restricts anyone - in China or elsewhere.

Before production, keep in mind:

  • Other patents may exist. Fishing seat boxes, tackle boxes with seats and camp seats are made by many brands, some with US patents or design patents. Use your own styling and have a freedom-to-operate (FTO) search done by a US patent attorney before volume production.

Customization and manufacturing

What can be customized

AreaOptions
BoxSize, number of trays and drawers, shoulder strap, adjustable legs
Lid facesCushion, backrest, storage compartment, rod-holder sockets, plain work surface
BackrestHeight and padding; fold-flat frame
MaterialsPP or HDPE box; EVA or foam cushion; steel or aluminum backrest frame
Color & brandingBrand colors, logo on lid and box
PackagingRetail carton with hang tags

Things to plan for (US market)

  • Seating load - test the lid, hinge pins and box as a seat for the rated weight, and state the limit on the label.
  • Pinch points - check the folding backrest and latch.
  • Materials and labels - check plastics and foam against California Proposition 65; mark the country of origin.

How a project runs

  1. Inquiry - box size, lid features and quantity.
  2. Design - lid faces, hinge pins, backrest and latch.
  3. Prototype - samples for seating-load, flip and latch tests.
  4. Pilot run - small batch to check molding and assembly.
  5. Production - volume production, packaging and shipping.

Quantities & timeline

The box and both lid faces are injection-molded; the cushion and backrest frame are simple added parts. Send us your size, features, quantity and target price and we will reply with options.

Patent drawings

Reversible Fishing Seat-Box Lid with Backrest - Patent Fig. 1

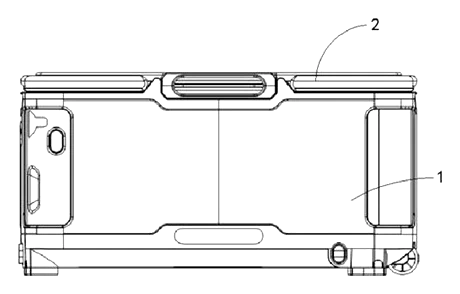

Fig. 1 - Fishing box: 1 box; 2 lid.
Reversible Fishing Seat-Box Lid with Backrest - Patent Fig. 2

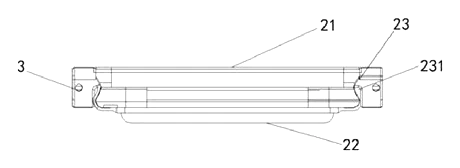

Fig. 2 - Lid from the side: 21 first face; 22 second face; 23 side wall; 231 groove; 3 removable hinge shaft.
Reversible Fishing Seat-Box Lid with Backrest - Patent Fig. 3

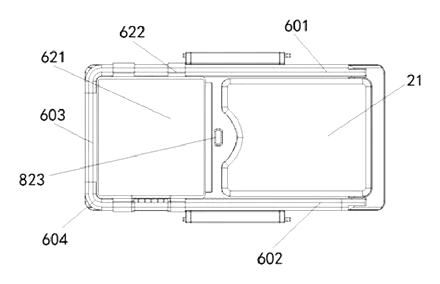

Fig. 3 - Face with the backrest folded: 601-604 frame bars; 621 back pad; 622 lugs; 823 button.
Reversible Fishing Seat-Box Lid with Backrest - Patent Fig. 4

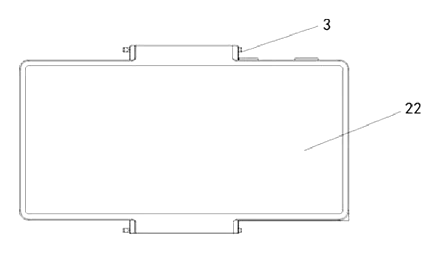

Fig. 4 - The second face (22) with the hinge shafts (3).
Reversible Fishing Seat-Box Lid with Backrest - Patent Fig. 5

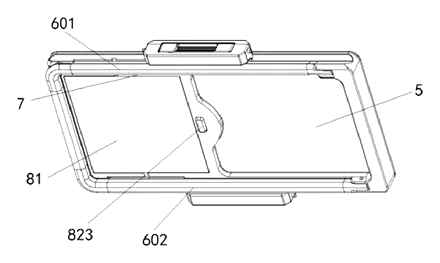

Fig. 5 - Face with recesses: 5 first recess; 7 second recess; 81 compartment cover; 823 button.
Reversible Fishing Seat-Box Lid with Backrest - Patent Fig. 6

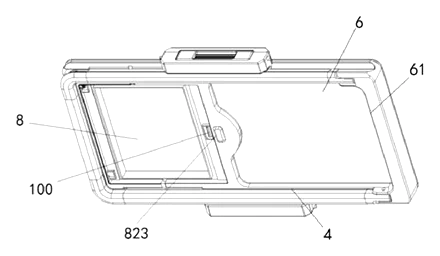

Fig. 6 - Face with the backrest raised: 4 cushion; 6 backrest; 61 bracket; 8 storage compartment.
Reversible Fishing Seat-Box Lid with Backrest - Patent Fig. 7

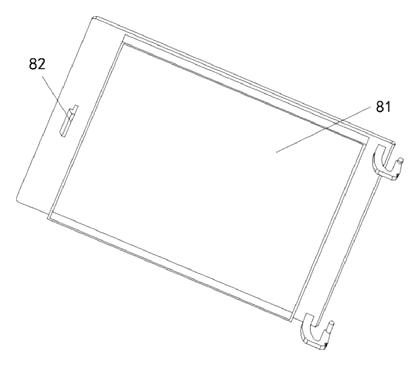

Fig. 7 - Compartment cover (81) with the first buckle (82).
Reversible Fishing Seat-Box Lid with Backrest - Patent Fig. 8

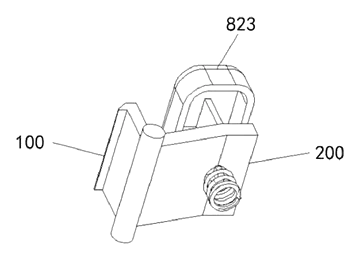

Fig. 8 - Latch detail with the button (823) and spring.
Reversible Fishing Seat-Box Lid with Backrest - Patent Fig. 9

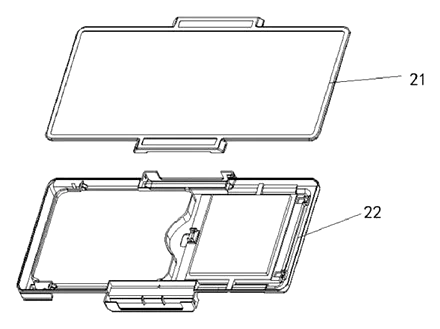

Fig. 9 - The two faces of the lid (21, 22).

Drawings reproduced from the public patent document for reference.
