Most mosquito repellers release their liquid all the time, whether mosquitoes are there or not, so refills run out fast. This fan waits until it hears them. On top sits a small dish that reflects sound onto a directional microphone; a motor turns the dish around and tilts it up and down, scanning the area. When the detector picks up the hum of mosquito wings, the control circuit switches on the fan and the humidifier, which mists liquid from a tank into the airflow and out through the outlet. A body-heat sensor stops or changes the spray when someone is near.
- China utility model - in force in China until Aug 2028 at most
- No filings outside China
- Mosquito control & patio
- Fan, ultrasonic mister, microphone, sensors
Splat! What let you down?
👂
Listens for mosquitoes
A turning dish focuses sound onto a directional microphone tuned to mosquito wingbeats.
💨
Sprays only when needed
The fan and mister start when mosquitoes are detected, instead of running all the time.
🧍
Pauses near people
An infrared body sensor stops or changes the spray when someone comes close.
🔁
Scans the area
Motors turn the dish around and tilt it up and down to cover the surroundings.
Bring this product to market
- ✓ Patent vetted China-only family and legal status checked
- 2 Product brief · now How it works, uses and options written up
- 3 Prototype First samples for buyers to review
- 4 Pilot run Small first batch for launch customers
- 5 Volume production Repeat orders at scale
Buyer interest
– of 100 buyers needed to start prototyping
One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.
Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.
The problem
Mosquito repellers for patios and rooms - plug-in vaporizers, scented misters, fan units with a refill - mostly work on a timer or run constantly. The patent points out the weakness: the liquid is used up whether mosquitoes are present or not, so refills are bought often, and people nearby breathe the vapor all the time. It proposes a fan that only releases its liquid when it detects mosquitoes, and stops near people.
The solution
The patent combines a sound detector, a fan and a mister in one housing:
- A housing (6) has an air inlet (61) and an air outlet (62); some versions add guide vanes (63).
- On top sits a rotating mosquito-sound detector (1): a base (1300), a turning seat (130) with the detector circuit, a turning mechanism (13) with motors and gears that rotate it around and tilt it up and down, a concave sound-collecting dish (12) and a directional microphone (11) at its focus.
- Inside are a fan (2), a humidifier (3) - a mister next to the outlet - and a liquid tank (4) with the repellent liquid (41).
- A control circuit (5) receives the detector’s signal and runs the fan and humidifier.
- Infrared body sensors (7) on the housing tell the circuit when a person is near, so it can pause or change the spray.
Who it is for
- Outdoor-living and patio brands selling fans, heaters and mosquito products for decks and backyards.
- Pest-control device companies looking for a demand-driven repeller that uses less refill liquid.
- Smart-home and IoT brands that could add app alerts or mosquito activity logs to the detector.
- Hospitality suppliers for outdoor restaurants, resorts and campsites.
How it works
The main parts
| No. | Part | What it does |
|---|---|---|
| 1 | Sound detector | Turning, tilting head that listens for mosquitoes. |
| 11 | Directional microphone | Sits at the focus of the dish. |
| 12 | Sound dish | Concave reflector that gathers sound from one direction. |
| 13 | Turning mechanism | Motors, gears and a worm drive for rotation and tilt. |
| 2 | Fan | Moves air from the inlet to the outlet. |
| 3 | Humidifier / mister | Turns the tank liquid into mist in the airflow. |
| 4 | Liquid tank | Holds the repellent liquid. |
| 5 | Control circuit | Runs the fan and mister from the detector and body-sensor signals. |
| 6 | Housing | Inlet (61), outlet (62), optional guide vanes (63). |
| 7 | Infrared body sensor | Detects people near the unit. |
A typical cycle
- Scan - the detector head turns and tilts, listening through the dish.
- Detect - the circuit recognizes mosquito wingbeat sound.
- Release - the fan and mister start and send the liquid out as a fine mist.
- Protect people - if the body sensor sees someone close, the spray is paused or changed.
- Rest - when no mosquitoes are heard, the fan and mister stop, saving liquid.
Three body styles

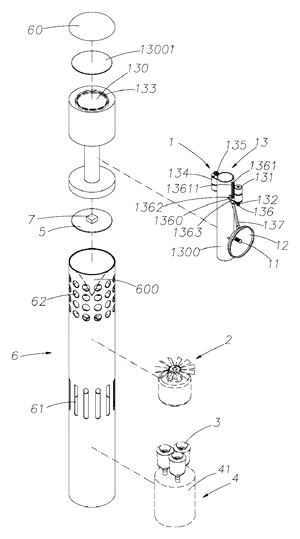

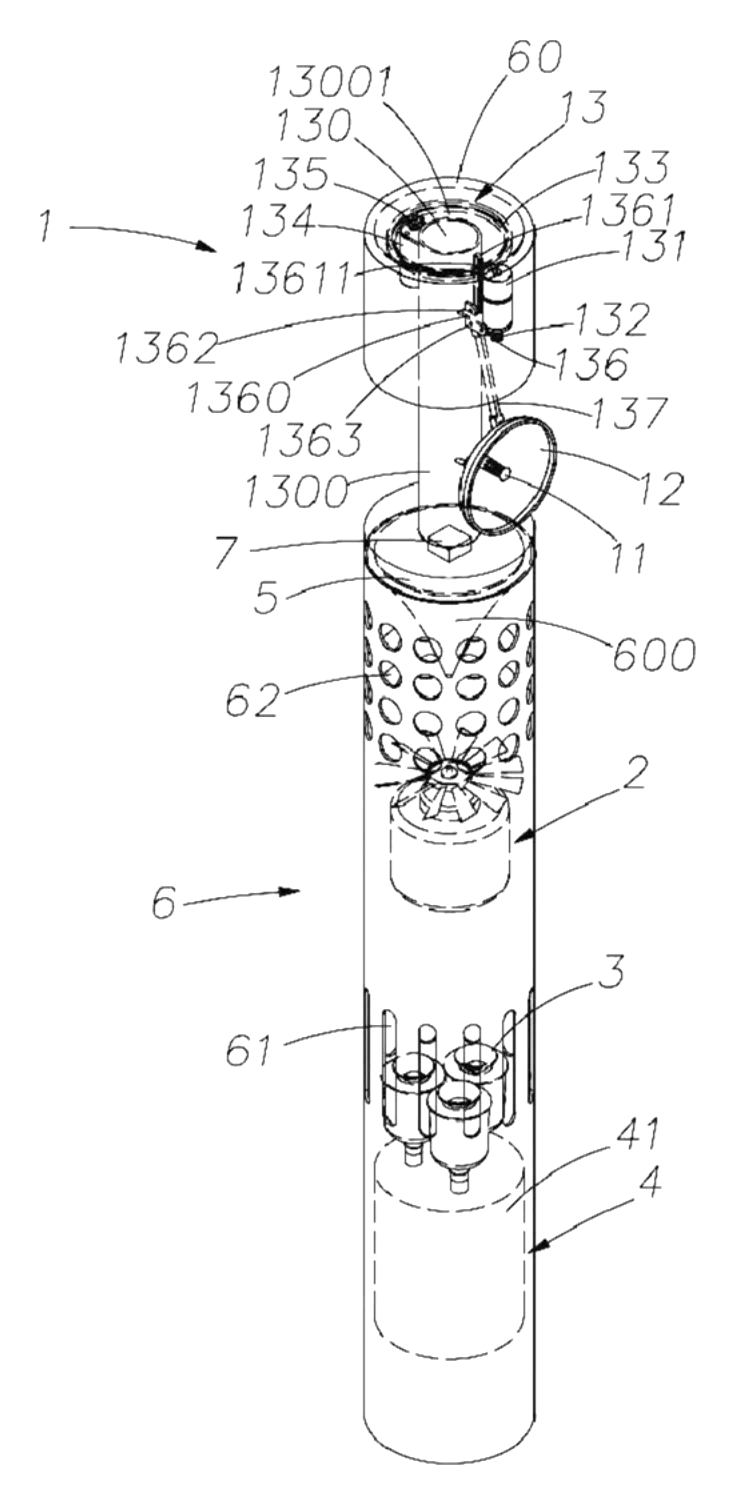

The patent shows three versions: a slim tower (figures 1-3), a version with the detector beside the head (figures 4-6) and a tall cylinder with guide vanes around the outlet (figures 7-9).
