Multi-Function Rock Hammer with Telescoping Handle, Built-In Light, Magnifier and Scale

The problem

Field geology means carrying many small tools: a hammer to break and trim rock, a hand lens to read grain and minerals, a scale for photographs, and a light for shaded outcrops, caves and late returns. Each is easy to lose and slow to reach with gloves on. A fixed-length hammer is also a compromise - long for power, short for packing and close work.

The solution

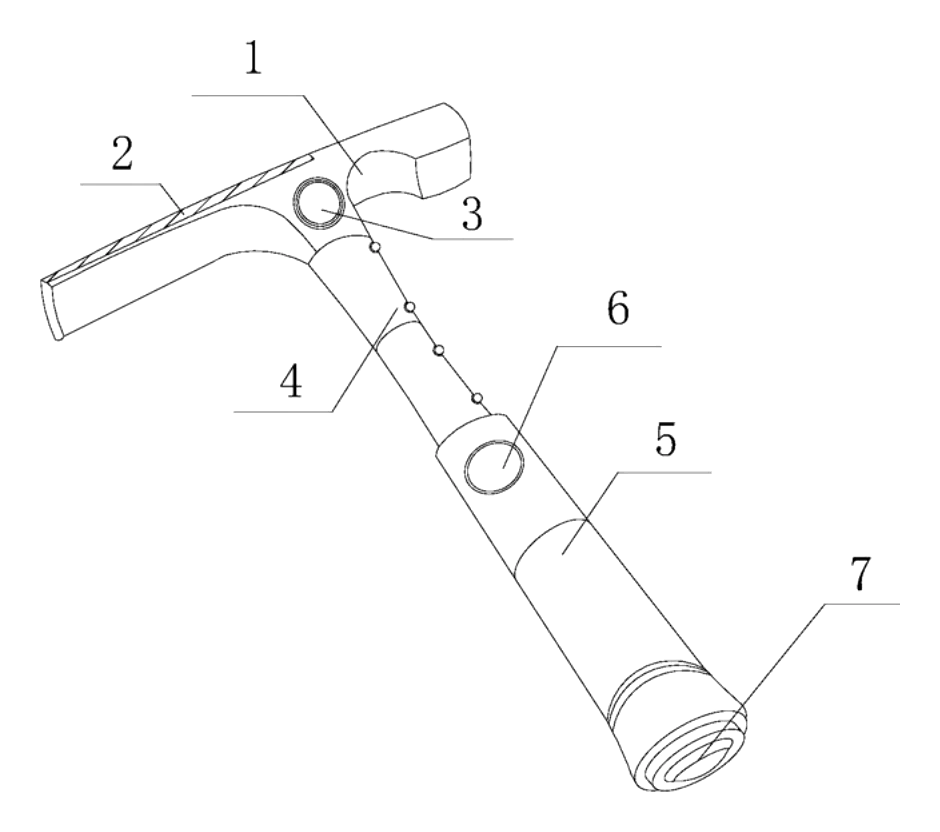

1. The hammer head (1) has a centimeter scale (2) bonded to its top front face.
2. A hanging ring (3) is pivoted at the head through a hinge (9) running in an annular groove (8), so it folds out to hang the hammer.

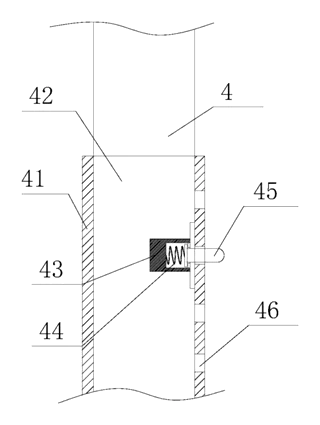

3. The head is joined to the handle (5) through a telescopic device (4): a telescopic rod (42) slides in a fixed rod (41). Inside the telescopic rod, a return spring (44) in a groove (43) pushes a round locking pin (45) out into one of four holes (46) in the fixed rod.
4. A magnifying glass (6) is plugged into the top of the handle.

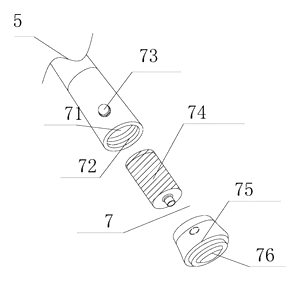

5. A lighting device (7) in the handle end has a mounting bore (71) with a thread (72), a switch (73), a battery (74), a protective cap (75) and a lamp (76).

Who it is for

• Geology and field-equipment suppliers selling to university departments, survey companies and students who need a complete field hammer.
• Rockhounding and fossil-hunting brands looking for a hobby hammer with a clear story on the package.
• Outdoor and camping retailers wanting a multi-tool hammer for tent pegs, splitting kindling and trail use.
• Educational kit makers building earth-science field kits for schools and summer camps.

How it works

The main parts

In the field

1. Set the length - press the pin, slide the handle to a hole and let the pin snap in: long for heavy blows, short for trimming and packing.
2. Break and trim samples with the head.
3. Inspect the fresh surface with the built-in magnifier.
4. Photograph the sample next to the scale on the head.
5. Light up a shaded outcrop or the walk back with the grip flashlight; unscrew the cap to change the battery.
6. Hang it from a belt or pack by the fold-out ring.

Applications

University field courses

Students get one tool that covers hammer, lens, scale and light on mapping trips.

Rockhounding and fossil collecting

Hobby collectors split nodules, check crystals and photograph finds with a scale.

Survey and exploration crews

Geologists logging outcrops and core carry fewer separate tools.

Camping and outdoor use

A short, light hammer with a flashlight handles tent pegs and camp chores after dark.

School earth-science kits

A kit hammer that shows several field skills in one tool.

Where it is less suitable

• Heavy demolition or masonry - the telescoping joint is not meant for sledge-type work.
• Professional geologists wanting a solid one-piece hammer - some prefer forged single-piece hammers for maximum durability.
• Wet or underwater use - the flashlight would need a sealed, rated design.
