Magnetic Double-Sided Window Cleaner with Dial-Set Magnet Strength

The problem

Magnetic window cleaners let you clean the outside of a window from inside, but they have three weak points:

• Rust - the neodymium magnets are usually only zinc-plated. Water gets in, the plating corrodes, and the magnet weakens year by year.
• Hard to adjust - windows range from single panes to thick double or triple glazing. Knob adjusters give only a narrow range (the patent says about 8-10 mm) and take many turns; others use loose spacer plates that get lost.
• Pinched fingers - strong magnets snap the two halves together hard.

The solution

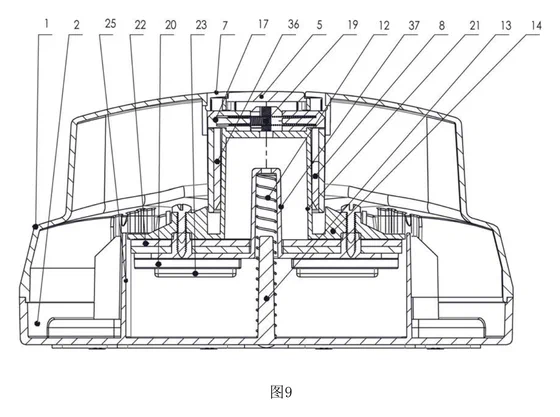

1. The permanent magnet (23) and its steel backing plate (22) sit in a sealed box (15) with a gasket (16), so water cannot reach them.
2. The sealed magnet unit can slide up and down in a guide frame (25) through an opening (24) in the cleaning half’s base.

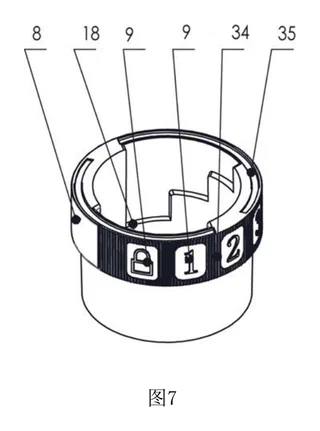

3. A magnetic dial (8) in the handle has steps of different heights (18, 36) and numbered markings (9). The step you select sets how close the magnet can come to the glass - and so the strength.
4. A button (5) with a latch (17) engages the magnet at the preset level. A jump-off spring (12) holds the magnet unit back otherwise, which the patent describes as an automatic anti-pinch function.

Who it is for

• Cleaning-tool brands and Amazon sellers in the magnetic window cleaner category.
• Home-improvement retailers selling to homes with double- and triple-glazed windows.
• Window and glazing suppliers offering a cleaning accessory.

How it works

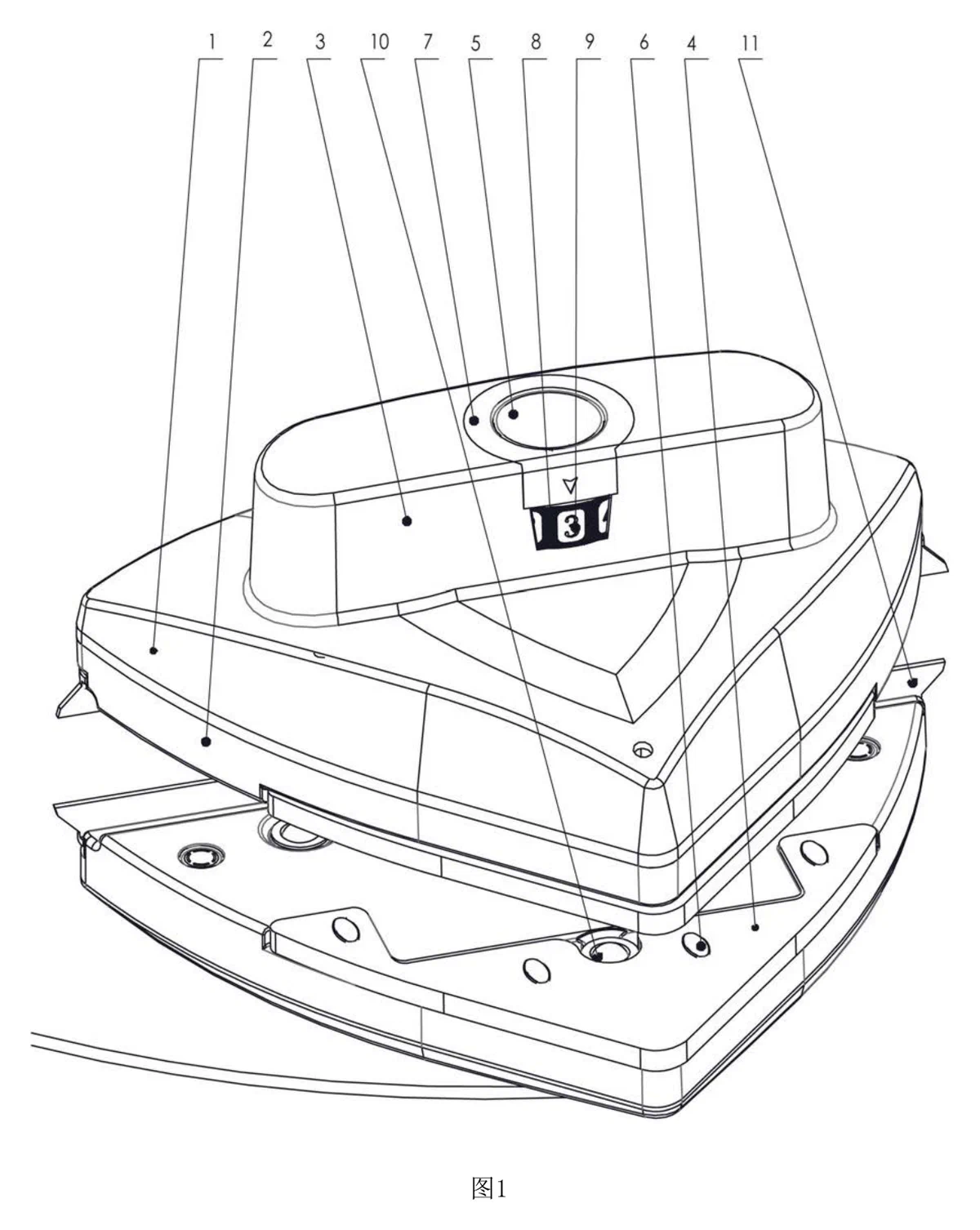

The main parts

Setting the strength

The dial is a hollow ring with steps of different heights inside. Each step is a stop for the magnet unit: a lower stop lets the magnet come closer to the glass (stronger hold for thick glazing), a higher stop keeps it farther away (gentler hold for thin glass). The markings on the dial show which stop is selected.

1. Turn the dial to the setting that matches the glass.
2. Press the button (5): the latch (17) moves and the magnet unit drops to the selected stop, so the two halves hold through the glass.
3. Clean - guide the inside half; the outside half follows.
4. The dial only needs to be changed when you move to glass of a different thickness.

Sealed against rust

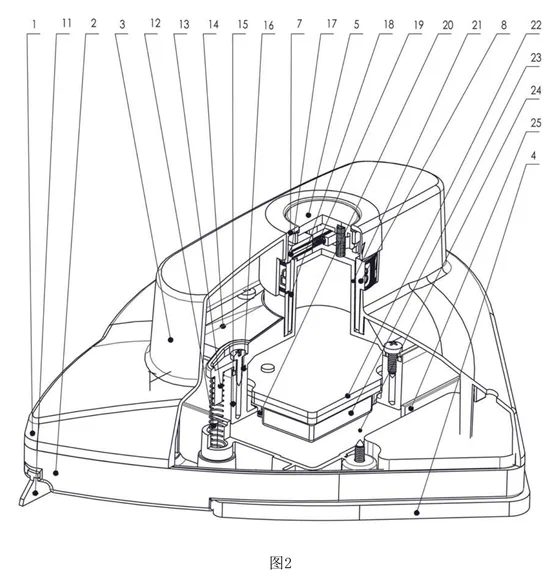

The magnet (23) and its plate (22) are enclosed by the carrier (14) and sealed box (15), with a gasket (16) between them. The whole sealed unit slides in its guide frame (25), so the strength can be changed without opening the seal.

Applications

High-rise apartments

Cleaning the outside of windows that cannot be reached from outside or opened fully.

Homes with double or triple glazing

The dial covers different glass thicknesses with one product, instead of separate models.

Offices and storefronts

Fixed glass panels and shop windows cleaned from one side.

Sunrooms and glass partitions

Large panes cleaned on both faces in one pass.

Retail and online sales

“Dial to your glass thickness” and “sealed magnet” are clear selling points on a package or product page.

Where it is less suitable

• Very thick or laminated security glass beyond the designed range - the magnets may not hold.
• Windows with grilles, screens or deep frames - the outside half needs a clear path.
• Professional high-rise façade cleaning - rope access or water-fed poles are still needed.
