Padded Toe-Box Shield for Sneakers

The problem

In basketball and other court sports, players step on each other’s feet all the time. The soft upper of a sneaker gives the toes little protection, and the toe box gets dented and creased. Players and sneaker collectors both want the front of the shoe to keep its shape.

The solution

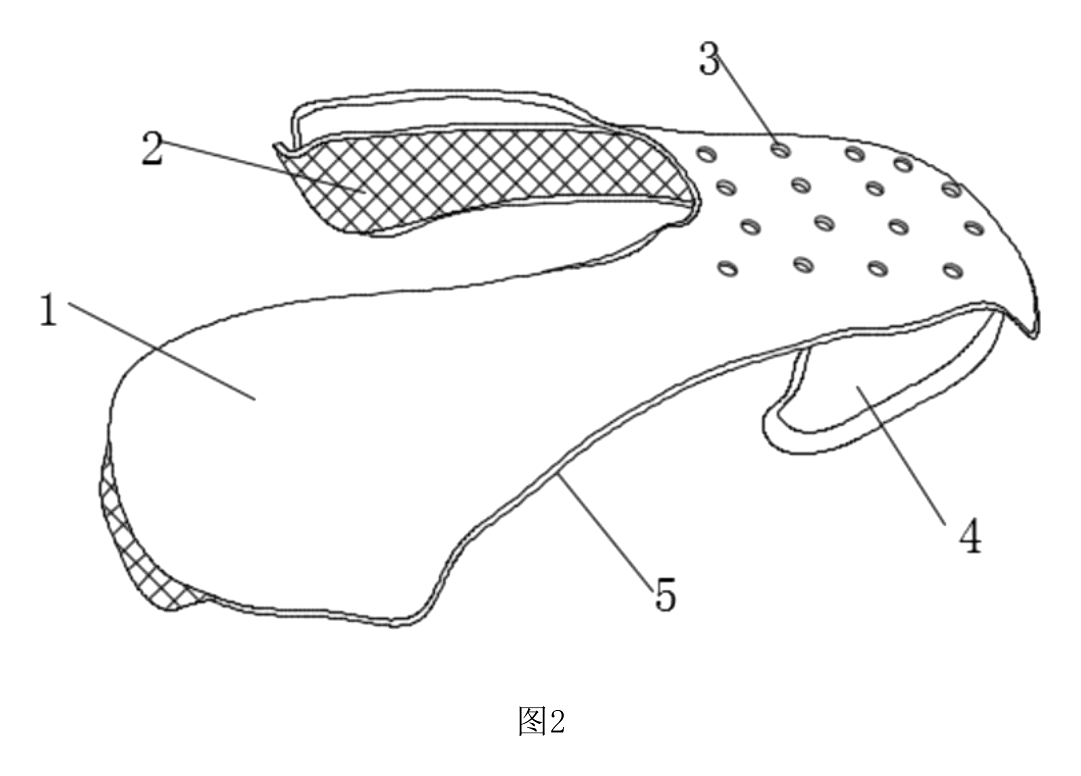

A cap-shaped insert that sits inside the front of the shoe:

1. A protective cover (1) - a three-dimensional, half-enclosing cap of semi-rigid plastic - follows the inside of the toe box.
2. The whole inside is lined with a silicone layer (2), glued in place and wrapped around the rear edge, so the edge does not rub the foot.
3. Crescent-shaped foam pads (4) at the front - two thin layers and one thick layer - cushion the toes.
4. Groups of small air holes (3) on the front let the shoe breathe.
5. An opening (5) along the front lower side helps the cap fit the shoe.

Who it is for

• Sneaker-care and sports-accessory brands looking for a product between “crease protector” and “toe guard”.
• Basketball and court-sport retailers selling add-ons at checkout or online.
• Amazon sellers in the shoe-accessory category.

How it works

The main parts

How the layers work together

• The plastic cap is hard enough to spread a sudden load from above, the front or the sides, but the patent calls for a semi-hard, slightly flexible plastic so it stays light and does not affect balance.
• The silicone lining gives a soft, non-slip surface against the foot and covers the cap’s edge.
• The stepped foam pads fill the space over the toes, so the forefoot is held more snugly.
• The air holes let heat and moisture out of the front of the shoe.

Using it

1. Choose the size that matches the shoe size.
2. Slide the shield into the front of the shoe, foam side facing the toes.
3. Put the shoe on as usual and lace it.
4. After play, leave it in the shoe to help keep the toe box in shape - or swap it into another pair.

Applications

Basketball

The use case in the patent: cushioning the toes and toe box when players step on each other’s feet.

Volleyball, futsal and other court sports

Sports with quick stops and crowded play where toes get stepped on.

Sneaker care and collecting

Keeping the toe box from creasing and denting, while worn and on the shelf.

Shoe storage and travel

The cap keeps the front of the shoe in shape when shoes are packed or stacked.

Retail add-on

A low-cost accessory sold next to court shoes or bundled with sneaker-care kits.

Where it is less suitable

• Work and safety footwear - this is not a safety toe cap and is not tested to safety-footwear standards; certified steel or composite toe shoes are needed for workplace protection.
• Tight-fitting shoes - the shield takes some room; it works best in shoes with a normal toe box.
