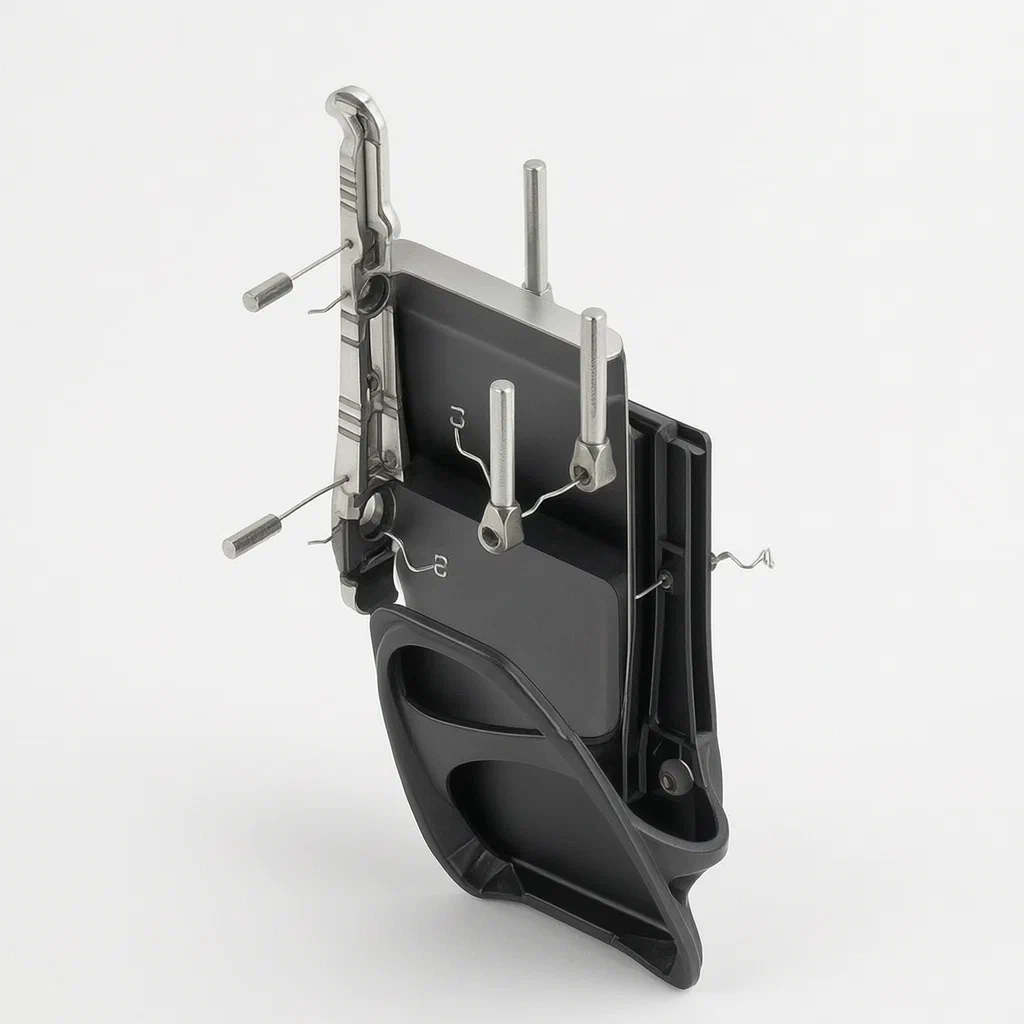

Bicycle Bottle Cage with Integrated Tire Levers and Wrench Tools

The problem

Cyclists often face minor mechanical issues like flat tires or loose bolts during rides. Traditionally, carrying repair tools requires a separate accessory, such as a seat post tube, a frame-mounted box, or a saddlebag. These add-ons increase bulk, can interfere with leg movement, and may rattle or fall off if not mounted securely. Standard bottle cages only hold water bottles, leaving no dedicated space for tools. Users must choose between carrying enough water or carrying enough tools, or pay for and install two separate mounting points. There is a need for a single component that serves the primary function of holding a bottle while also providing secure, integrated storage for essential roadside repair items.

The solution

The patent describes a bicycle bottle cage that incorporates a tool set directly into its mounting structure.

1. Back Plate Structure: The cage includes a back plate with an inwardly concave storage space formed in front of it.
2. Mounting Mechanism: A hollow part and a combination hole are located on the bottom surface of this space. A bolt passes through the combination hole and extends backward to attach the cage to the bicycle frame.
3. Tool Retention: The bolt head is contained within the storage space. The top edge of the back plate is bent forward to form an abutting part.
4. Tire Lever Integration: A tire lever rod features a working end and a hooked fixing end. The back of the lever has a locking recess, a first accommodating groove, and a second accommodating groove.
5. Wrench Storage: Wrench tool rods of different specifications are placed in the accommodating grooves and pivotally grouped there.
6. Assembly: The tire lever is pressed into the storage space. Its locking recess clamps the bolt head, and its fixed end is fastened against the abutting part of the back plate. This locks the lever and the attached wrenches in place.

Who it is for

• Bicycle Accessory Brands: Companies looking to differentiate their bottle cage lines with functional multi-use designs.
• Touring Cyclists: Riders who want to minimize gear weight but keep essential repair tools accessible on the frame.
• Commute Bike Manufacturers: OEMs seeking to provide practical, low-maintenance utility features for city bikes.
• E-commerce Sellers: Amazon or Shopify sellers targeting customers searching for “bike tool kit” alternatives that save space.

How it works

The main parts

Operating Steps

1. Installation: Pass a bolt through the cage’s bottom combination hole and thread it into the bike frame. The bolt head remains inside the concave space.
2. Loading Tools: Place wrench tool rods into the first and second accommodating grooves on the back of the tire lever.
3. Securing Lever: Press the tire lever rod into the storage space. Align the locking recess over the bolt head to clamp it.
4. Locking Position: Ensure the hooked fixing end of the lever contacts the abutting part at the top of the back plate. This prevents the lever from sliding out.
5. Usage: When a repair is needed, release the lever from the abutting part and slide it out of the storage space. The wrenches remain attached to the lever via the grooves.

Applications

Road Cycling Repairs

Road cyclists dealing with punctures can access tire levers immediately without unpacking a jersey pocket or saddlebag. The integration keeps the tools organized and prevents them from falling onto the road during high-speed travel.

Commuter Utility

Daily commuters benefit from having wrenches available for tightening loose fender bolts or adjusting rack mounts. The design hides the tools aesthetically, maintaining the clean look of the bike while providing functional utility.

Touring and Adventure

Long-distance riders use this setup to carry a minimal toolkit. By combining the water bottle holder with tool storage, they reduce the total number of mounting points needed on the frame, saving weight and reducing clutter.

City Bike Share Fleets

Operators of rental bikes can equip fleets with cages that allow users to perform basic adjustments or fixes. This reduces maintenance calls for simple issues like loose screws, improving fleet reliability.

Where it is less suitable

• Heavy Off-Road Use: Mountain bikers may prefer larger, more robust tool kits housed in dedicated frame bags due to the volume of tools required.
• Aesthetic Purists: Some cyclists prioritize lightweight, minimalist carbon cages and may find the added bulk of the integrated tool system undesirable.
• Specialized Mechanics: Professional mechanics need comprehensive tool sets that exceed the capacity of a few pivotable wrench rods.
