Quick-Access Luggage with Fold-Down Back Compartment

The problem

Every traveler knows the moment: you are in the security line or at the gate, and the item you need - a passport, a charger, headphones - is inside the suitcase. Opening a hard-shell case means laying it flat and unzipping it in public.

Soft-sided luggage has outside pockets, but hard-shell cases usually have none. Travelers end up juggling extra pouches, a separate backpack, or stuffing items in their jacket.

The solution

This design builds a small, rigid storage compartment into the back panel of a hard-shell trolley case:

• The compartment is a molded box (base) set into an opening in the shell, right between the two telescoping handle rails.
• A cover hinged at the bottom flips down to open and snaps back up to close; a lock holds it shut.
• Inside, a mesh pouch keeps small items in place, and two small stoppers on the lid form a slot for a phone or cards.
• A USB cable runs from the compartment to a USB port in the case’s zipper-lock area, so a power bank stored in the compartment can charge a phone plugged in outside.

Who it is for

• Luggage brands and Amazon sellers who want a visible, easy-to-explain feature that sets their hard-shell line apart.
• Business-travel and carry-on collections, where quick access to a laptop charger, passport and phone is a real selling point.
• Corporate gifting and promotional luggage - the lid is a natural place for a printed logo.

The feature adds only a molded insert, a hinged lid, a small lock and a mesh pouch to a standard trolley case - an easy upgrade for any luggage factory.

How it works

The main parts

Using it

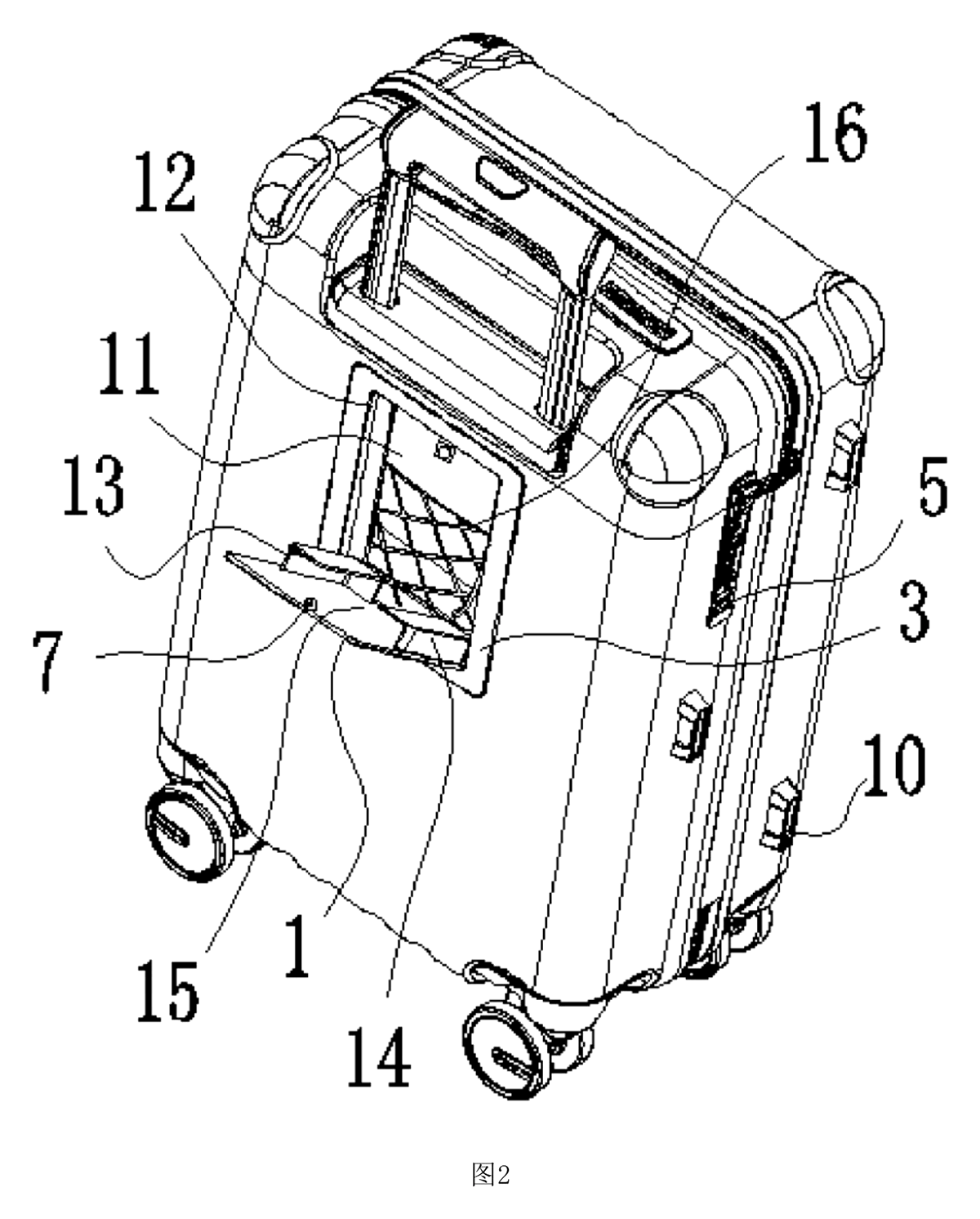

1. Unlock and flip down. Release the lid lock (7) and the lid (1) swings down on its lower hinge (6), staying attached to the case.
2. Grab or stow. Reach into the cavity (11): small items sit in the mesh pouch (16); a phone or boarding pass can sit in the slot on the lid.
3. Charge. A power bank stored in the compartment connects to the USB cable (4), which leads to the external USB port (5) - plug your phone in there.
4. Close and lock. Push the lid back up until it locks. The case can be packed and rolled as usual.

Design notes

• Shape: the patent allows a round, oval or polygonal compartment; rectangular fits phones and passports best.
• Placement: between the trolley rails, where the case back is already reinforced for the handle. The compartment takes a small part of the interior; its depth is a trade-off to set during design.
• Strength: the base is a separate molded part, so the shell keeps its strength around the opening.

Applications

Airport and air travel

At check-in, security and the gate, travelers repeatedly need the same few things: passport, boarding pass, phone, headphones. A compartment that opens while the suitcase stands upright keeps them one flip away.

Business travel and carry-ons

For a carry-on that goes from taxi to airport to hotel to meeting, quick access to a phone charger, power bank, cables and business cards is a strong selling point - and the USB port lets travelers top up their phone while waiting.

Family travel

Parents can keep tickets, snacks, wipes or a small toy in the compartment instead of digging through bags with children in tow.

Branded and promotional luggage

The flat lid on the back is a clean spot for a logo, a nameplate or a luggage-ID window - useful for corporate gifts, hotel and airline partner programs, or school and sports team luggage.

A feature for a whole luggage line

The compartment is a separate molded part, so the same idea can be used on:

• carry-on (20"), medium (24") and large (28") hard-shell cases;
• aluminum-frame cases;
• kids’ ride-on and themed suitcases.

Where it is less suitable

• Ultra-light luggage where every gram counts - the base, lid and lock add some weight.
• Soft-sided luggage, which can simply use fabric front pockets instead.
