Lift-Up Storage Bed with Four-Bar Linkage That Slides the Deck Away from the Headboard

The problem

A lift-up bed is one of the cheapest ways to add a closet’s worth of storage to a small bedroom, which is why “ottoman” and “hydraulic storage” beds sell well online. The weak point is the lifting hardware. A deck that simply pivots near the headboard swings its mattress edge into the headboard and the wall, wears the upholstery, and needs a hard pull at the start of the lift before the gas springs take over. Some mechanisms also tend to swing past their intended open angle, or drop back unless the user holds them.

The solution

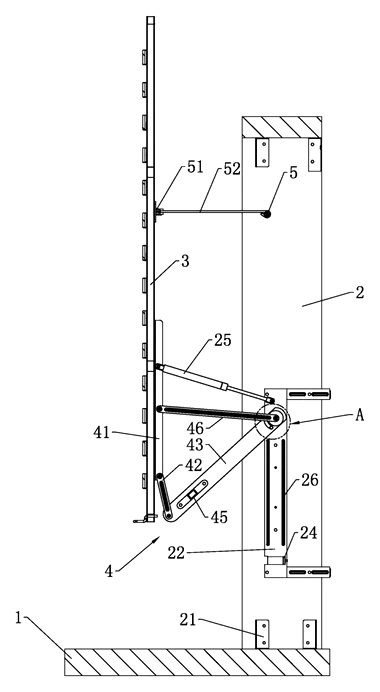

The patent puts a lifting assembly (4) on each long side of the bed frame instead of a plain hinge:

1. A first link (41) is bolted along the side of the bed board (3), so it moves with the deck.
2. A short second link (42), a long third link (43) and a fourth link (46) are hinged in sequence; the far end of the fourth link is hinged back onto the first link, closing the loop.
3. The third and fourth links share a pivot on a mounting bracket (22) that is bolted to the inside of the bed frame (2).
4. The third link is longer than the fourth, and the second link is the shortest of all. When the deck is fully raised, the fourth link stands vertical and leans away from the headboard (1) while the third link leans the opposite way, so the deck is held in balance.
5. A gas spring (25) between the bracket and the second link helps lift the deck and keeps it from falling.

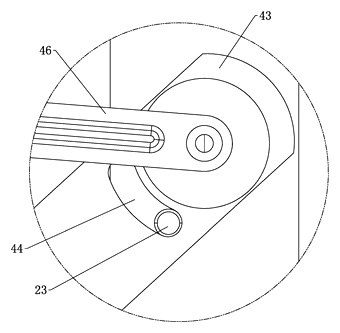

6. A waist-shaped slot (44) in the third link rides on a stop post (23) on the bracket to end the stroke; a support seat (24) carries the link when the bed is closed.

Who it is for

• Bedroom furniture brands adding a storage bed with a smoother lift and less headboard wear than basic pivot designs.
• Bed-lift hardware suppliers who sell gas-spring lift kits to furniture factories and want a linkage that controls the path, not only the force.
• Online mattress and platform-bed sellers looking for a storage model that ships flat and assembles with bolted brackets.
• Small-space and student-housing furnishers who need under-bed storage that one person can open safely.

How it works

The main parts

Using it

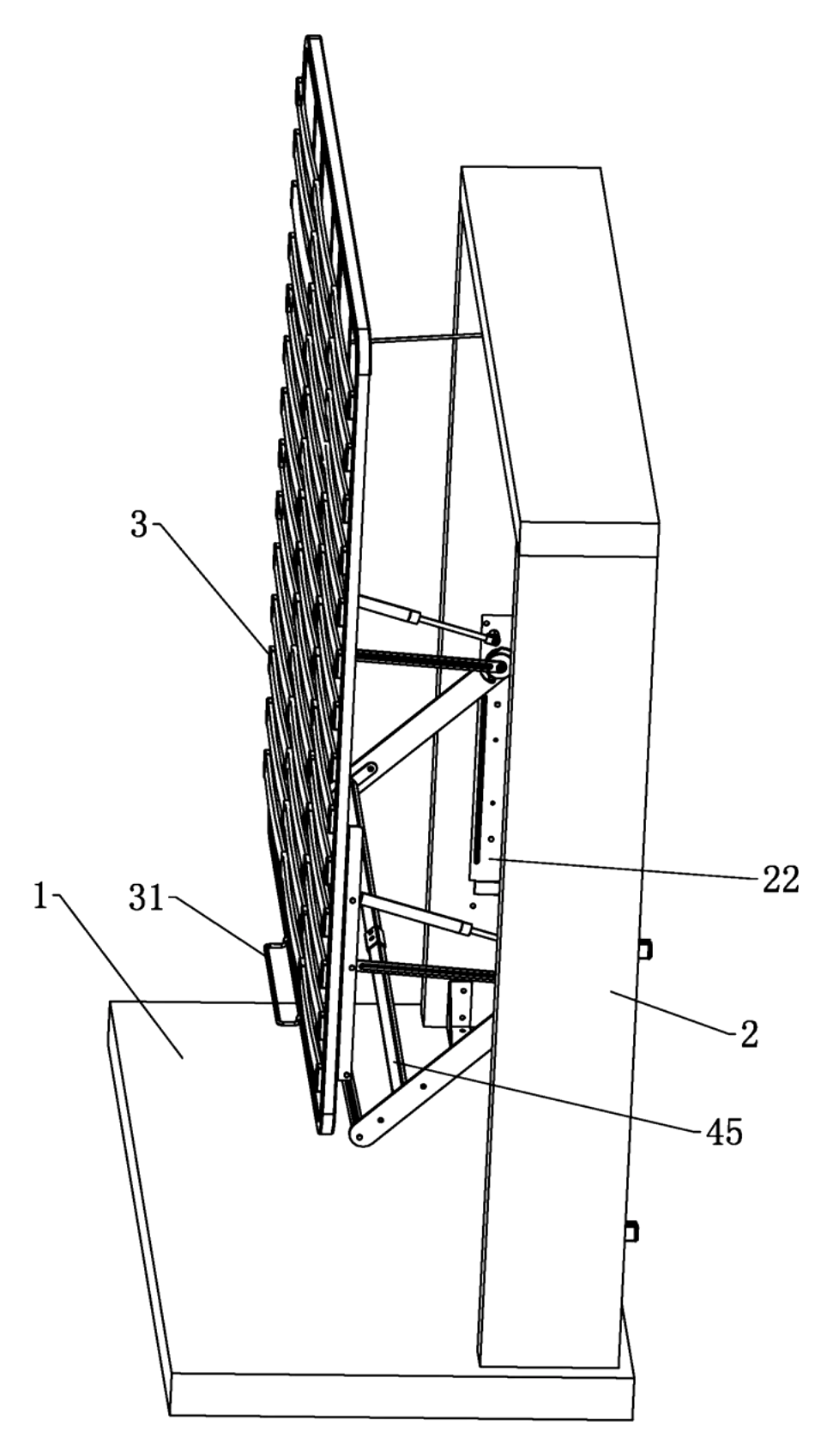

1. Pull the handle (31) at the head end upward and away from the headboard.
2. The first link drags the second link toward it, so the deck rises a little before it moves sideways.
3. As the second link rises it pulls the third link off its support seat; the third link turns about the bracket pivot and the deck lifts while sliding toward the foot end.
4. At full travel the stop post reaches the end of the slot and the opposing link angles hold the deck open; the gas springs carry the weight.
5. For loading, hook the prop rod (52) between the frame and the deck. To close, unhook it and push the deck down - the short fourth link stops the third link from over-rotating, so the deck returns cleanly.

Applications

Small bedrooms and city apartments

Where there is no room for a dresser, the whole footprint under the mattress becomes storage for seasonal clothes, bedding and luggage. Because the deck clears the headboard, the bed can sit tight against a wall.

Upholstered beds with tall headboards

Fabric and leather headboards are the first thing a pivoting deck damages. A linkage that moves the mattress away from the headboard protects the upholstery and the mattress cover.

Guest rooms and holiday rentals

Hosts store spare linens and cleaning supplies under the guest bed. A lift that stays open by itself lets housekeeping work with both hands.

Student and staff housing

Single and three-quarter beds with lift-up storage reduce the need for separate cabinets in shared rooms; the bolted brackets suit flat-pack delivery.

Retrofit lift kits

The linkage, bracket and gas spring can be sold as a hardware kit for furniture makers who build their own frames.

Where it is less suitable

• Very low-profile beds - the linkage and bracket need some depth inside the frame; slim platform beds may not have room.
• Side-opening designs - this mechanism lifts the deck from the head end; beds that should open from the side need a different layout.
