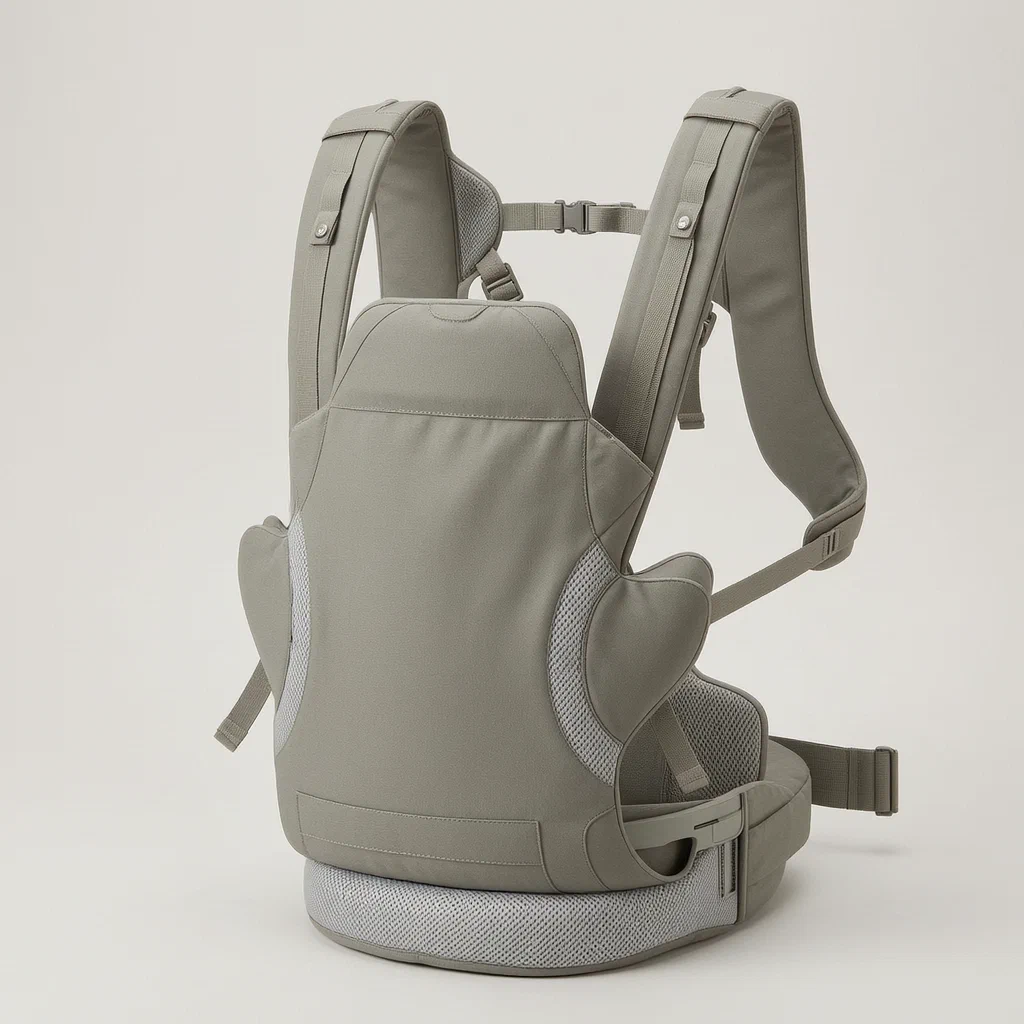

Baby Carrier with Load Dispersion and Adjustable Seat Width

The problem

Many baby carriers place excessive strain on the wearer’s shoulders, lower back, and abdomen because the load is concentrated at narrow points. When carrying infants of varying sizes or switching between front-carry and hip-carry positions, fixed-width seat cushions often fail to provide adequate leg support or cause uncomfortable pressure on the baby’s thighs. Additionally, standard strap configurations can lead to uneven weight distribution, accelerating fatigue for the parent during extended use.

The solution

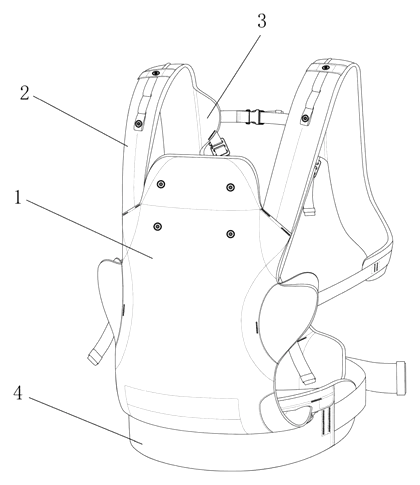

The patent describes a carrier structure that addresses these issues through three main mechanisms: increased surface area for load transfer, adjustable seat geometry, and modular strap connections.

1. A drum bag component is integrated into the carrier body to expand the contact area between the baby and the human body, helping to disperse gravity away from the waist and crotch toward the back and buttocks.
2. A waist pad attaches to the waist belt webbing using loops, providing additional cushioning and structural support. The inner side of this pad features three arc-shaped air guide grooves for ventilation.

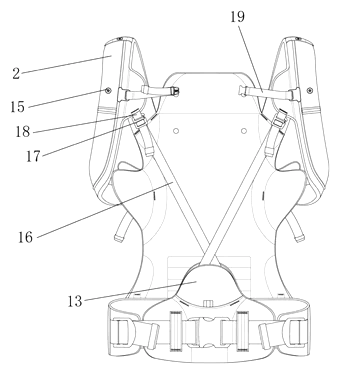

3. An X-shaped connecting belt links the lower part of the drum bag to the upper part of the waist pad using spring ladder buckles, securing the shoulder and waist systems together.
4. The seat cushion width is adjusted via a slide rail structure. A slide buckle moves along the rail, constrained by a line position on the rail cover, allowing the user to freely set the width to suit different babies or carrying methods.

Who it is for

• Baby gear brands seeking to differentiate their carriers with ergonomic load-dispersion features and adjustable sizing.
• Direct-to-consumer sellers targeting parents who struggle with back pain or need a single carrier that adapts to growing infants.
• Wholesalers looking for products with simple mechanical adjustments (slide rails) that reduce SKU complexity compared to multi-size models.
• Design studios interested in modular strap systems using snap buttons and spring ladder buckles for easy assembly.

How it works

The main parts

Operating steps

1. Attach the Waist Pad: Thread the waist belt webbing through the two loops on the waist pad and secure the pad to the lower part of the carrier body.
2. Connect Shoulder and Waist: Use the X-shaped connecting belts. Attach the upper spring ladder buckle to the first ear piece on the drum bag and the lower buckle to the second ear piece on the waist pad.
3. Adjust Seat Width: Locate the slide rail under the seat cushion. Move the slide buckle along the rail to widen or narrow the cushion opening. The line position on the rail cover limits the sliding distance to prevent detachment.
4. Secure Snap Buttons: Fasten the male button on the shoulder strap outer side to the female button on the drum bag outer side to stabilize the upper structure.
5. Wear and Distribute Load: Put on the carrier. The drum bag and waist pad work together to shift the baby’s weight from the abdomen and crotch to the wearer’s back and buttocks.

Applications

Front-facing infant carry

Parents can adjust the seat width to be narrower for newborns, ensuring proper leg positioning and M-shape support without excess fabric bunching.

Hip carry for toddlers

When switching to a hip-carry mode for older babies, widening the seat cushion provides a broader platform, reducing pressure points on the child’s thighs and improving stability.

Long-duration walks

The load dispersion design helps caregivers walk for longer periods by transferring weight to the stronger muscle groups of the back and buttocks, reducing shoulder fatigue.

Ventilation in warm climates

The arc-shaped air guide grooves in the waist pad allow airflow between the parent’s skin and the carrier, reducing heat buildup during summer outings.

Where it is less suitable

• Newborn-only specialists: Brands focusing exclusively on tiny preemies may find the adjustable width range too broad or complex for single-use scenarios.
• Ultra-lightweight minimalist carriers: The added structure of the drum bag and waist pad increases overall weight compared to simple sling designs.
• Hard-shell structured carriers: This soft-structure approach is not compatible with rigid frame backpack-style hiking carriers.
