Portable Rotatable Hair Dryer with Battery and Folding Handle

The problem

Travel hair dryers usually fold at a simple hinge. That hinge creates a thick joint that does not lie flat, so the folded unit still bulges inside a suitcase or gym bag. Corded models add another tangle to pack, and many folding mechanisms loosen over time, letting the barrel wobble during use. Buyers who travel frequently or work out daily need a dryer that packs as small as possible without giving up airflow or heat.

The solution

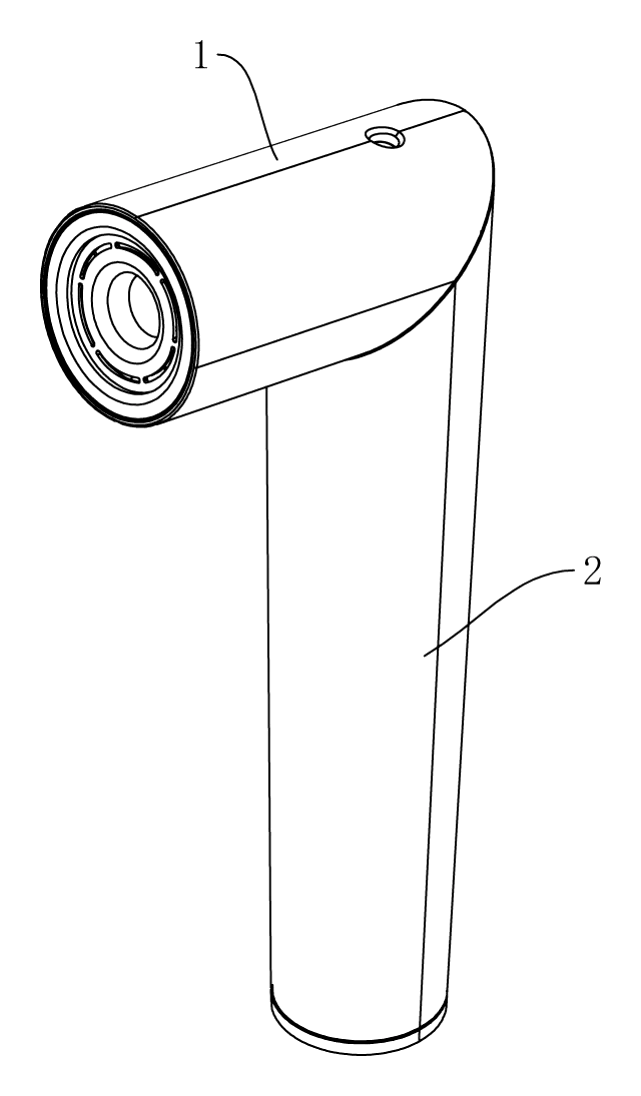

This design solves the packing problem by replacing the hinge with two identical inclined planes. One plane is molded onto the end face of the air-blowing barrel, and the matching plane sits on the end face of the handle. A convex ring on one face fits into a rotating hole on the other, allowing the barrel to turn around the axis of the incline. Because the angles match, rotating the barrel swings it from a right-angle working position into full alignment with the handle, forming a single straight line. A locking block inside the handle clicks into one of two grooves on the convex ring to hold the barrel firmly in either shape. Power comes from a battery housed in the handle, removing the cord completely.

Who it is for

• Consumer electronics brands expanding their personal-care lines with a compact, cordless dryer for retail and e-commerce channels.
• Amazon sellers and private-label importers looking for a differentiated travel appliance that photographs well in its straight-folded form.
• Hotel and hospitality procurement teams sourcing cordless dryers for guest rooms where wall outlets are limited or cords present a tripping concern.
• Promotional product distributors supplying branded travel accessories to corporate clients, gyms or airlines.

How it works

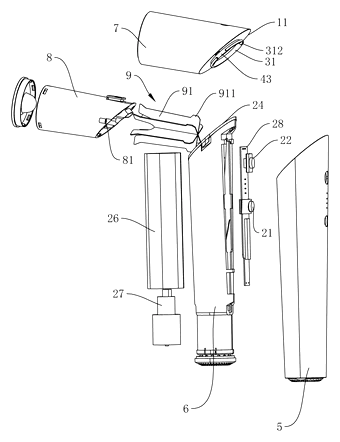

The main parts

Operating steps

1. Unfold the barrel - pull the air-blowing barrel away from the straight position; the first arc guide surface (411) on the locking block pushes the block out of the second locking groove (43), allowing the convex ring (31) to turn inside the rotating hole (32).
2. Lock in working position - continue rotating until the barrel reaches the right angle; the locking block snaps into the first locking groove (42), holding the bent shape. A limiting block (312) on the convex ring meets a resisting block (25) inside the handle to prevent over-rotation.
3. Turn on - press the switch to run the motor (26) and energize the heating sheets (91) via the circuit board (28) and battery (27). Air passes over the heating frame (9) and exits the barrel.
4. Fold for storage - after cooling, push the barrel back toward the handle; the second arc guide surface (412) releases the locking block from the first groove, the barrel rotates along the inclined planes until it aligns with the handle, and the block clicks into the second locking groove (43).

Applications

Business travel

Frequent flyers need a dryer that fits in a laptop bag alongside chargers and documents. The straight-folded shape slides into narrow compartments, and the built-in battery means no searching for a bathroom outlet near the mirror.

Gym and fitness bags

After a workout, users want to dry hair quickly before leaving the locker room. A cordless, compact dryer avoids tangling with shoes and water bottles in a duffel bag, and the locking mechanism keeps it rigid during use even when handled quickly.

Hotel guest rooms

Boutique hotels and serviced apartments can place a cordless dryer in the room drawer instead of mounting a corded unit on the wall. The linear profile stores neatly, and guests cannot trip over a cord stretched across the bathroom floor.

Camping and outdoor trips

Campers using battery-powered setups appreciate appliances that do not rely on grid electricity. The dryer runs off its internal battery, and the straight shape packs efficiently into a hiking backpack alongside other cylindrical gear.

Dorm rooms and shared spaces

Students in dormitories often share limited outlets. A battery-operated dryer frees the socket for laptops or phones, and the small folded footprint leaves more desk space available.

Where it is less suitable

• Professional salon styling - salons require continuous high-wattage airflow that exceeds typical battery capacity, so corded professional dryers remain the standard.
• Wall-mounted public restrooms - fixed, hardwired hand or hair dryers are preferred in high-traffic public washrooms to prevent loss or theft.
• Heavy-duty industrial drying - this appliance is designed for personal hair care, not for drying materials or equipment.
