Wrist-Mounted Umbrella Stabilizer

Holding an umbrella steady is hard for anyone with a weak grip or a tremor. This holder straps to the wrist and hand, so the forearm carries the umbrella instead of the fingers. The umbrella clips into a holder joined to the strap by an anti-shake link. Open, it stands upright in front of the forearm; closed, it slides around a curved track and hangs below the arm, so the hands stay free.

  • China utility model - lapsed
  • No filings outside China
  • Assistive daily-living aid
  • Straps, molded parts, spring link
Request a Quote How it works →

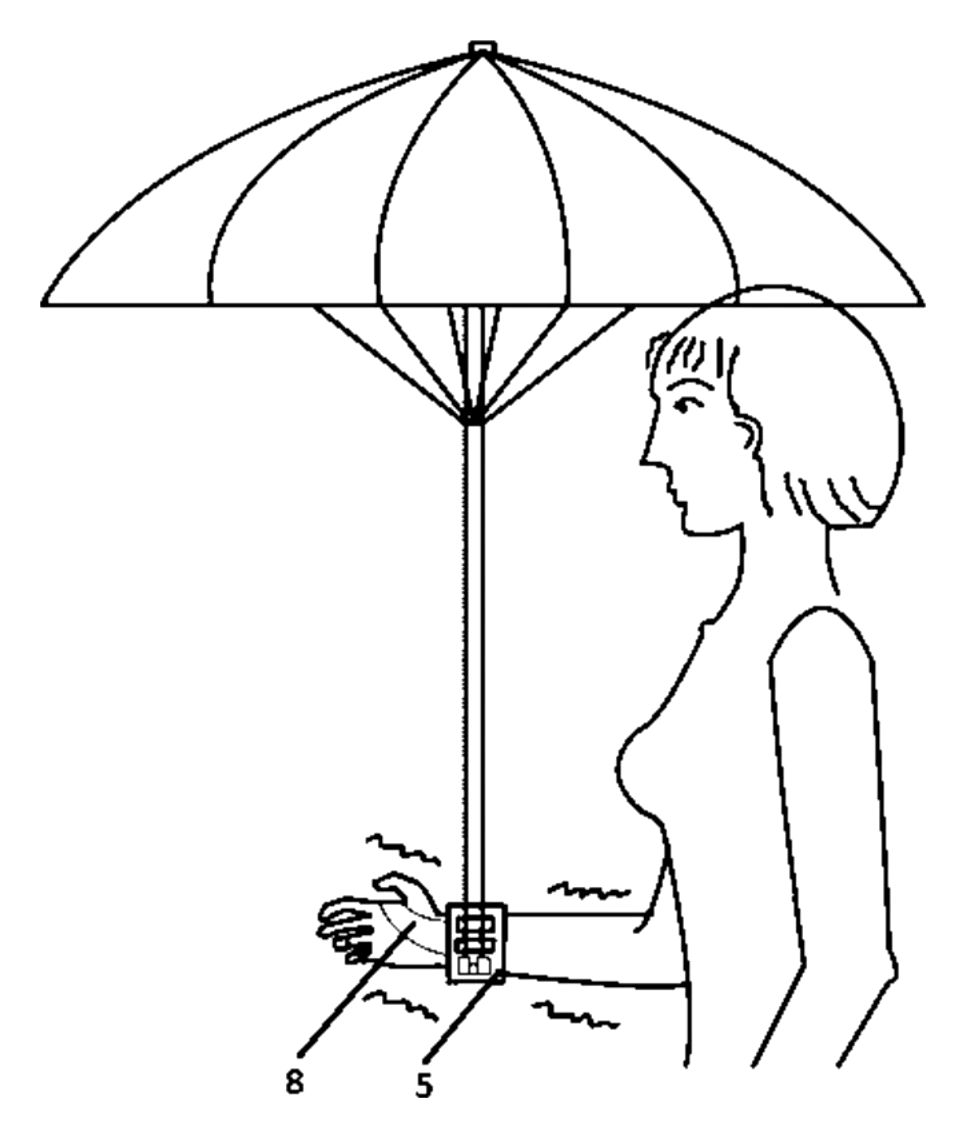

Wrist-Mounted Umbrella Stabilizer - patent drawing

✋

Arm carries the umbrella

A wrist strap and palm loop hold the device, so the forearm - not the grip - supports the umbrella.

〰️

Anti-shake link

According to the patent, a damping link between strap and umbrella reduces shaking passed to the handle.

🔁

Slides when closed

Release the catch and the closed umbrella slides around a curved track to hang below the arm.

🔒

Locks in both positions

A push-button catch holds it upright when open; a strap buckle holds it below the arm when closed.

🔥 Popularity – views

Bring this product to market

  1. ✓ Patent vetted China-only family and legal status checked
  2. 2 Product brief · now How it works, uses and options written up
  3. 3 Prototype First samples for buyers to review
  4. 4 Pilot run Small first batch for launch customers
  5. 5 Volume production Repeat orders at scale

Buyer interest

– of 100 buyers needed to start prototyping

or request a quote Share to speed it up:

One click, no sign-up. Each vote is one real visitor, and products with the most interest go to prototyping first.

Build team: no members yet. Need a partner, co-funding or skills to build this? Join and we introduce the team once it forms.

Join the build team

Want to develop this product with others? Tell us what you can bring. When the team has enough people, we introduce the members to each other by email.

I can help with (pick any)

Letters only. The team list on this page shows your country and the first 5 letters of your name (e.g. "Micha**"); leave the name blank to appear as "Anonymous".

No money is collected on this site. IP2M does not hold or manage funds, and pledges are non-binding. We email you a link to confirm; only confirmed members are introduced to each other. See our privacy policy.

The problem

An umbrella is held at arm’s length, in the fingers, often in wind. For people with weak grip strength or a tremor, it shakes, tilts and can slip out of the hand. According to the patent, the device was designed for people with Parkinson’s disease, whose resting tremor and muscle weakness in the arms make it hard to hold an umbrella on their own.

The solution

The patent moves the load from the fingers to the forearm:

  1. A stabilizer body is worn on the arm: an adjustable wrist strap (7), a palm loop (8) and a curved track (5) that runs around the forearm.
  2. The umbrella is fixed to an umbrella holder: a mounting plate (1) with a grip clip (2) for the umbrella handle (02) and shaft straps (3) around the shaft (03).
  3. Between the two sits an anti-shake device (4). The patent describes it as reducing the vibration passed from the user’s arm to the umbrella handle, and refers to the anti-tremor structures used in special spoons for Parkinson’s patients.
  4. The anti-shake device slides along the track. When the umbrella is open, a push-button catch (6) locks it on the inner side of the forearm, so the umbrella stands upright.
  5. When the umbrella is closed, press the button: the umbrella slides around the track and hangs below the arm, where a strap buckle (10) holds it. The hands are free and the umbrella cannot be dropped.
Wrist-Mounted Umbrella Stabilizer - Patent drawing - stabilizer with the umbrella open
Patent figure 1 - the stabilizer in the open-umbrella position: holder (1-3), anti-shake device (4), track (5), catch (6), wrist strap (7), palm loop (8), buckles (9) and the closed-position buckle (10).

Who it is for

  • Assistive-living and home-health brands with ranges of daily-living aids.
  • Medical supply distributors and pharmacies selling mobility and independence products.
  • Senior-living and rehabilitation suppliers - also useful as a general hands-free umbrella holder for anyone with weak grip.

How it works

The main parts

Wrist-Mounted Umbrella Stabilizer - Patent drawing - umbrella holder
Patent figure 4 - the umbrella holder: mounting plate (1), grip clip (2) on the umbrella handle (02) and shaft straps (3) around the shaft (03).
No.PartWhat it does
7Wrist strapElastic, adjustable length, closes with buckles (9).
8Palm loopEndless strap around the base of the thumb; steadies the device.
5TrackCurved rail around the forearm.
4Anti-shake deviceSlides on the track and carries the umbrella holder; the patent describes it as damping shaking.
6First lockMetal catch with a push button; lets the device slide up one way and locks it on the inner forearm.
10Second lockStrap buckle that holds the device on the back of the arm when the umbrella is closed.
1Mounting plateBase of the umbrella holder.
2Grip clipThe umbrella handle (02) pushes in and is held.
3Shaft strapsTwo straps that tie the umbrella shaft (03); their slots line up with the clip.

Opening the umbrella

Wrist-Mounted Umbrella Stabilizer - Patent drawing - wrist strap, palm loop and track
Patent figure 5 - how the wrist strap (7), palm loop (8) and track (5) fit together.
  1. Put on the wrist strap (7) and palm loop (8) and adjust the length.
  2. Clip the umbrella handle into the grip clip (2) and tie the shaft straps (3).
  3. Slide the anti-shake device up the track to the inner side of the forearm; the catch (6) clicks and holds it.
  4. Open the umbrella - it stands upright in front of the bent forearm.

Closing and carrying

Wrist-Mounted Umbrella Stabilizer - Patent drawing - carrying the closed umbrella
Patent figure 7 - the closed umbrella hanging below the arm.
  1. Close the umbrella.
  2. Press the button on the catch (6). The umbrella’s weight lets it slide around the track (5) to below the arm.
  3. Fasten the strap buckle (10). The umbrella hangs from the arm - the hands are free.

Applications

Daily-living aids for people with tremor

According to the patent, the main users are people with Parkinson’s disease who want to use an umbrella independently.

Seniors and people with weak grip

A hands-light way to hold an umbrella for anyone who finds gripping tiring.

Walking-aid users

Someone using a cane in one hand can carry an umbrella without gripping it.

Rehabilitation and care facilities

Part of a kit of independence aids for residents and patients.

Hands-free outdoor use

Parents with strollers, dog walkers and delivery workers who need a free hand.

Where it is less suitable

  • Strong wind - a forearm-mounted umbrella still catches the wind; a release that lets go under heavy load should be considered.
  • Large golf umbrellas - size and weight must suit the strap and holder.

Frequently asked questions

How is it worn?

An adjustable wrist strap and a loop around the base of the thumb hold it on the forearm. The umbrella clips into a holder, so the arm carries it instead of the fingers.

Does it stop shaking?

According to the patent, the anti-shake device between the strap and the umbrella reduces the vibration passed from the arm to the umbrella handle. The patent gives no test results; any performance claim needs testing by the brand that sells it.

Who was it designed for?

The patent describes it as designed for people with Parkinson’s disease who have a resting tremor and weak arm muscles. It can also be positioned as a general hands-free umbrella holder.

What happens when the umbrella is closed?

Press the button on the catch and the umbrella slides around the track to hang below the arm, where a strap buckle holds it. The hands are free.

Is it a medical device in the US?

If it is marketed for a medical condition, most likely yes. The brand owner confirms the FDA classification and registration; the factory registers with the FDA too. Marketed as a general umbrella holder, it is a consumer product.

Can it be supplied with an umbrella?

Yes - as a holder alone or as a set with a light, matched umbrella.

Can this design be made and sold in the US?

The patent was filed only in China and has lapsed, so it does not restrict anyone. Other umbrella-holder designs may be patented - see Patent & Production - so we recommend a freedom-to-operate check before volume production.

Are you affiliated with the patent owner?

No. IP2M is an independent design and manufacturing service working from the public patent document.

Request a quote

Click Request a Quote below to see our email address - copy it, or open your email app with a ready-made message. Please mention patent CN212545964U in the subject.

Helpful details to include:

  • Your company and sales channel (assistive-living, medical supply, pharmacy, retail…)
  • Positioning - consumer umbrella holder or medical/assistive device
  • Strap sizes and umbrella set or holder only
  • Colors, branding and packaging
  • Estimated quantity and target price
  • Timeline - when you would like samples and the first shipment

You can also reach us at (332) 203-9997.
